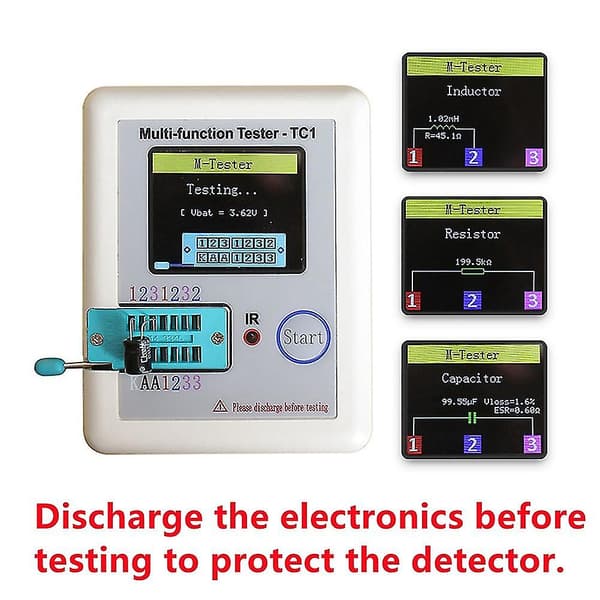

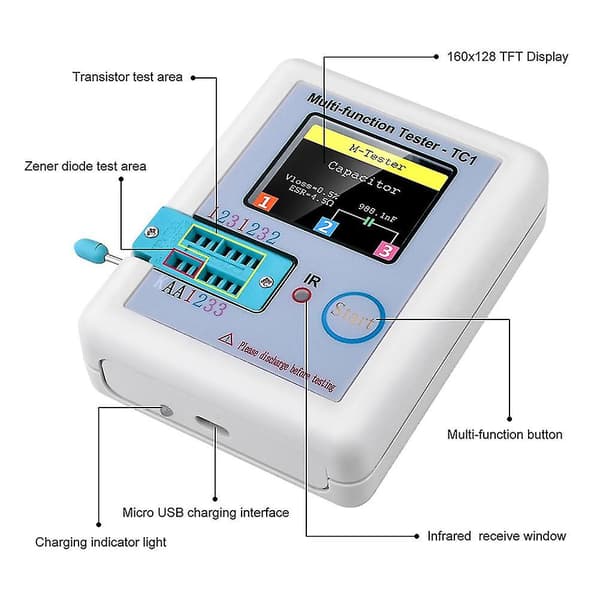

Can be widely used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, thyristors, batteries, etc. Zener diodes can also be detected and have a functional self-calibration. After the detection is complete, point the infrared remote control at the \"IR\" light and then press the button on the remote control. If the detector decodes successfully, the data code and the infrared waveform will be displayed. One-button operation, automatic detection and shutdown, you can also press the multi-function button to turn off the detector. Place the component pins in the corresponding area, turn the small handle, the detector will automatically detect, and the final result will be clearly displayed on the backlit TFT screen. Instead of the usual display, this detector will show the results in color. Power mode: Rechargeable lithium battery Display: 3.5 x 3 cm TFT screen Diode range: Less than 4.5V Zener diode: transistor detection range: 0.01-4.5V Zener diode detection range: 0.01-30V Triac range: Less than 6mA Capacitance: 25pF-100mF Resistance: 0.01-50M Inductance: 0.01mH-20H Battery: 0.1-4.5V Product chip: : ELECTRICAL AC voltage: multimeter Display type: Digital display : 3.7V AC current: MOSFET DC current: ESR Operating mode: Handheld Model number: LCR-TC1 Dimensions: 70 x 90 x 28MM Operating temperature: 0 - 40 color:Photo color Material:plastic Package contents: 1 x TFT Transistor Tester 1 x Electronic components set 1 x USB cable 3 x Test hook Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
