【Strong & Safe to Use】The electric magnetic lock is mainly made of carbon steel material, the latch can withstand 150kg of pulling force.
【Excellent Function】It is energy-saving and has a long service life. Shockproof, anti-lever, and anti-theft. Built-in unlock status detection.
【Compact and Easy Installation】The product is small in size, easy to install, no left, right, front, back limitation, and allows mechanical lash-up unlocking position.
【Self-elastic Design】Adjustable elasticity, suitable for doors weighing 0.5~4 kg.
【Wide Range of Applications】The electronic lock is suitable for centralized control centers such as cabinets, mailboxes, lockers, logistics cabinets, filing cabinets, meters, cupboards, vending machines, mobile cabinets, shoe cabinets, etc. Widely used in schools, community logistics, hotels, factories, bath centers, banks, supermarkets, and other places.
Electromagnetic lock is a mechanical lock controlled by a relay. The lock works when the circuits are disconnected, and it unlocks when power is applied.
Specifications:
Main Material: Carbon steel
Surface Treatment: Plated electrophoretic paint (neutral frog experiment over 500 hours)

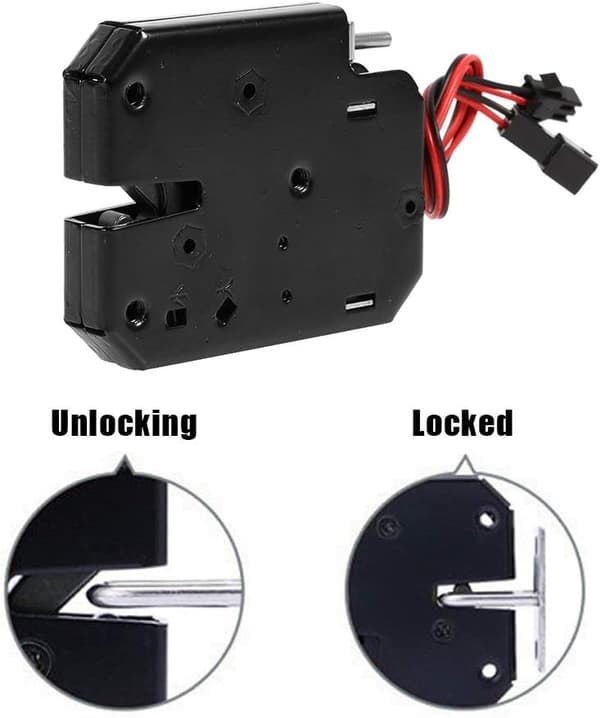

Working Mode: Independent type (Power off and close the door - Locked; Power on - Unlocked)
Electrical Parameters: DC 12V 2A
Mechanical Life: Under design load conditions, approximately 500,000 times
Electromagnet Life: Under rated working conditions, more than 1,000,000 times
Latch Strength: 150 kg force (no permanent deformation)
Ambient Temperature: -40℃~60℃

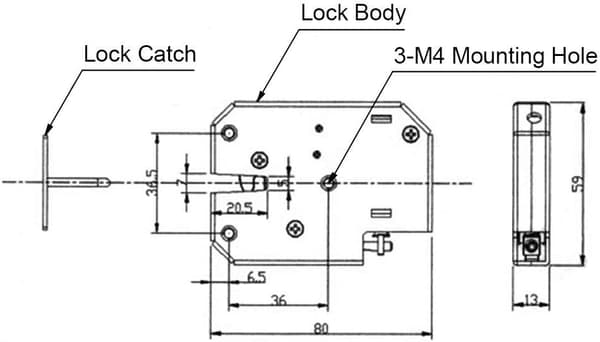

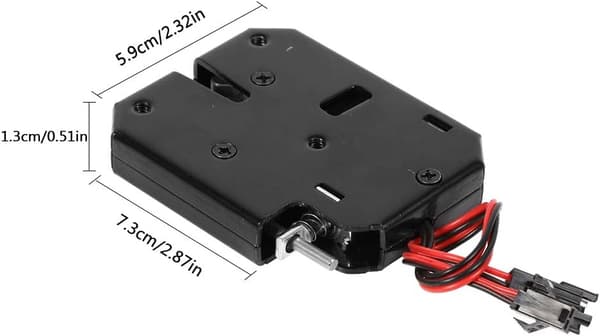

Size: Approx 5.9 x 7.3 x 1.3 cm / 2.32 x 2.87 x 0.51 inches
Package Weight: 170g
Package Included:
1 x Electric Lock (with detection switch)
