1. Strong reception: Our wireless terminals are easy to use, have strong signal reception, clear call settings, long service life, and stable performance. 2. Function: Use GSM 3G, WCDMA 4G LTE network to operate. By using this terminal to connect to a regular landline phone and a standard SIM card, you can make local, national, and international calls. 3. Reverse polarity signal: Do not change the original dialing habits, similar to ordinary landline phones, with reverse polarity signal, can be connected to the meter or use the computer meter. 4. Easy to install: No need to invest in landlines, use SIM cards for GSM mobile phones, easy to install, does not take too much time. 5. Wide application: Widely used in remote villages, mountainous areas, houses with weak signals, public telephone booths, offices, telemarketing, ships, trains, and other mobile locations.
Item Type: GSM Fixed Wireless Terminal
Material: ABS
Voltage: 100-240V
Product size: Length x width approx. 15.5 x 10 cm / 6.1 x 3.9 inches (manual measurement, there will be 0-1 cm error)
SIM card: No need to invest in landline, use SIM card for GSM mobile phone. Easy to install
Support business: Support international and domestic, local, fixed, mobile voice services
Operating habits: Do not change the original dialing habits, same as ordinary landline phones
Reverse polarity signal: with reverse polarity signal, can be connected to the meter or use the computer meter
Automatic detection: Built-in Watchdog Duty Circuit. Automatic detection of equipment operating status, automatic restart in case of failure
Delivery mode: DTMF transmission mode, Call ID 0 Error
Standard communication voltage: Standard communication voltage, which can be connected to the subscriber exchange (PABX)
Function: Fully automatic IP function, multiple sets of IP settings
IP prefix: The dialing IP prefix is automatically inserted with a fixed fee, such as 17951, 17911, 193, etc.
Post: Various authorization settings for the called party, such as international, domestic, and local calls
Standard: Standing Right Number, Local Number Sewing and Forbidden Number or Number Sewing
Encryption settings: Encryption settings, such as PIN code, PUK code Encryption machine Card lock function

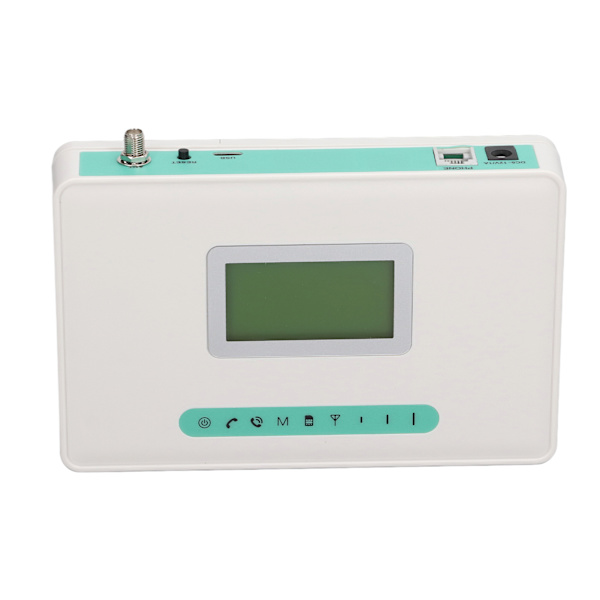

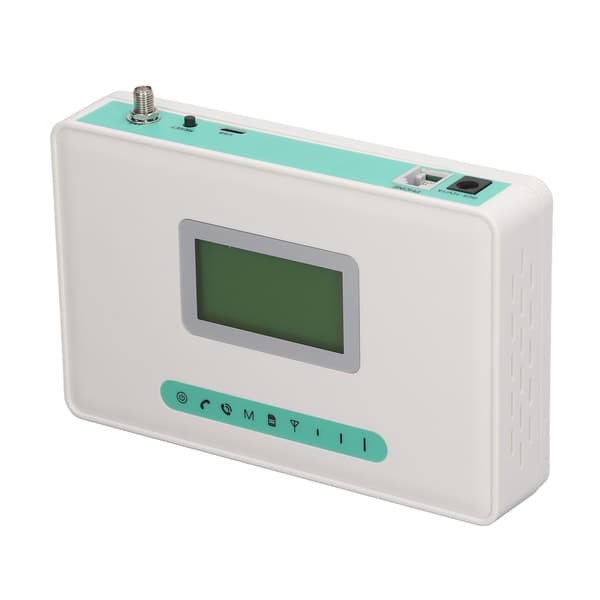

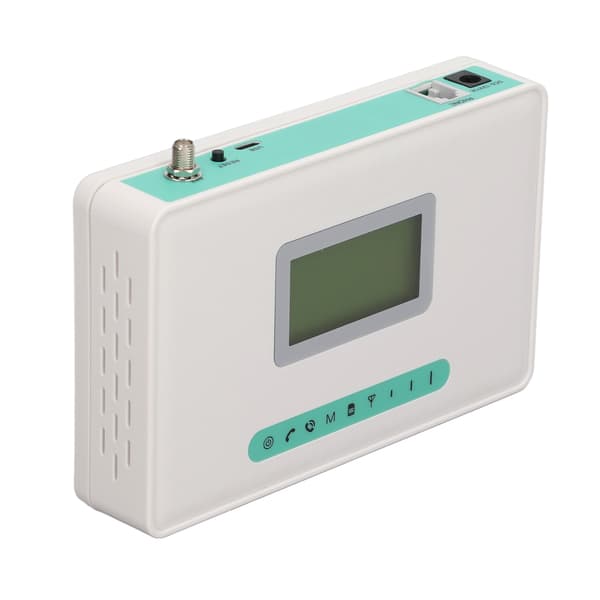

LED lights: LED lights show information such as signal, standby, working status, etc.
Caller presentation: Yes
License Form: RJ11
Network support: LTE FDD: B1 B2 B3 B4 B7 B8 B28, LTE TDD B40, WCDMA B1 B2 B5, B8GSM B2 B3 B5 B8
Visual function: No
Scope of application: Wireless access, Security
Number storage function: Yes
Recording function: No
Network parameters GSM: 1900 1800 900 850m
Signal sensitivity: <-104dbm
Transmission power: <2W
Antenna power: > 1.5 dB
Power: 5v 1a
Unit current: <5W
RJ11 Standby voltage: DC 40 to 48V
RJ11 Working voltage: DC 8 to 12V
RJ11 DIAL SOUND FREQUENCY: 450hz
RJ11 supply current: 20mA to 40mA
RJ11 Reverse Polarity: Support
RJ11 Call system: DTMF
Working environment temperature: -20 ℃ to 50 ℃
Relative humidity in working environment: Humidity 10 to 90 %

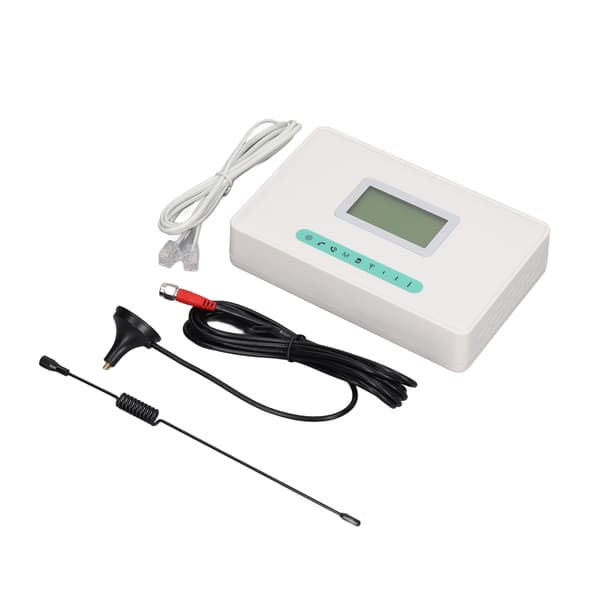

1 x Fixed terminal host
1 x Power plug
1 x Antenna cable
1 x Antenna receiver
1 x Telephone
