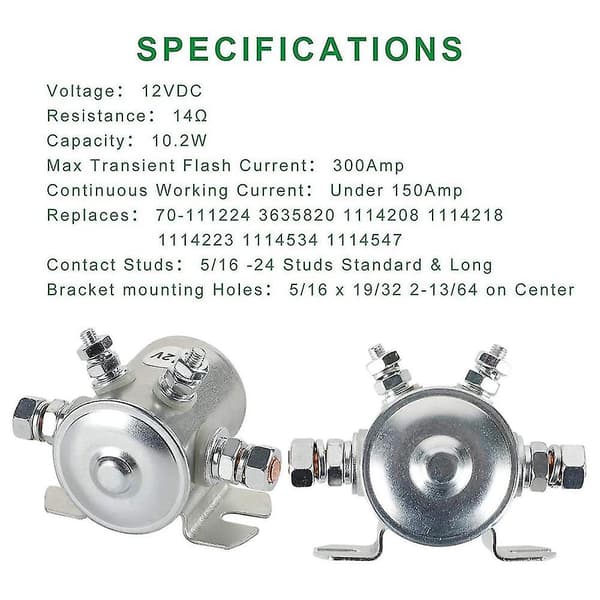

Circuit Features - Single pole single throw with 2 silver contacts.
Resistance is 14, capacity is 10.2W, 12V DC.
HIGH QUALITY - Copper wire temperature resistance: 180.

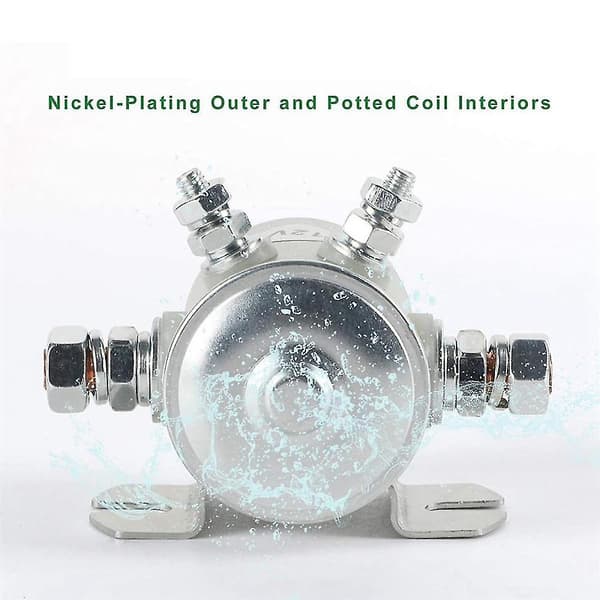

The casing is nickel-plated, meets environmental plating requirements and prevents rust, shiny FITMENT - 300A Continuous Duty Solenoid Relay, nickel-plated for golf carts, winches, marine use REPLACES - 70-111224, 3635820, 1114208, 1114218, 1114223, 1114534, 1114547.
1.
The product meets OC / t695-2002 relay standard 2.
There are no missing parts and the fasteners are not loose; 3. Voltage: 12 0.48v 4. Circuit features: single pole single throw 5. Coil parameters: wire diameter: 0.
4, number of turns: 1200, temperature resistance: 180 6. 12V: starting voltage Less than 8V, release voltage Less than 2.5V 7. Coil resistance value test: 12V resistance value = 10.
5Q 5% (20) 8. White zinc plating on the casing, 8 thick, 48 hours salt spray 9. Insulation resistance: the sine wave voltage is 550V and the test lasts for 1 minute.
The insulation will not break down 10. Operating temperature range (- 30 - + 85) degrees 11.
Relative humidity less than 90% 12. Contact load current 300A, duration 3S; contact voltage drop less than or equal to 0.2V (20A) 13.
Maximum instantaneous current 600A (within 3 seconds) 14.
Coil skeleton 30% reinforced flame retardant nylon 15.
Relay durability is tested more than 80000 times when switched on alone Material: metal color: silver Package contents: 1 x Solenoid relay with accessories Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing.
The allowed measurement error is +/- 1-3cm.
