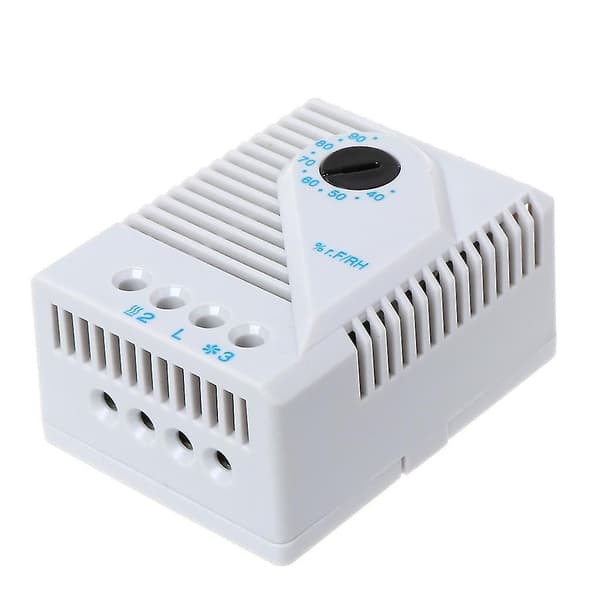

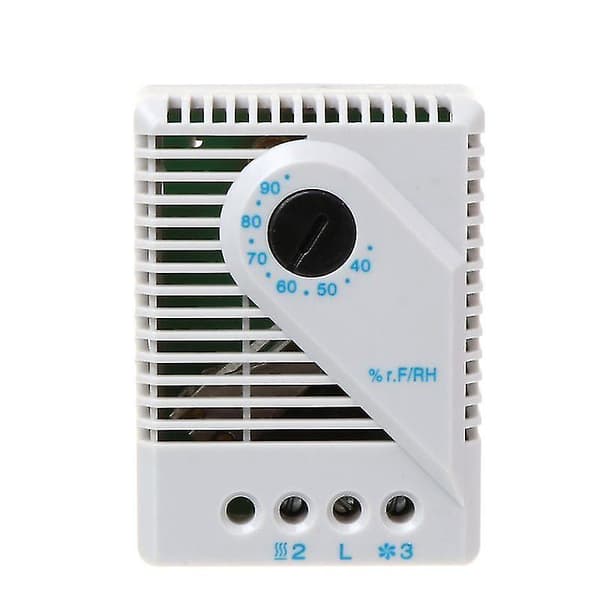

The MRF012 electromechanical hygrostat is designed to control enclosure heaters, raising the dew point when the relative humidity exceeds a critical level of 65%. This effectively prevents condensation and corrosion.


Specifications:

Switching difference: 4% RH (3% tolerance)

Permissible airspeed: 15 m/sec

Contact type: change-over contact

Contact resistance: 100,000 cycles

Min. switching capacity: 20 V AC/DC 100 mA

Max. switching capacity: 250 VAC, 5 (1) A DC 20 W

EMC: according to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3

Connection: 3-pole terminal for 2.5 mm2;, clamping strength 0.5 Nm max.: rigid wire 2.5 mm2;, multi-strand wire (with wire end sleeve) 1.5 mm2;

Mounting: clip for 35 mm DIN rail, EN50022

Housing: plastic according to UL94 V-0, light grey

Dimensions: 67 x 50 x 38 mm

Mounting position: variable

Operating/storage temperature: 0 to +60 °C (+32 to +140 °F) / -20 to +80 °C (-4 to +176 °F)

Protection type: IP20


Note:

Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

Please allow 1-3mm slight deviation due to manual measurement. Thank you





Package content:

1 pc Humidity Controller
