Features:\r

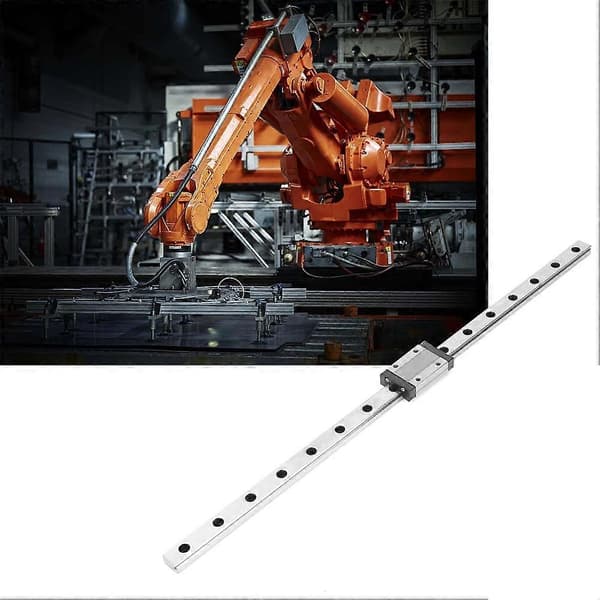

This linear rail and block are small in size and lightweight, especially suitable for small equipment.\r
With 4-point contact design, it can bear load from every direction and has good strength and high accuracy.\r
Designed with ball retainer, which allows interchangeability in the case of allowed precision.\r
The slide block is designed with a mini holding steel wire, and the steel ball will not fall off if you take down the slide block.\r
\r
Widely used for automatic equipment, precision measuring equipment, and many other machines that need precision linear movement.\r
\r
\r
Specification:\r
Model: MGN12H\r
\r
Type: Slide rail\r
Slide track: Linear rail\r
Length: 250mm / 9.8in, 300mm / 11.8in, 350mm / 13.8in, 400mm / 15.7in, 450mm / 17.7in, 500mm / 19.7in, 550mm / 21.7in (Optional)\r
Width: 12mm / 0.5in\r
Material: Bearing steel\r
Precision class: H\r
Block fixing method: Locked\r
Weight: 217 ~ 416 g / 7.7 ~ 14.7 oz (approx.)\r
\r
\r
Package list:\r
1 * Linear guide rail\r
1 * Linear guide block
