This switch features a PIR infrared motion detector, which can be used in corridors, bathrooms, basements, warehouses, garages, and other places to achieve electrical automatic control functions. With high and stable sensitivity, it effectively saves energy and money for you.

Features:

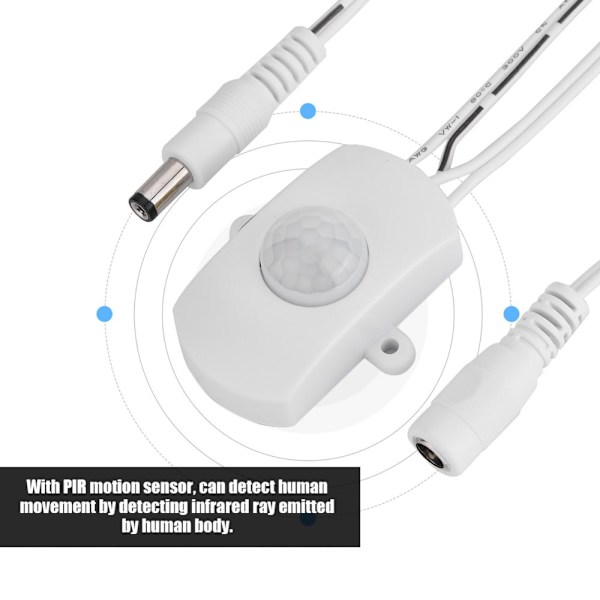

- The PIR motion sensor can detect human movement by detecting the infrared ray emitted by the human body.
- It has a 120-degree cone angle detection range and a detection distance of up to 5-7m, ensuring high and stable sensitivity for improved energy efficiency.

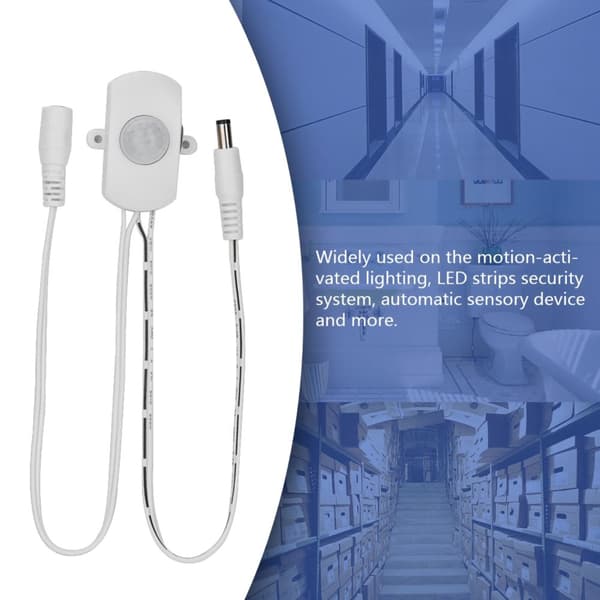

- Widely used in motion-activated lighting, LED strip security systems, automatic sensory devices, and more.
- It offers an adjustable delay range of 15-240 seconds, allowing you to choose a suitable time for your needs.
- The output voltage is equal to the input voltage, resulting in low power consumption.
- Its mini and compact design allows for easy installation without destroying home decoration.

Specifications:
- Color: White, black (optional)
- Operating voltage: 6V-24VDC (wide voltage)
- Working temperature: -20 °C ~ +38 °C
- Quiescent current: < 50uA
- Output current: 5A
- Trigger mode: Continuous trigger
- Output mode: Inductive output
- Delay range: Default setting 15S (15-240 seconds adjustable)
- Induction mode: Passive
- Sensing angle: 120-degree cone angle
- Sensing distance: 5-7m
- Size: 50x40x22.5 mm/1.97x1.57x0.87 inch

Package list:
- 1 x PIR Motion Sensor Switch
- 1 x screw
