Description

Series: Mini SAS

Wire size: 30AWG, tinned copper, OD: 0. 9x2.3,MM

Latching to mating part: With latch

Plating: Au 30u min over Ni 100u min

Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0

Applications:

Data/Communication

RAID (Redundant Array of Independent Disks)

Workstations

Rack-mounted server

Servers

Storage rack

Transfer rate 12gbps.

Specification meets SAS 4.0.

Technical performance

Mating and unmating force

Condition: EIA 364-13. Insert and extract at a rate of 25 mm/minute.

Mating: 55 N maximum for Mini SAS.

Unmating: 49 N maximum for Mini SAS.

Mating: 45 N maximum for SATA connector.

Unmating: 10 N maximum for SATA connector.

Electrical performance:

Contact current rating - 0.5 amps maximum per pin when mated.

Voltage rating - 30vac for contact when mated or unmated.

Contact resistance - 30mohm Max. Initial, 15mohm maximum after stress test.

Dielectric withstand voltage - 500 vac for 1 minute without breakdown.

Insulation resistance - 1000 mohm minimum.

Signal integrity:

Mated connector impedance: 100 ohm ± 15%

Absolute cable impedance: 100 ohm ± 10%

Pair cable matching: ± 5 ohm

Common Mode Impedance: 25 to 40 ohm

Insertion loss: -6 DB maximum up to 4.5 GHz

Crosstalk: -26 DB up to 6 GHz

Color: As shown

Material: Plastic+ Braided wire

Cable length: 1m/0.5m



Package contents:

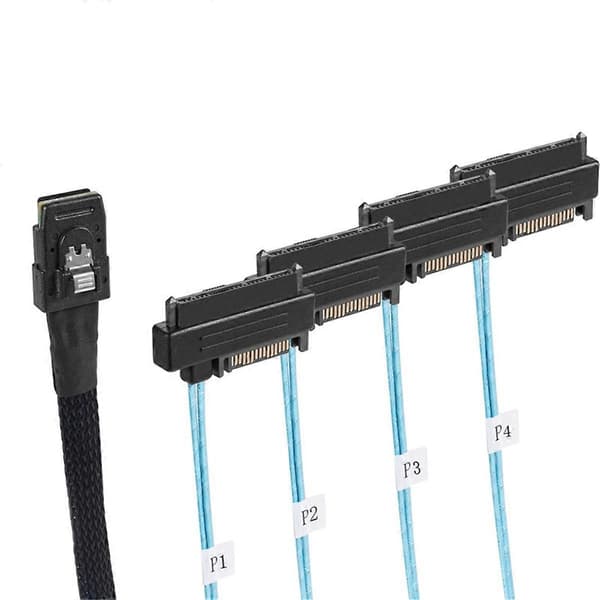

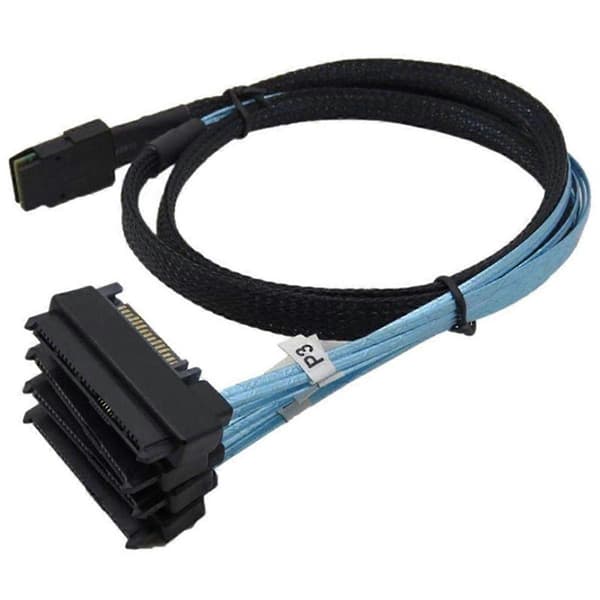

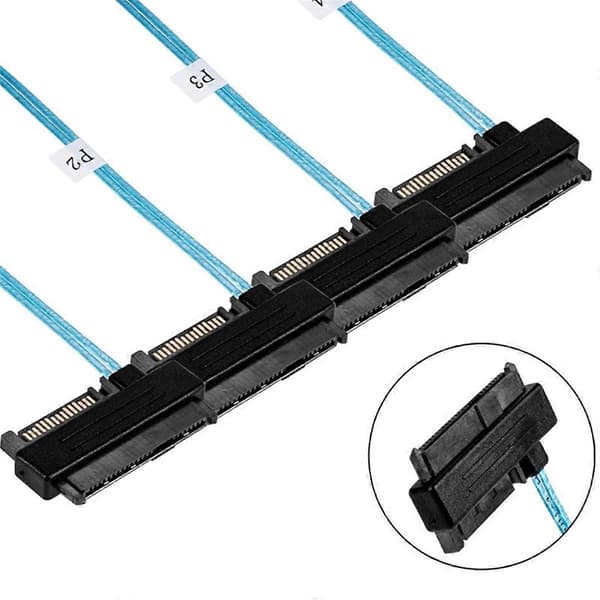

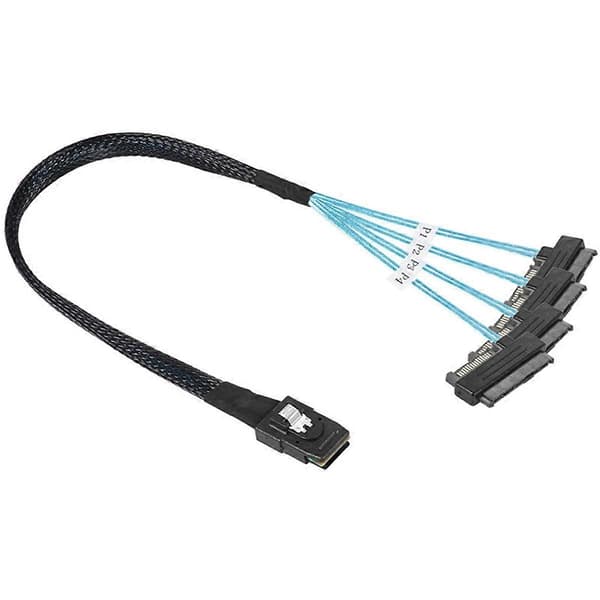

1 * Mini Sas Sff-8087 to 4 Sff-8482 Cable

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
