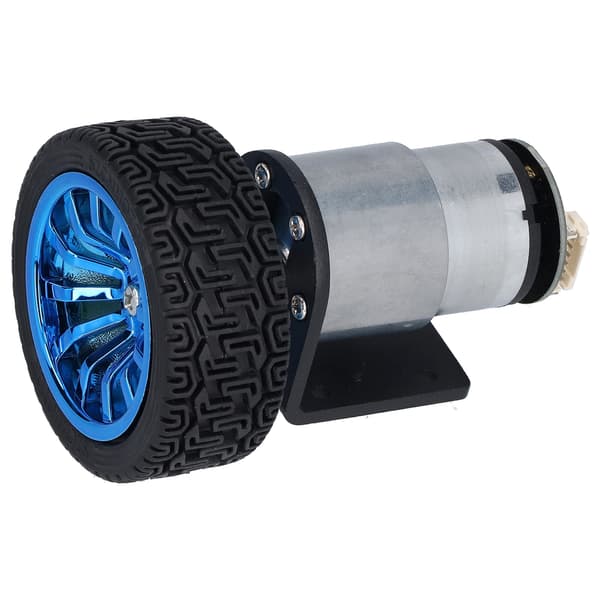

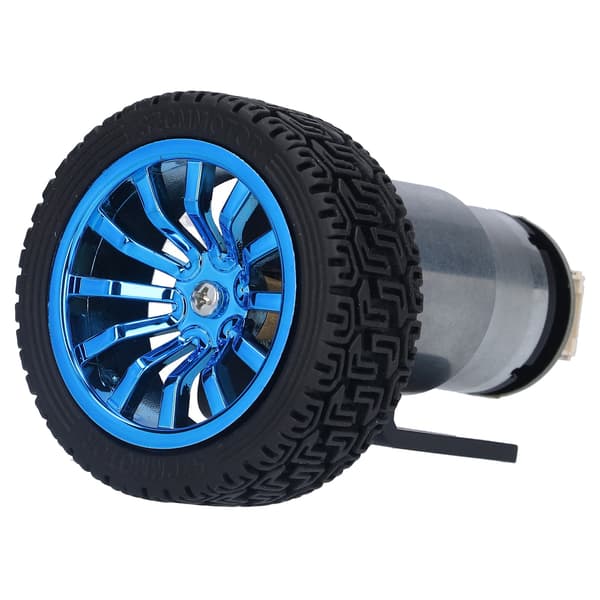

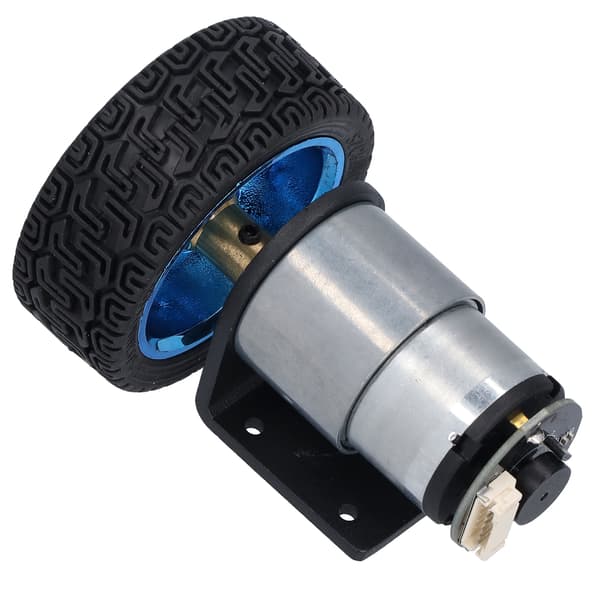

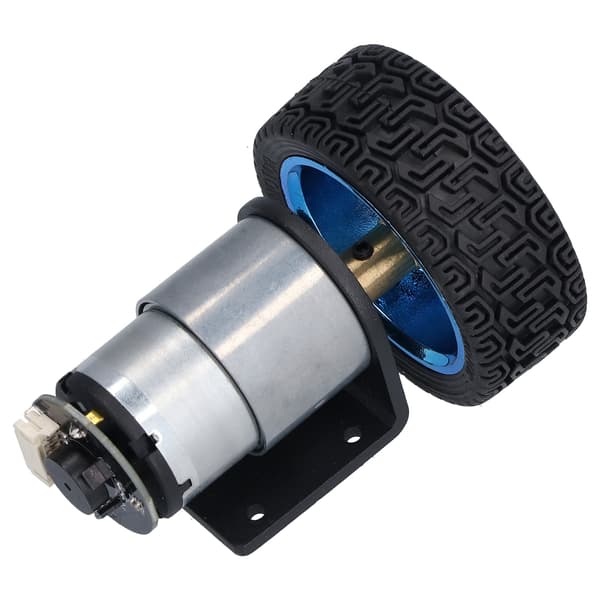

This encoder motor kit, model JGB37-520, is a versatile and reliable component designed for building balance cars, DIY smart cars, and other robot projects. The kit includes a motor, a wheel, a bracket, a connecting cable, a coupling, an Allen wrench, seven screws, and two hex screws, ensuring you have all the necessary parts for assembly.

The motor is powered by a DC voltage of 6V and features a brass and copper construction with high-strength magnetic plates, providing great torque and long-lasting performance. Its shaft is approximately 6mm in diameter (D-shaped) and 15.5mm long, ensuring a secure fit for various applications. The kit supports positive and negative connections for easy wiring.

Key features include smooth operation and low noise, achieved through high-precision shafts, copper couplings, and precise machining with dynamic and static balancing testing. The large torque capacity comes from high-strength magnetic plates, offering strong power and durability. Its fully enclosed structure reduces weight and saves space, while copper windings provide low resistance, quiet operation, low heat generation, minimal loss, and a long lifespan.

Technical specifications are provided for various reduction ratios (gear ratios) to suit different needs: 6.3, 10, 19, 30, 56, 90, 131, 168, 270, and 506. For each ratio, the no-load current is ≤70mA, and the no-load speed varies from 1000 rpm (at ratio 6.3) down to 12 rpm (at ratio 506). Rated torque ranges from 0.4 Kg.cm to 28 Kg.cm, with rated speeds from 800 rpm to 10 rpm. Rated current is ≤0.45A for all ratios, and maximum torque varies from 0.5 Kg.cm to 28 Kg.cm, with the highest ratio (506) handling up to 35KG. The stall current is 1.2A for ratios up to 270, while blocking is not allowed for ratio 506. The motor length (L) varies depending on the ratio: approximately 19mm for ratios 6.3 and 10, 22mm for ratios 19 and 30, 24mm for ratios 56 and 90, 26.5mm for ratios 131, 168, and 270, and 29mm for ratio 506.

This encoder motor kit is practical for educational, hobby, and prototype projects, offering precise control and robust performance.
