With storage and segmented memory function, commonly used statements for storage.

Only two buttons and one switch for easy operation.

Includes power-off protection function, super power saving.

Adjustable speed switch, the potentiometer on the control board can be adjusted at any time.

Power supply: 2 x AAA batteries (NOT included)

How to use:

J1: buzzer mute

L/R:di/da or da/di

F1 key can remember 60 words and has power-off protection function.

F2 key can remember 50 words, it does not protect data when power is lost.

R3 key is for speed control, the speed increases as the value of R3 decreases.

Recording: Hold F1 /F2 for more than half a second, you will hear 'M', now CW is being recorded automatically.

When everything is done, press F1/ f2, you will hear \"S \".

It will remind you with \"F \" if you exceed the volume, and the extra part

will be recorded.

Message: Each message can not only be stored by one long memory, it can also be divided into multiple

parts by inputting EOM (End of Message) at each segmentation.

Play the segmentations: If you want to play the second segmentation, just press the memory button 2 times; if you want the third,

then press the button 3 times, et cetera.

mode: press F1 AND F2 at the same time, you will hear \"C \", now it is under the mode of

Exit mode: press F1 and F2 at the same time again, or you can input \"D \" by pressing the automatic button

Color: black

Material: metal

Package Contents:

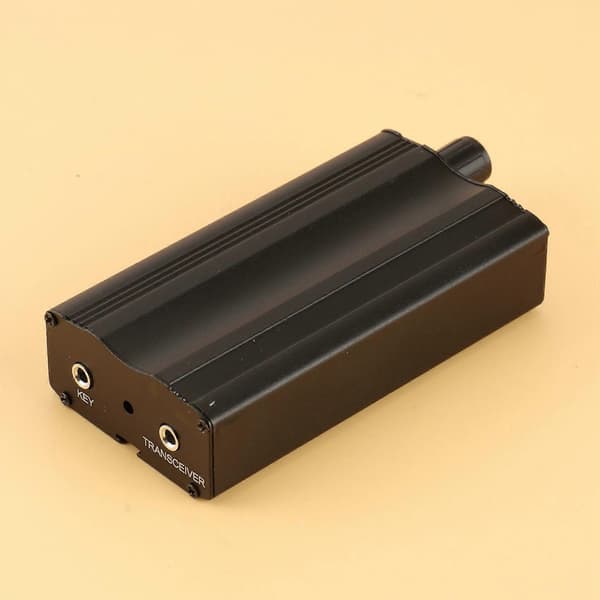

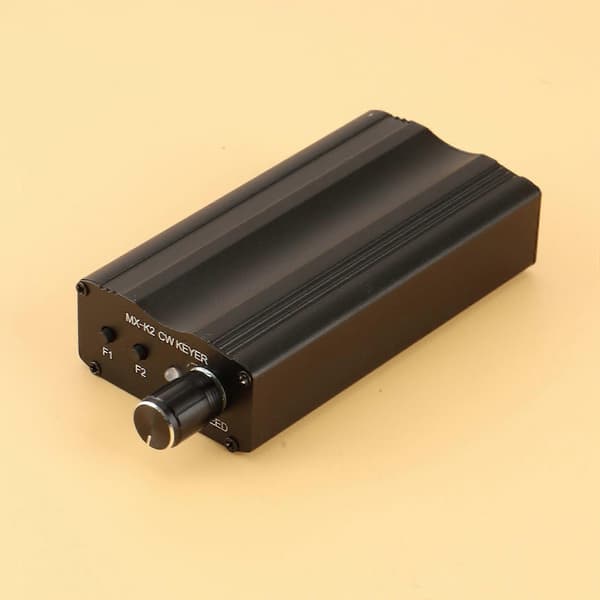

1 * Morse Code Auto Memory Key Controller

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
