Features:

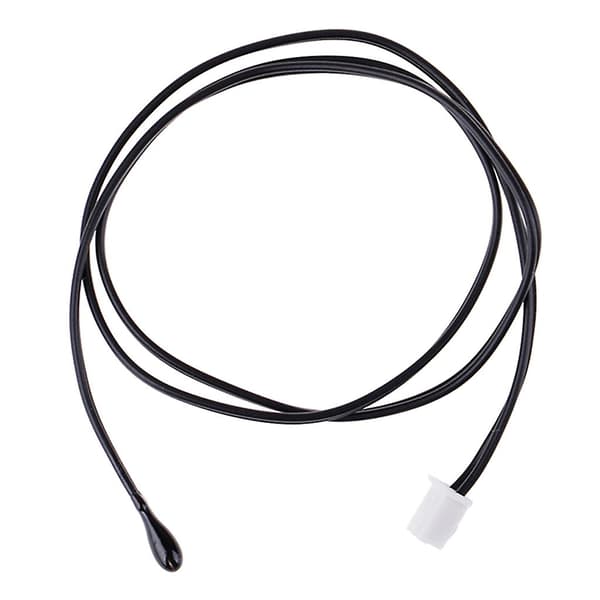

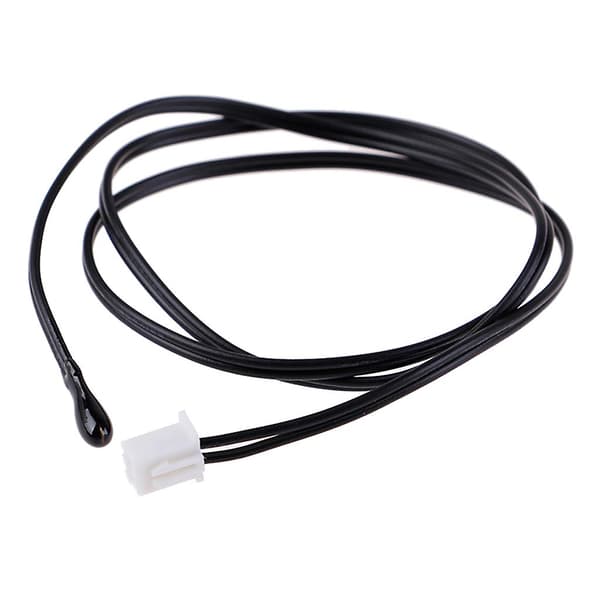

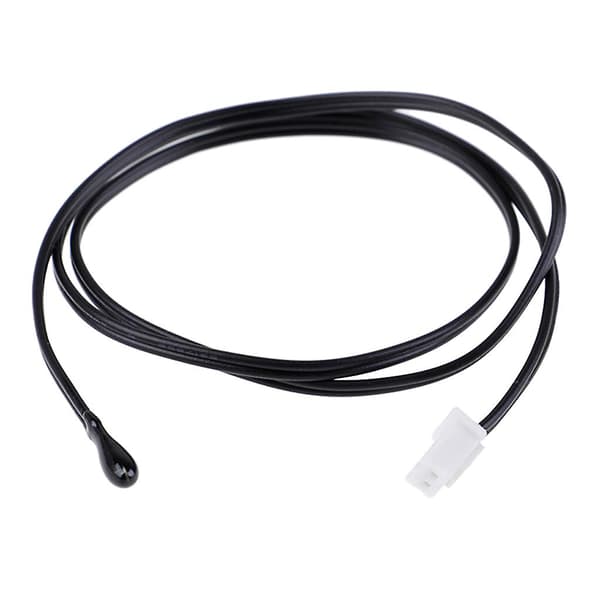

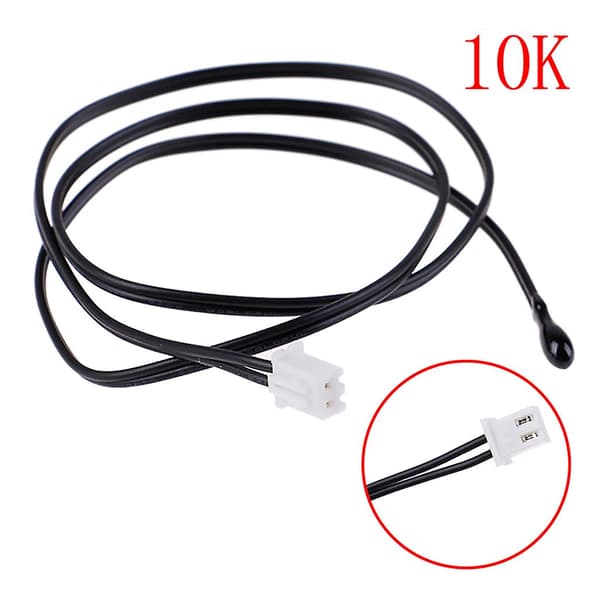

1. High sensitivity and fast response. 10K in water drop shape, 500mm in line length, xh-2y. Easy installation, high sensitivity, fast response.

2. Applicable category: sensor temperature sensitivity, fast response.

3. Waterproof stable performance, used in water heaters, boilers and other temperature measurement environments.

4. Wide operating temperature range, good stability and high reliability. Can supply products with different R and B values, with strong interchangeability and high precision.

5. Wide application. Temperature measurement and control of gas water heaters and rapid water heaters and other home appliances, refrigerators and medium and low temperature drying ovens, incubators and other occasions.

Package Contents:

1 Piece 10K Probe Sensor

Specifications:

Nominal resistance: R25 (25C): (commonly used) 1.5K, 2K, 5K, 10K, 20K, 30K, 47K, 50K, 100K, 200K, 500K, etc.

Resistance accuracy: 1%, 2%, 3%

B value R25/50: (commonly used) 3435K, 3600K, 3950K, 3990K, 4100K, 4200K, etc.

B value accuracy: 1%

Operating temperature range: -40+150

Dissipation power coefficient: 5 mW/ (in still air)

Maximum rated power: 45 mW

Thermal time constant: 7S (in still air)

Temperature coefficient of resistance: -2-5%/

Insulation performance: 500V for DC test, single insulation resistance 100M

Voltage withstand performance: 1500V AC, 5s, 0.5mA without breakdown

Cable length: Approx. 50 cm/19.69 inches

Weight: Approx. 20 g

Note:

1. Please allow 0-1cm error due to manual measurement. Please make sure you do not mind before you bid.

2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you
