OPA1622 is a dual, bipolar input, SoundPlus audio operational amplifier. The device features a low noise density of 2.8nV/Hz and a low +N of 119.2dB at 1kHz, while driving a 32 ohm load at 100mW output power.

The OPA1622's high AC power supply rejection ratio (PSRR) and common mode rejection ratio (CMRR) specifications eliminate noise from the power supply and are ideal for portable audio applications. In addition, the device has a high output drive of +145mA/130mA for directly driven headphones.

The OPA1622 supports a wide voltage range of 2V to 18V with a current consumption of only 2.6m per channel.

The output current of the general operational amplifier NE5532 OPA2604 is less than 50MA, and the output of the OPA1622 is up to 145MA, which greatly increases the driving force, so that the circuit has better matching, lower output impedance, high and low level, dynamics, and therefore very good performance.

Color:green

Material:Metal + PC

Package Contents:

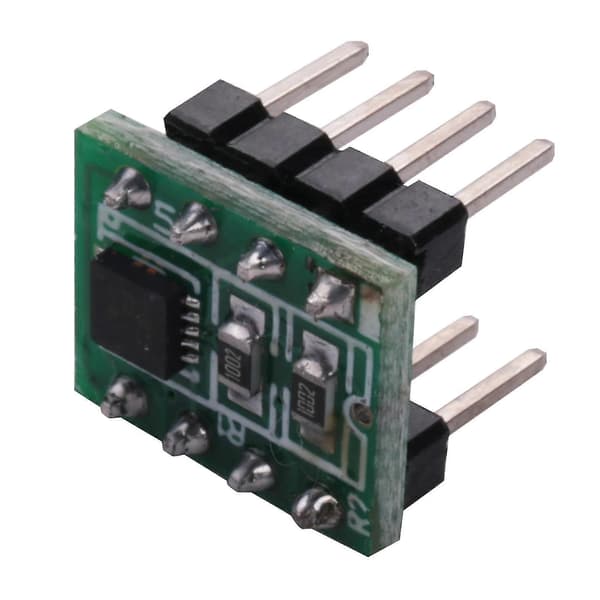

1 * Amplifier Board

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
