1. With LED backlight function, support pointer display, you can quickly and intuitively read the measurement results. 2. It has high impedance, strong magnetic and large damping, high stability, low power consumption, stable and reliable. 3. The moving coil type is adopted, and the vibration frequency is 16.7Hz, which is mainly used to indicate the degree of sound intensity. 4. The VU meter head is made of high-quality PMMA material, which is durable and wear-resistant and has a long service life. 5. Easy installation and disassembly, widely used in DIY, recording studio, home audio, car audio conversion, etc.

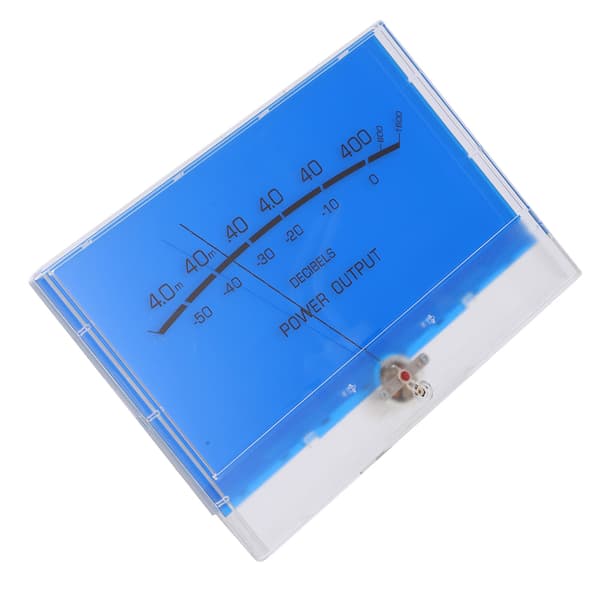

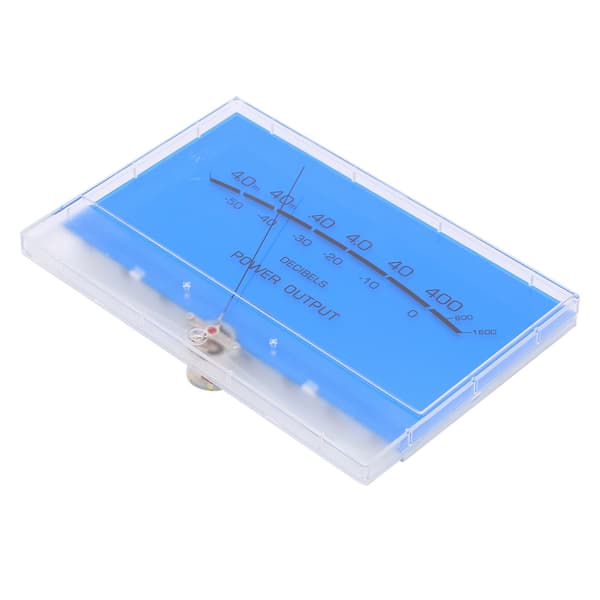

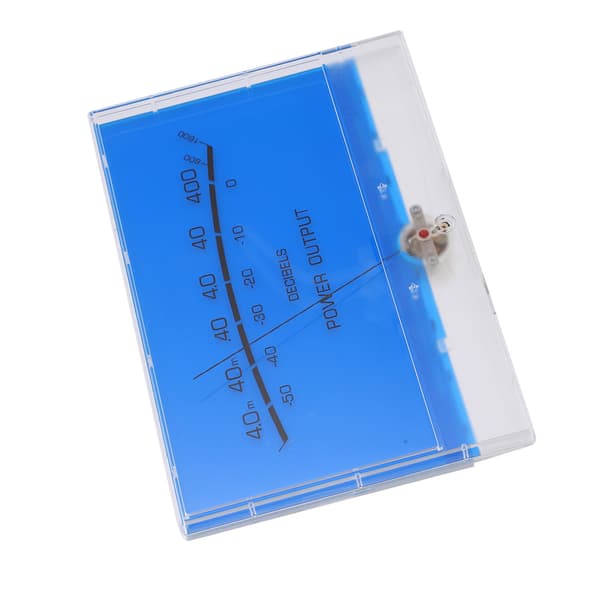

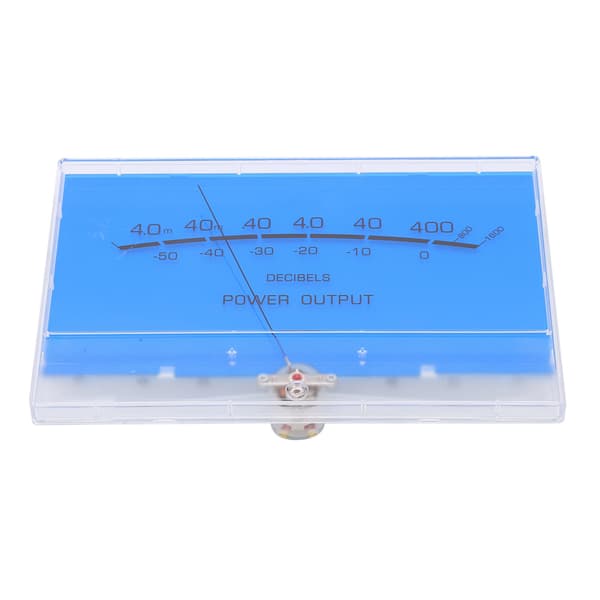

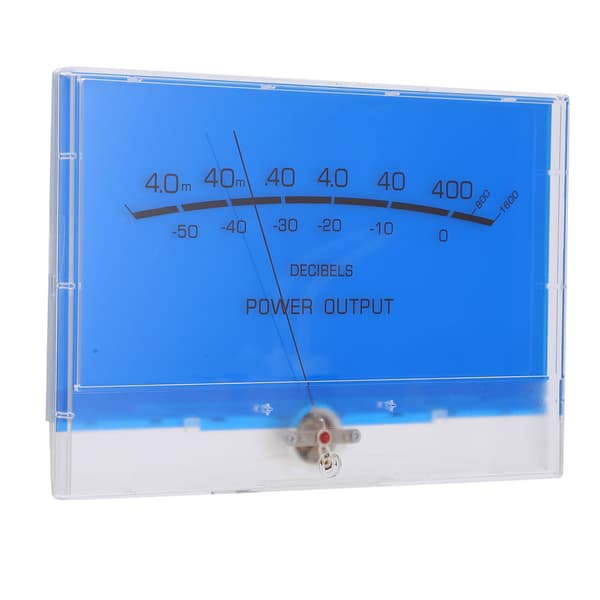

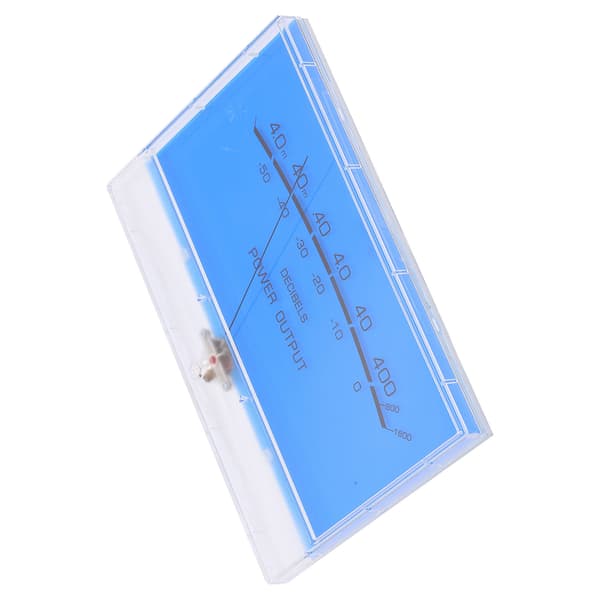

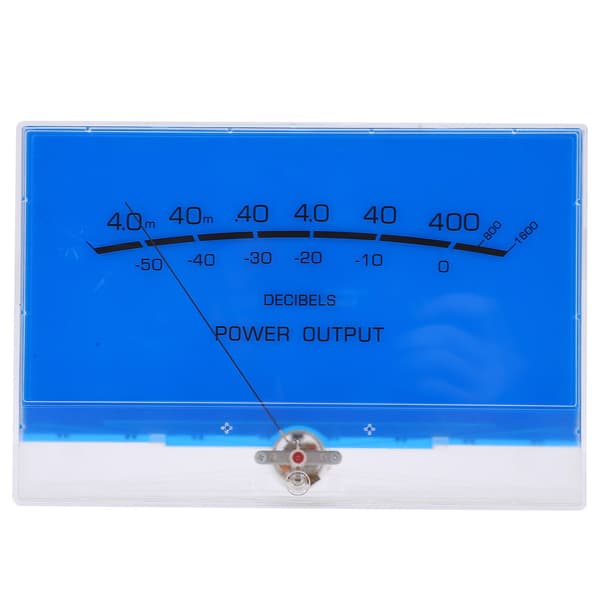

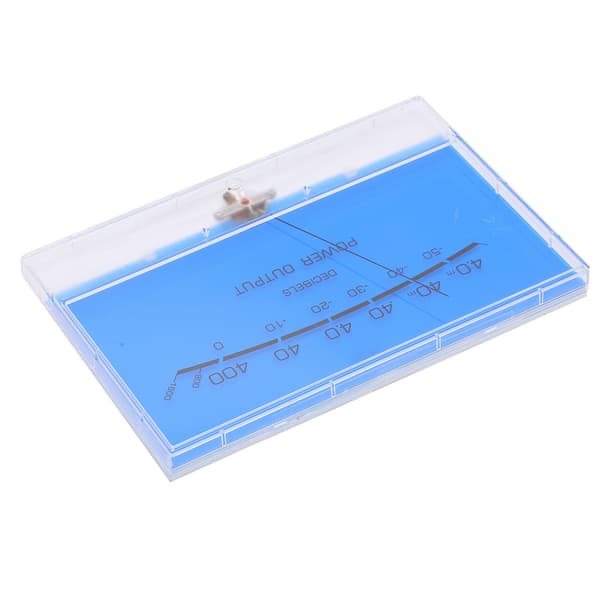

Item Type: VU Meter Head
Material: PMMA
Model: P-200-BGB-S0532
Type: Moving Coil
Pointer Swing Direction: From left to right
Pointer Length: 107±1mm from the needle end to the shaft
Pointer Width: 0.45±0.05mm
Maximum Current Sensitivity: 1200ua±10%
Internal DC Impedance: 2050Ω±10%
Friction: ±1mm
Vibration Frequency: 16.7Hz (1000 times/min)
Temperature: 20℃
Humidity: 70%
Operating Temperature Limit: 70℃±3℃
Storage Temperature Limit: -20℃±3℃
Purpose: Used to indicate the degree of sound intensity
Applicable Scenarios: DIY, recording studio, home audio, car audio conversion, etc.
1 x VU Meter Head
