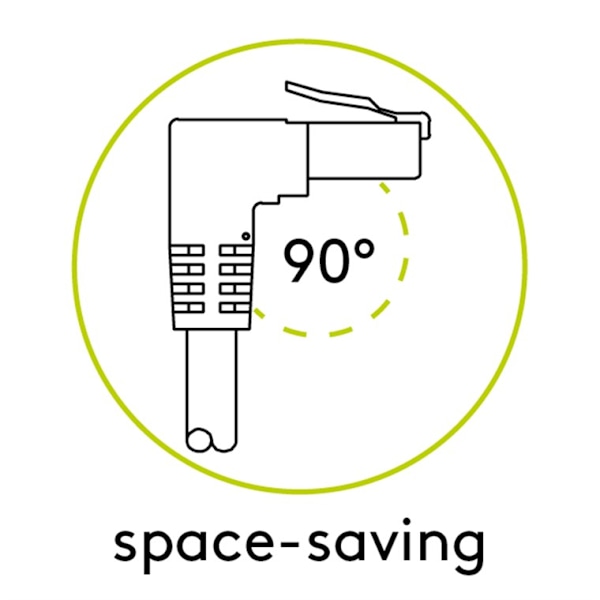

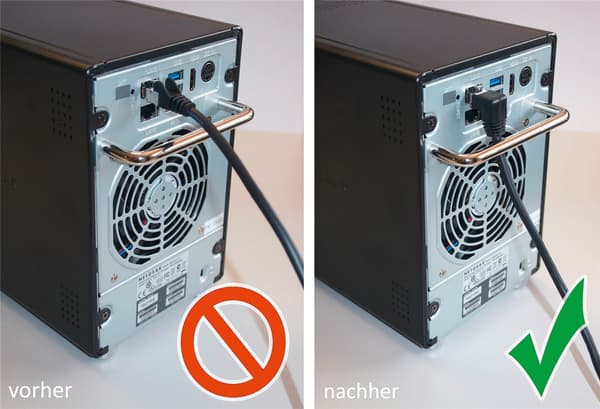

Double-shielded LAN cable with 1x 90° RJ45 right-angle connector as an ideal solution for tight spaces

CAT-6A network cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s

S/FTP overall shielding: aluminum foil for individual wire pairs (PiMF) and aluminum braided shielding for the cable jacket.

High-quality copper conductor (CU) and gold-plated contact surfaces guarantee an excellent, high-performance network connection.

Bend protection and sturdy jacket optimally protect the Ethernet cable from cable breakage.

The snap lock protection on the straight RJ45 connector prevents the snap lock from snagging or breaking off, ensuring a reliable internet connection.

Network cable is suitable for Power over Ethernet (PoE, PoE+).

AWG : 27/7 (stranded)
Bending radius > : 60 mm
Specification : CAT 6A
Cable sheath Diameter : 6 mm
Shielding class : S/FTP (PiMF)
Number of shields : 2 x
Connector : EIA/TIA-568 B
Markings : WEEE, CE
Operating temperature up to : 65 °C
Operating temperature from : -20 °C
max. bandwidth : 500 MHz
Bend protection : two-sided
Cable type : Round cable
Material cable jacket : LSZH
Inner conductor material : CU (copper)
Type 1, shielding : Foil (alu) PiMF
Type 2, shielding : Shield braid (alu) overall shield
Connection, contact material : Gold-plated 3µm
Connection, shielding : yes
Connection, type : RJ45 connector (8P8C)
Connection 2, type : RJ45 connector (8P8C)
Latch protection : one-sided
Color : black
Consumption unit : 1 pc. unpackaged
Special feature : Length indication on the connector
Cable length : 1 m
Color version : black
