Features:
Easy installation and simple to use.
Only need to lightly press to mute the device; very useful under special conditions.
Plug and play; No power supply and other software required; Does not affect sound quality.
Analog signal maximum support 2V pp input and output.
Input and output frequency range: 20Hz ~ 20KHz.
Use standard audio cable, input transmission distance up to 8 meters, output transmission distance up to 8 meters.
Compact and super mini size; Easy to place and suitable for your desktop and office.
Super small size: 78 * 50 * 20 mm / 3 * 2 * 0.79 inches.
2(1)-in-1(2)-Out RCA Stereo:
Audio switcher, R/L Stereo Audio Switcher AB Switch, R/L Stereo Audio Switcher Splitter 2 x 1/1 x 2, with Mute button and no external power required.
L / R Stereo Audio Bi-directional Switcher:
This is a bi-directional switcher for L / R channel audio ports. L / R
Audio selector designed for customers who have multiple audio sources and outputs.
Main functions:
① Select audio input between 1 and 2 with 1/2 switch and get one output;
② Select audio output between 1 and 2 to receive one input;
How to use:

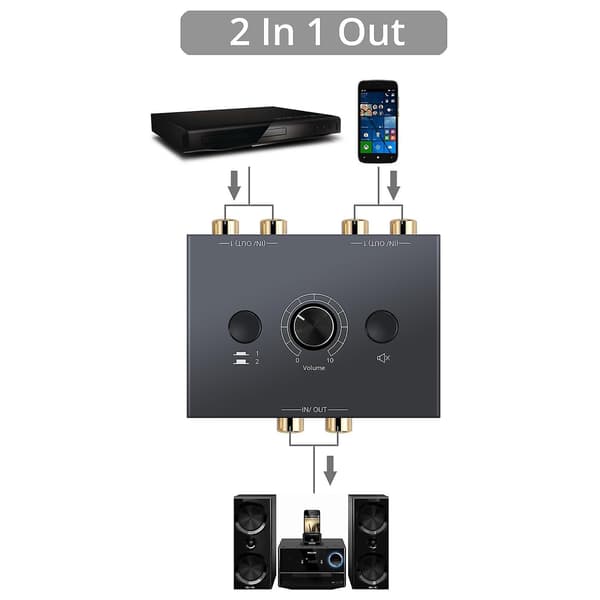

① Connect two audio sources (such as CD player/computer) to 1/2 ports and one audio output (such as speakers) to the IN/OUT port;

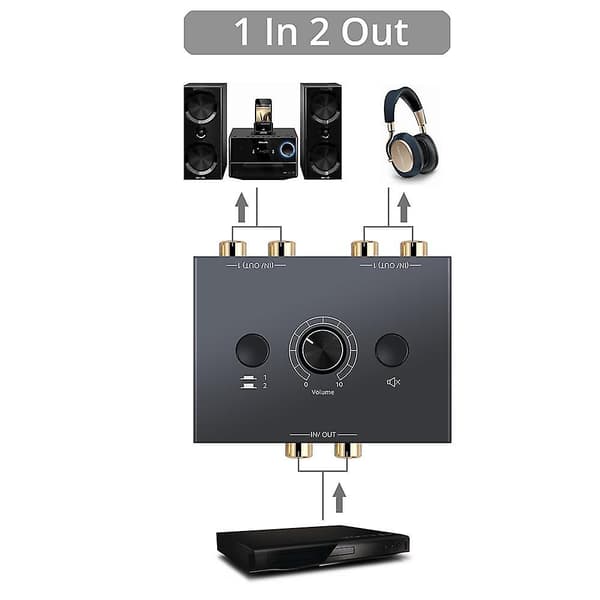

② Connect one audio source to the IN/OUT port and two audio outputs to the 1/2 port;
Specifications:
Use: Computer, Microphone, Monitor, DVD Player, Projector, TV
Type: Audio Cable
Connector-B: RCA
Connector-A: RCA
Model Number: Bi-directional Audio Switcher
Gender: Female-Female
Package includes:

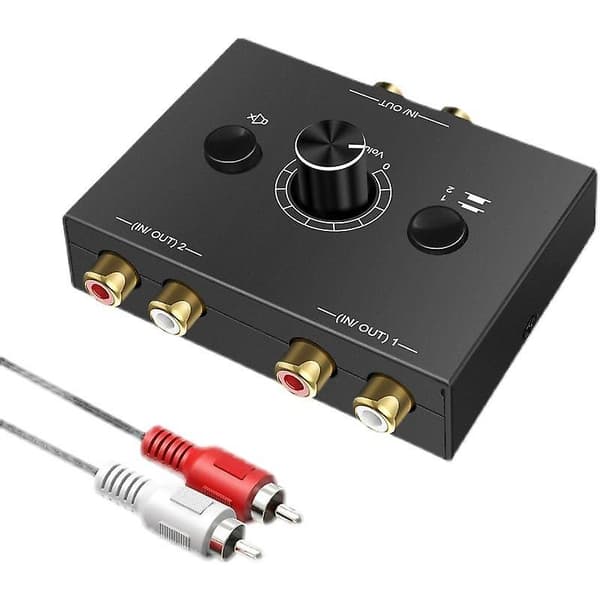

1* L / R Stereo Audio Bi-directional Switcher
1* L / R stereo cable (1.5m)
1* User Manual
