Mounted indoors on the wall.

Temperature control range +5 / +40.

Used in automatic heating systems.

LED light turns on when heating is active.

Meets requirements for safety, energy saving, and comfort.

Product Description

Description:

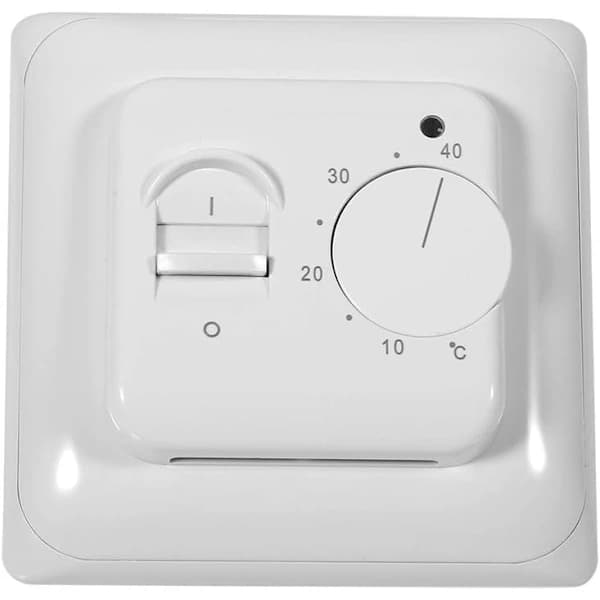

The manual heating thermostat is designed for electronic underfloor heating and other electric heating elements. The thermostat measures the room temperature via its floor sensor, and the heating contact closes when the room temperature rises above the set temperature and vice versa.

Features:

Mounted indoors on the wall.

Temperature control range +5 / +40

Used in automatic heating systems. LED light turns on when heating is active.

Meets requirements for safety, energy saving, and comfort.

Specifications:

Item condition: New.

Voltage: 230V AC 50 / 60Hz.

Max load: 16A 3600W.

Power consumption: 5VA.

Temperature control range: 5~40~

Temperature limiting range: 25~55.

Energy saving mode temperature: 5.

Temperature deviation: + -0.5K.

Ambient temperature: -5~50.

Enclosure protection class: IP20.

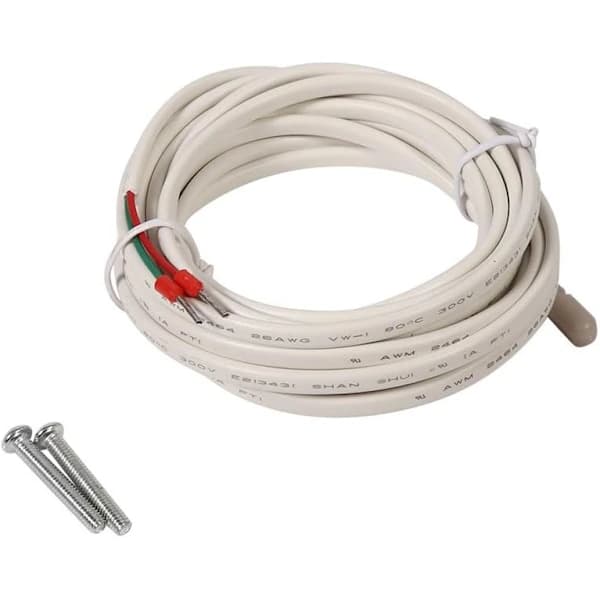

External sensor: Cable length 2.9m.

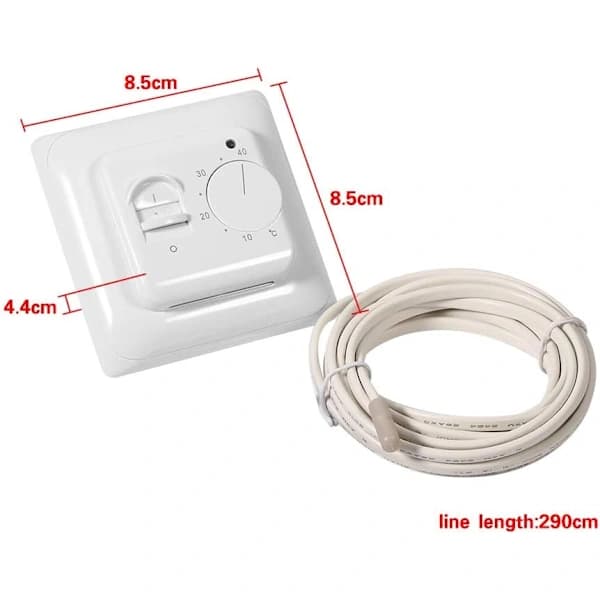

Size: Approx. 8.5*8.5*4.4cm/3.3*3.3*1.7 inches.

Certification: CE.

Material: PVC.

Color: White.

Approximate weight. 202 g.

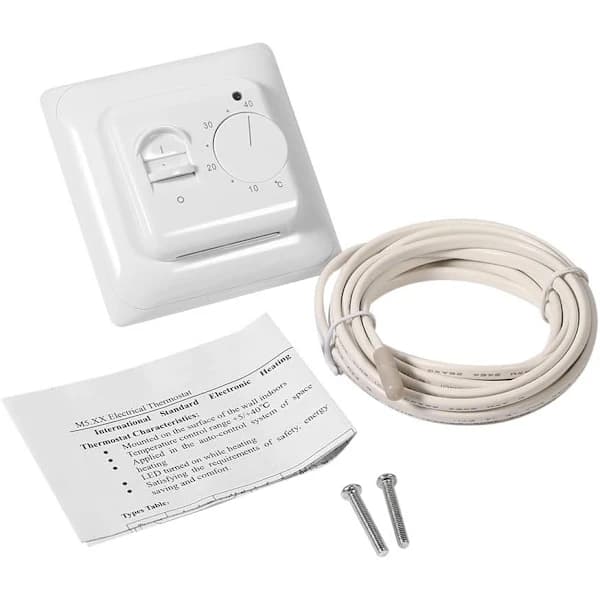

Package includes:

1 x heating thermostat.

1 x 2.9 m sensor cable.

2 x mounting screws.

1 x English user manual.

Note:

1. Please allow 1-2 mm error due to manual measurement. Thank you for your understanding.

2. Monitors are not calibrated the same way. The color of the item shown in the pictures may differ slightly from the real object. Please take the real object as standard.
