1. SG90 9G micro servo with a torque of 1.5 kg/cm. 2. 30A ESC, safety activation function, throttle calibration function, supports multiple programming methods. 3. Compatible with lithium batteries. The timing can be changed to suit different brushless motors. 4. Comprehensive protection, low-pressure cut-off protection/overheat protection/throttle signal loss protection. 5. Wonderful accessory for remote control airplanes.

Item Type: RC Airplane Accessories

Material: Plastic + Metal

Color: As the picture shows

Weight: Approx. 136g

SG90 9g servo parameters:
Size: Approx. 21.5x11.8x22.7mm/0.8x0.5x0.9in
No-load speed: 0.12 seconds / 60 degrees (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Working temperature: -30℃~ + 60 ℃
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V

2212 motor specifications:
Motor size: Approx. 27.5x 30mm/1.1x1.2in
Shaft diameter: Approx. 3.17mm/0.1in
KV: 2200KV

30A ESC specifications:
Connector: XT60
Continuous current: 30A
Maximum current: 40A (10S)
Power input: 2-3 lithium batteries or 5-9 nickel-cadmium batteries (not included)
BEC output: 2A / 5V (linear regulator mode-linear mode)
Maximum speed: 210,000 rpm for a 2-pole BLM, 70,000 rpm for a 6-pole BLM and 35,000 rpm for a 12-pole BLM.
Application: RC remote control drone

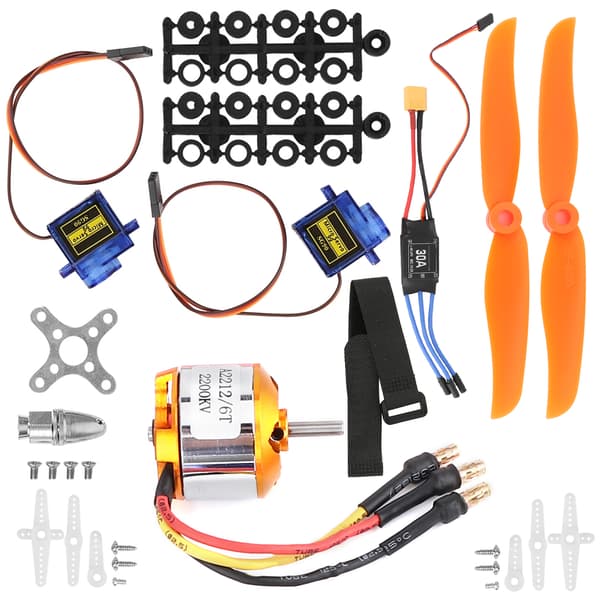

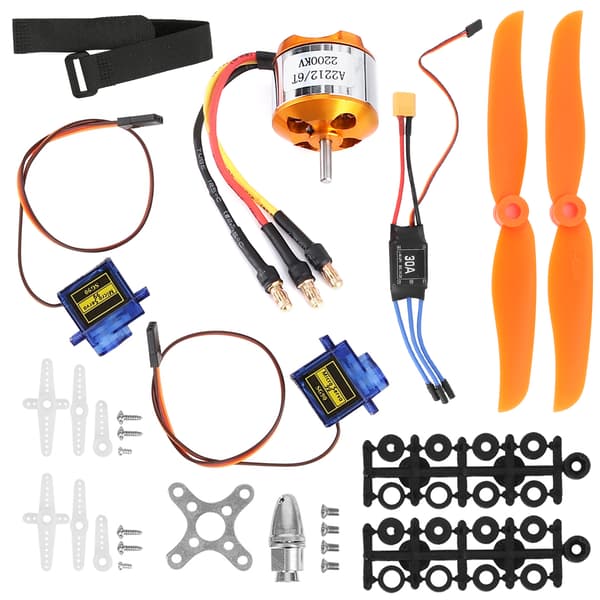

1 x Motor

2 x Propeller

2 x Servo

1 x ESC

1 x Motor base

1 x Projectile heads

6 x Servo arm

1 x Fastening belt

10 x Screw

2 Rows x Propeller washer
