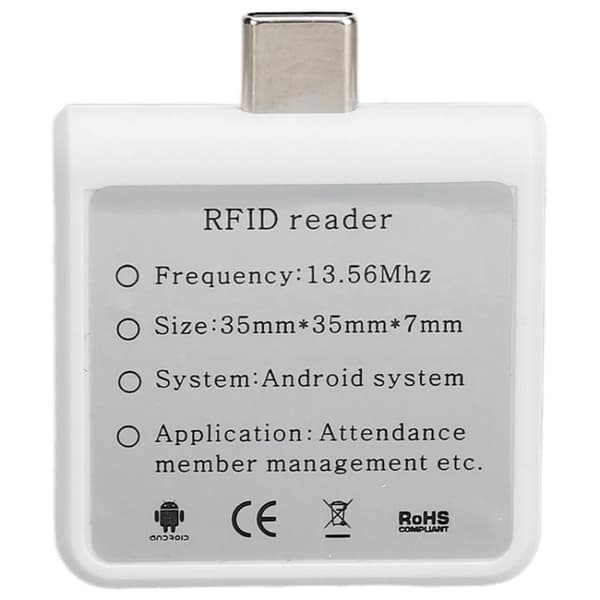

Convenient RFID reader for fast and reliable card reading via Android

• Plug-and-play with no drivers needed


• Fast card reading in under 100 ms


• Compact size with USB-C connection

This 13.56 MHz RFID reader with 14443A protocol support is designed for easy and efficient reading of compatible RFID tags via Android devices. Thanks to plug-and-play functionality, the RFID reader connects directly via USB-C without installing any drivers, making it ready for immediate use. The fixed read function ensures stable and consistent identification of cards, which is well suited for applications such as verification, registration, and access control where quick response is crucial.

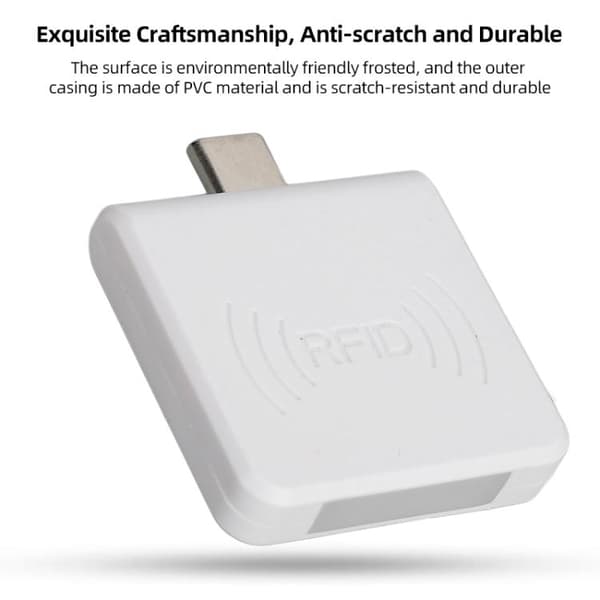

The compact design makes the RFID reader easy to carry and convenient to use even in cramped environments. Cards are read in less than 100 ms, contributing to a smooth workflow during repeated use. The reading distance is adapted for precise identification, with up to 3 cm reading from the front and back and up to 1 cm from the side.

Adapted for mobile and flexible use
The RFID reader is powered by 5 V and has a low power consumption of 100 mA, making it well suited for mobile use with Android devices. The wide operating temperature range between -20 and 70 degrees Celsius allows the RFID reader to operate stably in varying environments, both indoors and outdoors.

Specification
- Frequency: 13.56 MHz
- Protocol: 14443A (read-only)
- Connection: USB-C
- Operating voltage: 5 V
- Operating current: 100 mA
- Operating temperature: -20 to 70 °C
- Reading distance: 0–3 cm (front/back), 0–1 cm (side)
- Dimensions: 3.5 x 3.5 x 0.7 cm
- Weight: 20 g
