1. 10/350us Waveform: The graphite gap surge protector of the SPD series belongs to the first-class protection device with 10/350us waveform. Designed according to IEC and GB standards. 2. First Level of Surge Protection: Used for the first level of surge protection of power supply for equipment systems in areas with a high risk of thunderstorms. 3. For Single and Three-Phase Lines: Can prevent various surge currents, including direct lightning strikes, and can be applied to single and three-phase supply lines through different combinations of numbers. 4. Standard 35mm Control Rail Installation: Modular design, standard 35mm control rail installation method, installed in the building's main power distribution cabinet (box) and outdoors. 5. High Lightning Appetizer Capacity: Has high lightning discharge capacity, no release, maximum impulse current (10/350us) reaches limp = 15ka, maximum discharge current (8/20us) reaches iMaxum = 100ka.
>

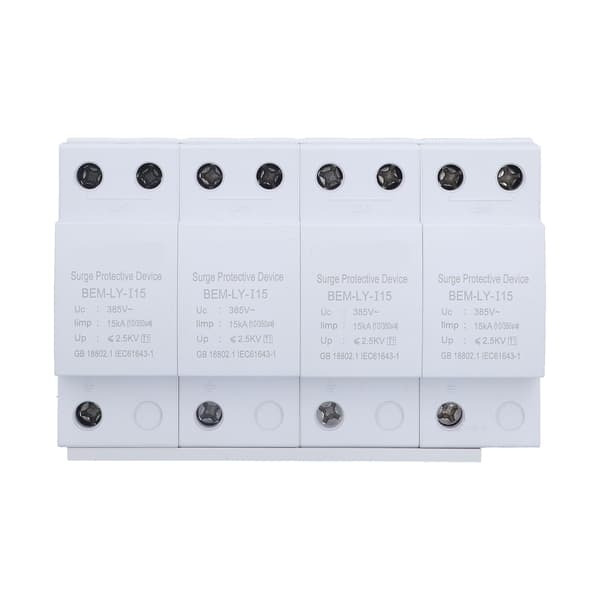

. Surge Protection Devices
Product Model: Bem-Lyi15
Product Specifications: 4p15ka
Highest Sustainable Operating Voltage: 385V
Insulation Resistance: > 100 MOHM
Impulse Current (10/350us): Peak Current: 15ka; Tax Amount: 7.5As; Energy: 56.25KJ/Q
Maximum Discharge Current (8/20US): 100ka
Rated Discharge Current (8/20US): 15ka
Protection Level: ≤2.5kv
Response Time: ≤100ns
Ambient Temperature: -40 ℃ ~+80 ℃
Shell Material: Flame Retardant Nylon
Protection Level: IP20
Equipped with Front Fuse: 125a
Height: Max 2000 meters
Relative Humidity: Not exceeding 90%(25 ℃)
1 x Surge Protector
