High precision, stable performance and easy operation.
Dual LED nixie tube digits for display, clear for reading.
The instrument has functions of zero clearing and PV modification.
Works with pressure sensor and weight sensor.
Suitable for weight control, automatic accumulation/mean for up/down batch control, etc.

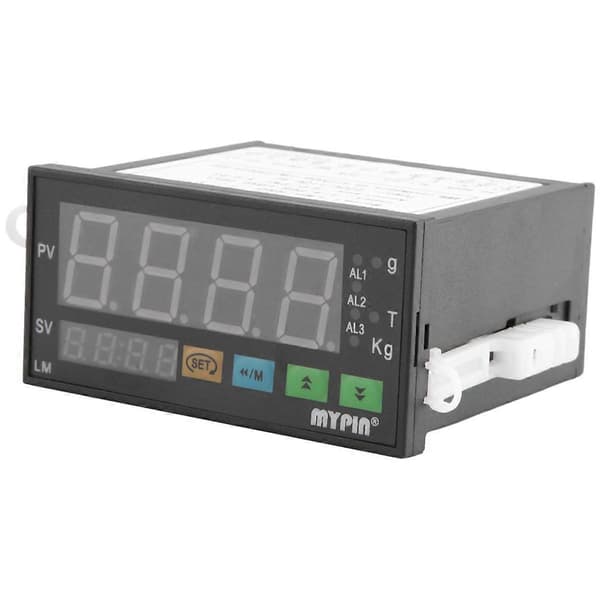

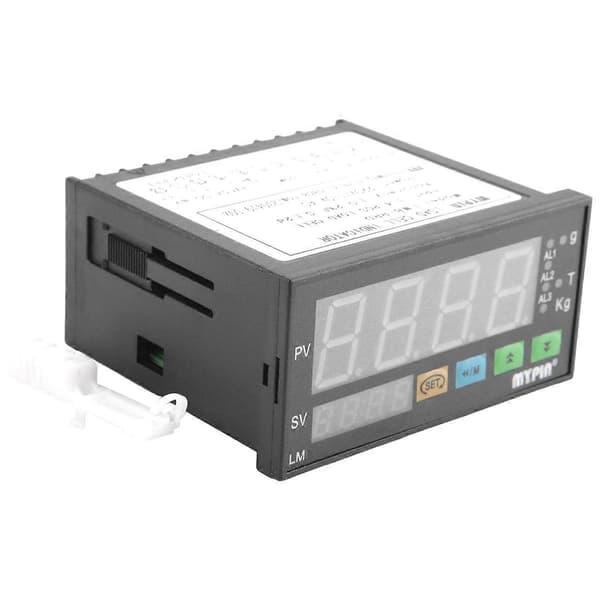

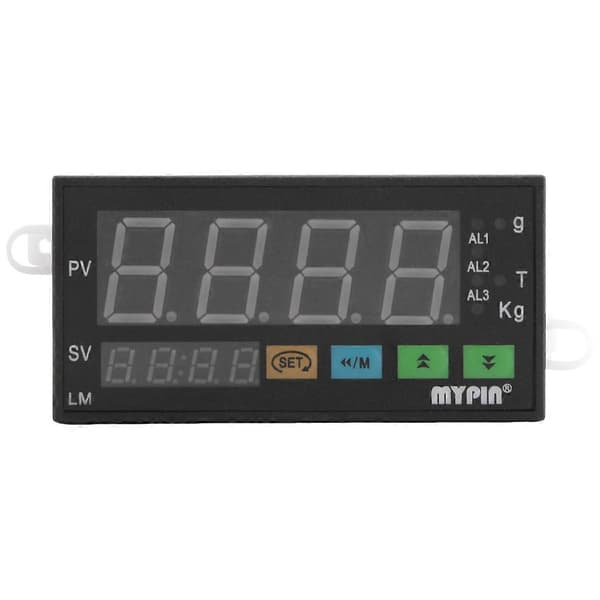

Digital Weighing Controller Load Cell Indicator 2 Relay Outputs 4 Digits
Model: LM8-RRD(4 Digits)
Display: LED display
Power supply: LM8-RRD: 220V/110V AC; LH86-RRD: 90-260V
Accuracy: LM8-RRD: 0.2%Fahrenheit.Splusmn;2dgt; LH86-RRD: 0.1%Fahrenheit.Splusmn;2dgt
Power consumption: le;5VA
Sampling rate: LM8-RRD: le;16 times/second; LH86-RRD: 16-128 times/second
Input: Common: mV(Load cell), 1-4 pcs Load cell
Output: 2 RELAY
Relay: Open contact 250V AC 3A or 30V DC 3A COSφ=1
Auxiliary power: DC 5V
Item size: 95 x 85 x 46mm / 3.74 x 3.35 x 1.81in
Item weight: LM8-RRD: 258g / 9.12oz; LH86-RRD: 188g / 6.63oz
color: black
Material: plastic + metal
Package Contents:
1 * Weighing Controller
2 * Bracket
1 * User Manual (English)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
