1. The product supports multiple engine protection functions, engine overspeed protection; low oil pressure protection; high oil temperature protection; high water temperature protection; low battery voltage alarm

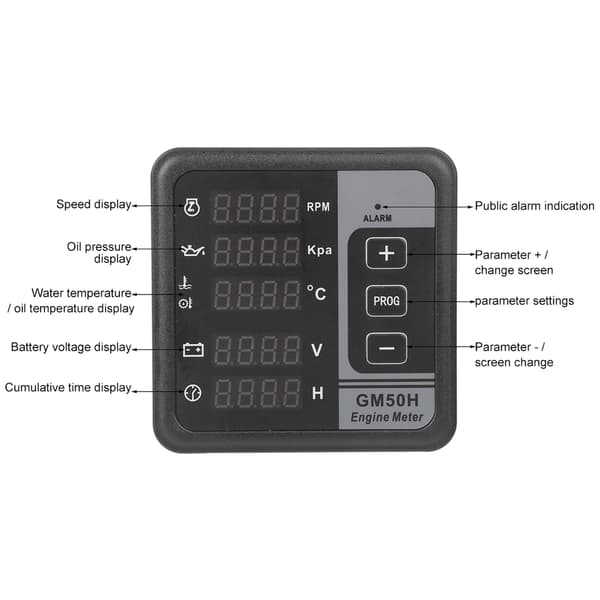

2. The multifunctional detector panel can support the display of: engine speed; oil pressure; oil temperature; engine cooling water temperature; battery voltage
3. Various sensor curves are optional to help you understand the engine's operating status
4. Supports custom sensor curve, allowing you to monitor the engine more accurately
5. The display uses high-brightness digital tubes to show the measured values and read data more clearly

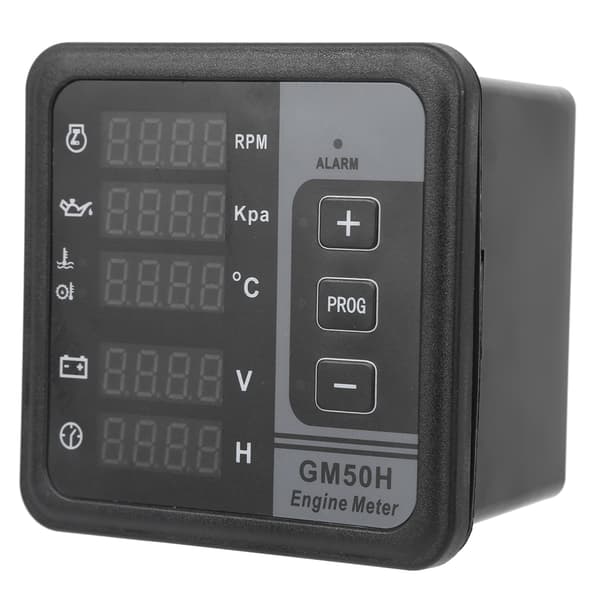

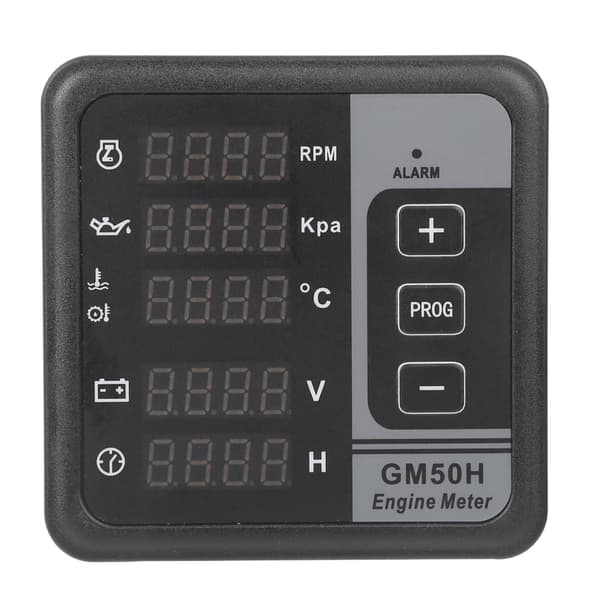

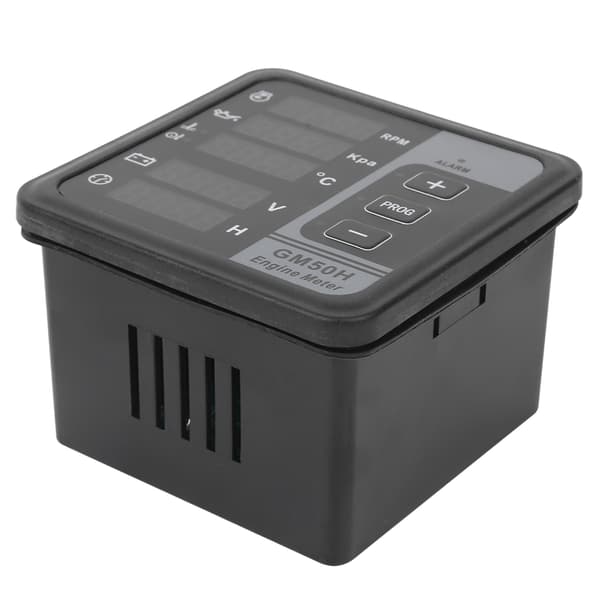

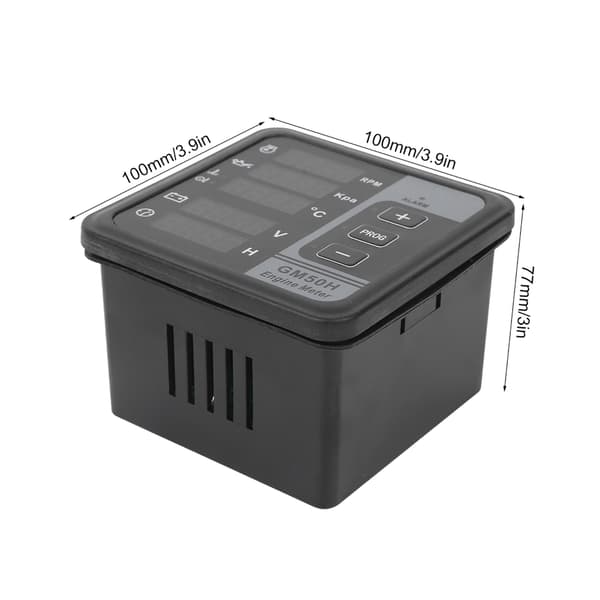

Item Type: Engine Meter GM50H Engine Digital Display Multifunction Table: 1. With multiple protection functions2. Speed converted from generation frequency3. Built-in multiple sensor curves optional4. Customizable sensor parameter curve5. Highlight the digital tube to display the measured value6. English and symbolic instructions7. Panel keys to set and modify system parametersParameter display: 1. Engine speed; 2. Engine oil pressure 3. Engine oil temperature; 4. Engine cooling water temperature; 5. Battery voltage; 6. Cumulative working timeProtection function: 1. Engine overspeed protection; 2. Low oil pressure protection; 3. High oil temperature protection; 4. High water temperature protection; 5. Low battery voltage alarm.Range and accuracy: 1. Speed measurement Accuracy: Error ≤± 1% (within range);2. Oil pressure measurement Accuracy: 0-1100KPA, error ≤± 2.5%;3. Water temperature measurement Accuracy: 10-120 degrees Celsius, error ≤ ± 2.5%;4. Oil temperature measurement Accuracy: 10-150 degrees Celsius, error ≤ ± 2.5%;5. Battery voltage measurement Accuracy: Error ≤ ± 1% (within range);6. Accumulated time range: 0-9999 hours;Specifications: Power supply: DC8 ～ 36 VPower consumption: Maximum: 1 WSensor input resistance: 0 ～ 1000 ohmSpeed input signal Frequency range: Freq 300Hz ～ 15kHzSpeed input signal Amplitude range: AC 3 ～ 16VInput generation frequency: Freq 45 ～ 70HzInput generation voltage: AC40 ～ 280VAlarm output: Negative output, maximum DC1AWorking environment temperature: -20 ～ 65 ℃;Storage environment temperature: -40 ～ 85 ℃;Protection level: IP54 (front panel after installation);Size (W x H x D): Approx. 100 x 100 x 77 mm / 3.9 x 3.9 x 3 inchesHole size (W x H): Approx. 91 x 91 mm / 3.6 x 3.6 inchesWeight: Approx. 150g / 5.3oz

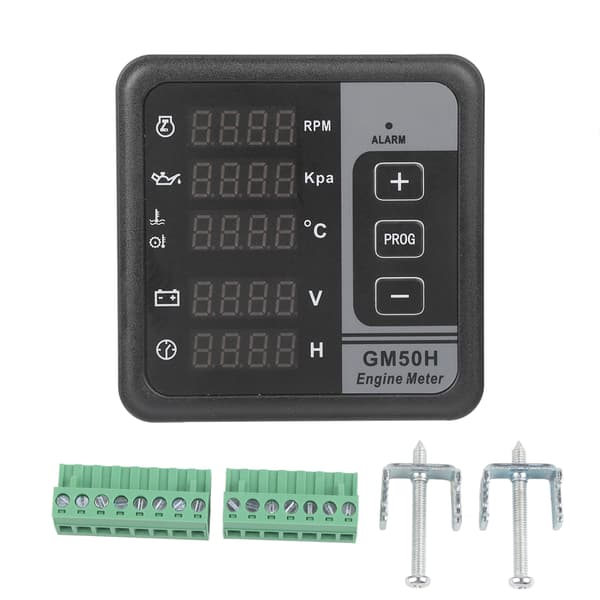

1 x Engine meter 2 x Green module 2 x Fixing screws
