1. 4-pole 12-slot high-torque motor design and CNC machined 6061 T6 billet aluminum heatsink. 2. High-purity copper windings with a shaft diameter of 3.175 mm/0.1 inch can maximize efficiency. Precision design can achieve maximum energy conversion. 3. Precisely balanced rotor has sufficient smoothness to achieve best reliability and maximum RPM. 4. The programming card has a portable design and can be carried with you, which is convenient and easy to use. 5. With ITEM, VALUE, OK, RESET 4 buttons and indicator light, it is easy to set up.

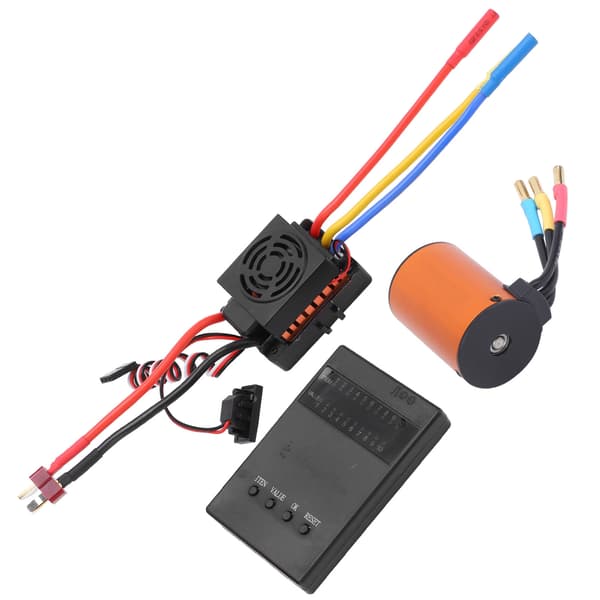

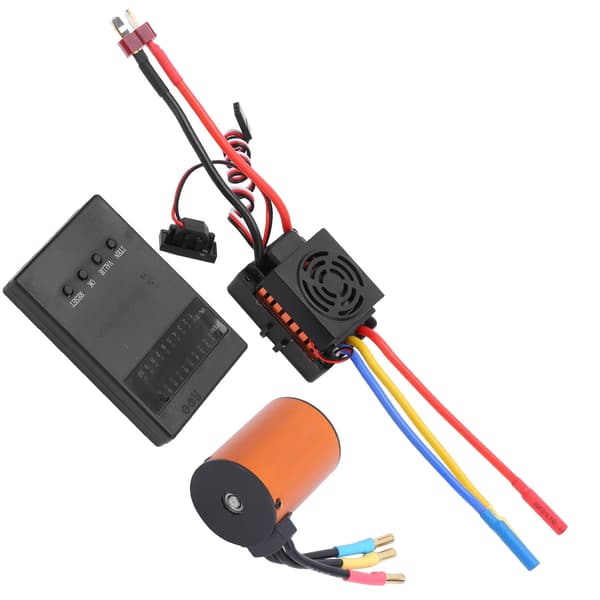

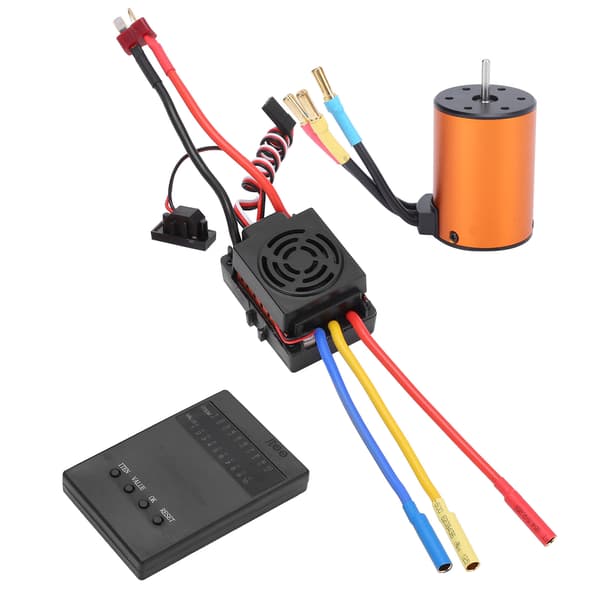

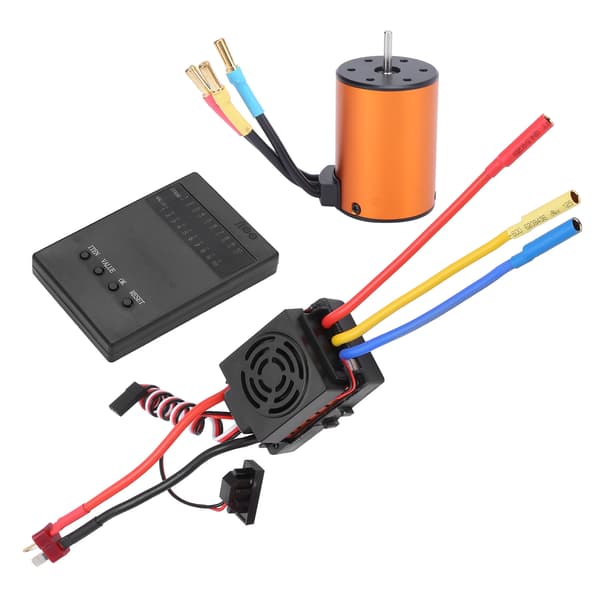

Item Type: 3650 3100KV Brushless Motor + 60A ESC + Programming Card Combo
Material: Aluminum Alloy + Copper + Plastic
Product Color: As pictures show
Product Weight: Approx. 317g / 11.2oz
Compatible: Fits for 1/8 1/10 RC Car
Motor Parameters:
Diameter: Approx. 36 mm / 1.4 inch
Length: Approx. 50 mm / 2.0 inch
Shaft Length: Approx. 15 mm / 0.6 inch
Shaft Diameter: Approx. 3.175 mm / 0.1 inch
Power: 900W
Maximum Voltage: <12V
Maximum Current: 75A
KV (rpm/volt): 3100KV
Maximum Speed: 50000
Plug Type: 4 mm Golden Banana Plug
ESC Parameters:
Continuous Current: 60A
Peak Current: 320A
Applicable Power Supply: 2-3S LiPo / 4-9S NiMh (not included)
BEC: 5.8V / 3A
Power Plug: T-plug male
Programming Card Parameters:
Low Voltage Cutoff: 3.7V / 3.6V / 3.5V / 3.4V / 3.3V / 3.2V / 3.1V / 3.0V / 2.9V / 2.8V / 2.7V / 2.6V
Start Mode: Medium/Soft/Strong
Maximum Brake Force: 50%, 25%, 75%, 100% (25A, 35A, 45A, 60A), 25%, 50%, 75%, 100% (80A, 120A)
Maximum Reverse Force: 25%, 50%, 75%, 100%
Neutral Range: 9%, 6%, 12% Working Status
1 x Motor
1 x ESC
1 x Programming Card
1 x Manual
