1、High Stability: This waterproof IP67 power supply features a small size, providing high stability and high efficiency, as well as strong anti-interference. 2、Safety Protection: This waterproof IP67 power supply provides overload, overvoltage, overtemperature, overcurrent, and short-circuit protection. 3、Long Lifespan: This waterproof IP67 power supply uses all fiberglass and aluminum alloy, ensuring high temperature resistance and a long lifespan. 4、IP67 Protection: This waterproof IP67 power supply has IP67 protection, which facilitates heat dissipation. 5、Wide Application: Widely used in LED strip lights, LED lamps, computer projects, industry, outdoor lighting, etc.

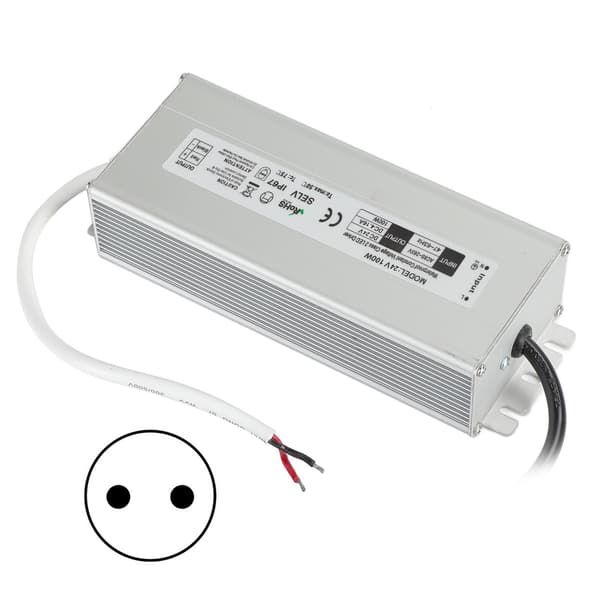

Item Type: Waterproof IP67 Power Supply
Material: Aluminum Alloy
Type: AC DC
Modulation Mode: Pulse Width Modulation (PWM) Type
Transistor Connection: Single - Ended
Input Voltage Range: 85-265VAC 47-63Hz
Output Power: 100W
Rated Output Voltage: 12VDC/24VDC
Rated Output Current: 12V8.33A/24V4.16A
Output Current Range: 0~8.33A/0-4.16A
Working Efficiency: 96 (%)
Output Ripple Noise: 30mV
Output Voltage Accuracy: 0.5 (%)
Voltage Adjustment Rate: 5 (%)
Load Adjustment Rate: 0.5 (%)
Safety Protection: Overload, overvoltage, overtemperature, overcurrent, short-circuit protection
Operating Temperature: -20-+50℃, 20%-90%RH (Non-condensing)
Circuit Board Components: Uses full fiberglass circuit board (environmental protection, flame retardant, high temperature resistance, long lifespan and other characteristics), Uses new components
Storage Temperature: -20-+75℃ 10%-95%RH (Non-condensing)
Waterproof Rating: IP67
1 x
Waterproof IP67 Power Supply
