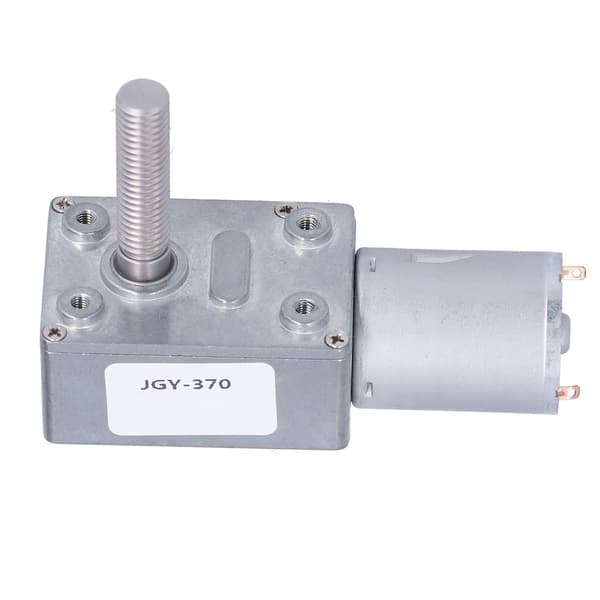

This worm gear motor is a high-performance industrial drive unit designed for durability and efficiency. The casing is made of premium zinc alloy material, making it wear-resistant, rustproof, corrosion-free, and providing better thermal conductivity for reliable operation. After precision grinding, the gear undergoes heat treatment, ensuring excellent wear resistance, long service life, and higher overall performance. The motor shaft uses lubricating oil to guarantee quiet operation, effectively reducing bearing vibrations. It features a carbon brush structure instead of a copper brush, ensuring long service life, low friction, and low power consumption. The stable performance of the 8mm shaft allows for long-term operation without overheating, making it suitable for manufacturing mini motors and DIY model projects.

Item Type: Worm Gear Motor

Material: Zinc alloy, red copper, carbon, stainless steel

Purpose: Industrial drive unit

Operating Voltage: DC 6V/DC 12V

Output Shaft Size (diameter x length): Approx. 8 x 33 mm / 0.31 x 1.29 inches

Shaft Type: M8 threaded shaft

Whether speed should be adjusted: Adjustable speed

Whether forward and reverse: Can be forward and reverse

DC 6V Specifications:

Reduction Ratio: 40, 65, 90, 150, 200, 260, 340, 600, 1000

No-load current MA: ≤100 for all conditions

No-load speed rpm: 150, 90, 66, 40, 30, 23, 18, 10, 6

Rated torque kg.cm: 0.2, 0.5, 0.7, 2, 5.3, 6.7, 9, 15.9, 26.5

Rated speed rpm: 120, 70, 51, 30, 22, 18, 15, 7.5, 4

Rated current A: ≤0.6 for all conditions

Maximum torque Kg.cm: 0.9, 1.6, 2, 7.5, 10, 13, 18, 30, 45

Stall current A: 3.3 for all conditions

DC 12V Specifications:

Reduction Ratio: 40, 65, 90, 150, 200, 260, 340, 600, 1000

No-load current MA: ≤60 for all conditions

No-load speed rpm: 150, 90, 66, 40, 30, 23, 18, 10, 6

Rated torque kg.cm: 0.2, 0.5, 0.7, 2, 5.3, 6.7, 9, 15.9, 26.5

Rated speed rpm: 120, 70, 51, 30, 22, 18, 15, 7.5, 4

Rated current A: ≤0.6 for all conditions

Maximum torque Kg.cm: 0.9, 1.6, 2, 7.5, 10, 13, 18, 30, 45

Stall current A: 1.7 for all conditions

Package includes: 1 x worm gear motor
