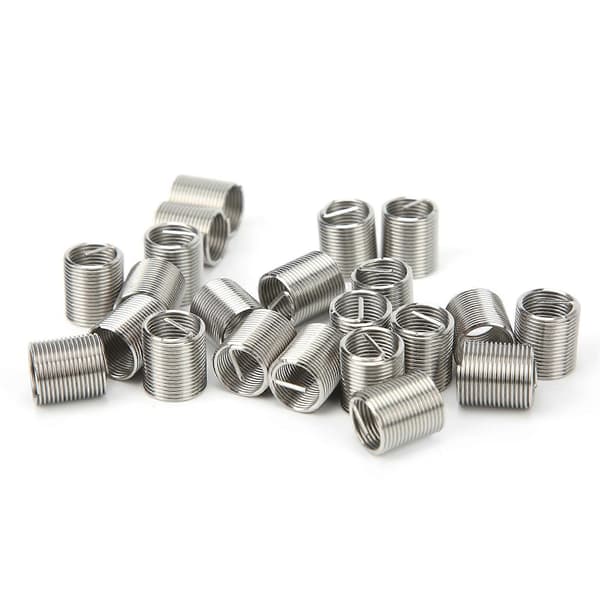

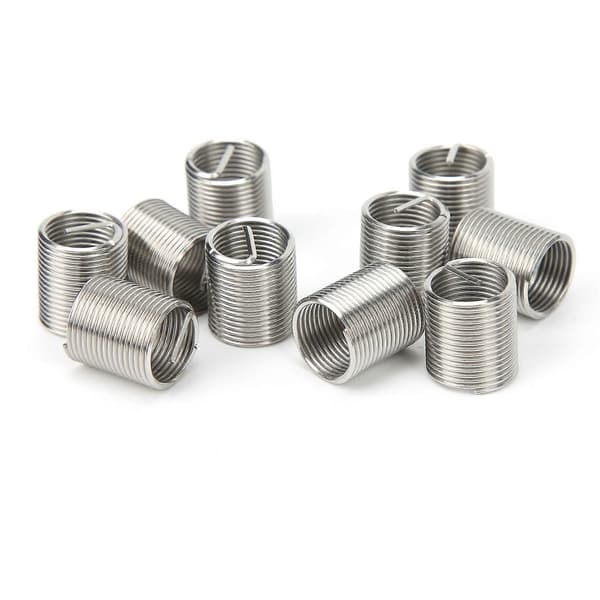

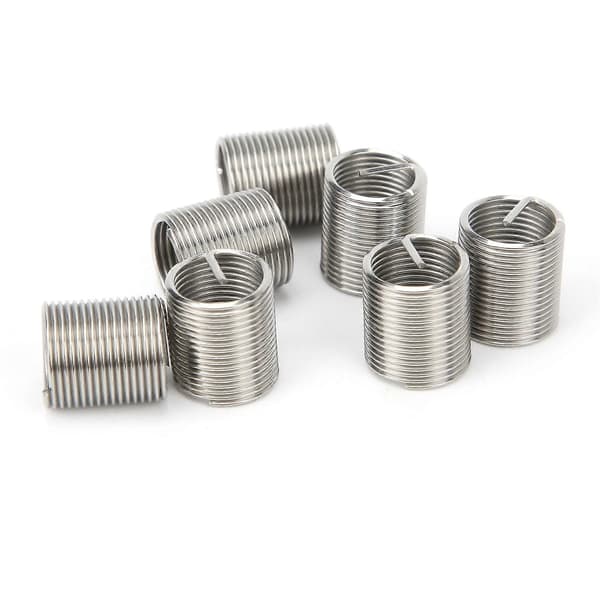

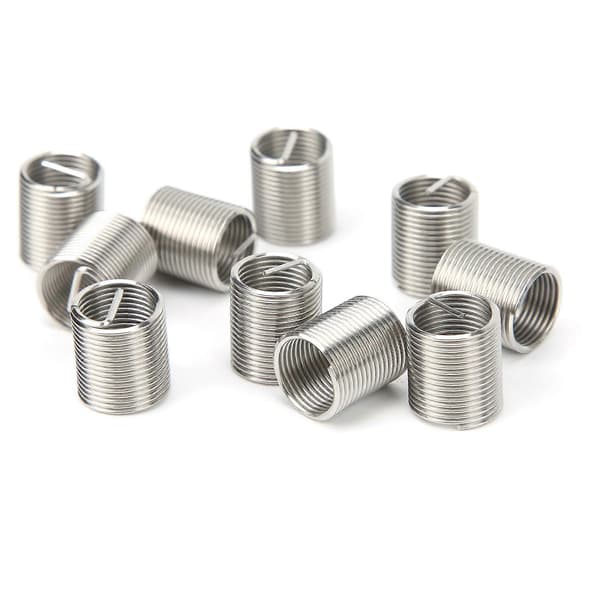

Item Type: Thread Inserts
Material: SUS304
Model: M10x1x2D
Thread Specification: M10x1 (mm)
Length after installation: Approx. 20 mm / 0.8 inches
Number of turns before installation: 16.5
Outer diameter before installation: Approx. 12 ~ 12.5 mm / 0.5 ~ 0.5 inches
Diameter of drill for installation: Approx. 10.3 mm / 0.4 inches
Specification: For example: M3x0.5X1.5D, which means that after the screw set is completed, the internal thread is M3, the pitch is 0.5, and the length is 1.5D (the length refers to 1.5 times the diameter, i.e., 1.5x3=4.5 mm), the length here refers to the length after installation.
How to use:
1. Drilling
Use the drill of the size specified in the parameter table of the wire thread insert to drill the hole. Be careful not to drill the hole into a cone shape. The chips generated by the drilled hole must be blown out with compressed air. After drilling, the countersink should not exceed the depth of 0.4 pitch. Too large a countersink is not favorable for the screwing of the wire thread insert.
2. Tapping
Use special taps for wire thread inserts to tap. The depth of the tapping must exceed the installation length of the thread inserts. After tapping, use a compressed air spray gun to blow out the debris. When the tapping accuracy is high, check the tapped bottom hole with a special bottom hole plug gauge for wire thread inserts.
3. Installation
Put the wire screw sleeve into the installation wrench (figure 5 on the right), insert the wire screw sleeve's installation star handle into the guide bar groove of the installation wrench, and turn the handle of the installation wrench to screw the wire screw sleeve into the screw hole. For the installation of M14x2 or more chamfered thread inserts, you can use the simple T-slot tool to install; Note: During the installation and screwing of the thread inserts, there should be no pressure in the vertical direction to prevent jumping teeth. The correct method is to slowly screw in the thread rotation direction.
4. Remove the handle (break off the mounting handle)
Use a breaker to break the mounting handle. Use about 200g of coconut to hit the breaker instantly, and the handle can be removed. Do not use the mounting wrench to rotate in the opposite direction. Do not break the mounting handle. This situation is very easy. As a result, the tail shank was broken and the thread was pulled out.
5. Unscrew
When installation problems occur during the installation of the wire thread insert (such as jumping teeth), the thread insert must be removed and a special sleeve remover should be used to remove the wire thread insert.
1Produce a high-strength, wear-resistant, high-precision standard internal thread if you mount the wire screw set in the screw hole of the aluminum alloy workpiece and other materials
2You can repair the threaded hole cost-effectively when a thread error occurs or a damaged internal threaded hole is repaired
3The product is used to convert between metric and inch threaded holes, which is convenient and fast
4Wire thread inserts are also called threaded sleeves, stainless steel threaded sleeves, wire sleeves. Made of high-strength, high-precision diamond-shaped cross-section steel wire
5Applied to low-strength structural materials such as aluminum alloy, zinc alloy, alloy, copper, plastic, engineering plastic, etc. will significantly improve thread strength and wear resistance50 x Thread Inserts
