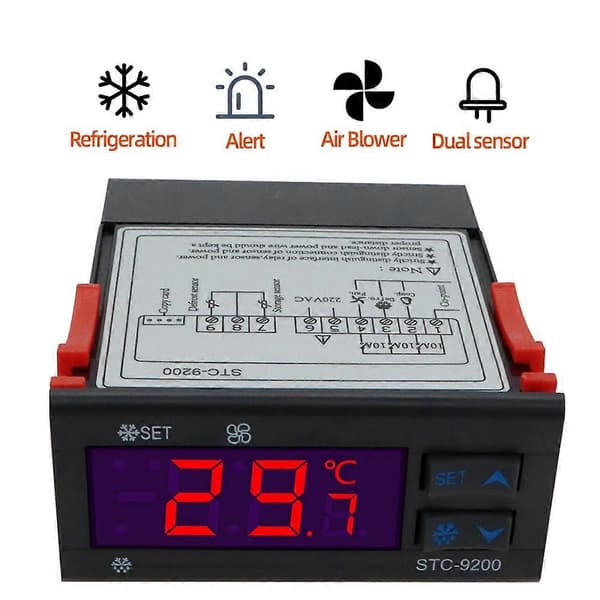

1. Multiple control modes for refrigeration, defrosting, and fan.

2. Differential control mode, and the resolution of temperature display is 0.1.

3. Multiple protection and alarm modes.

4. Digital display: Three-digit LED + Minus digit + Status indicator light (set cooling; defrost; fan).

5. User menu and administrator menu can be set separately. Not only convenient for the user, but also leaves enough room for adjustment of higher management.

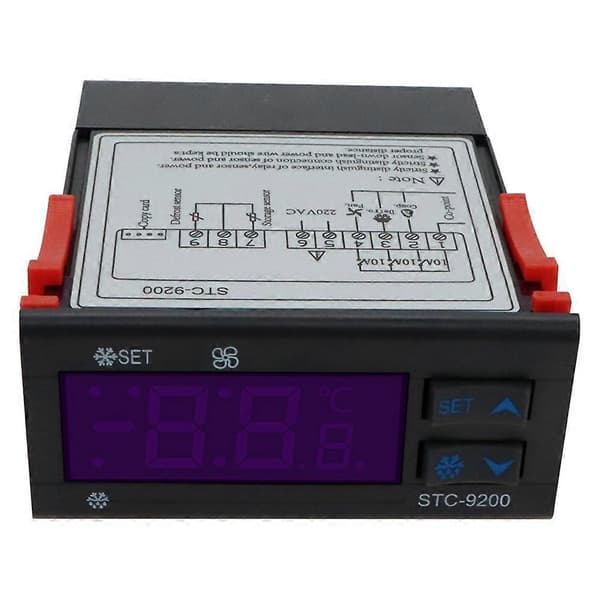

Model Number: STC-9200

Measuring range: -50 to 90 C

Setting range: -50 to 50 C

Accuracy: 1 C (-40 to 50 C), 2 C (50 to 70 C)

Supply voltage: 220Vac, 110Vac, 50/60Hz; 12Vac/dc, 24Vac/dc

Power consumption: Less than 5W

Output types: Three mechanical relays

Input types: Two NTC

Panel size: 75x34.5 mm

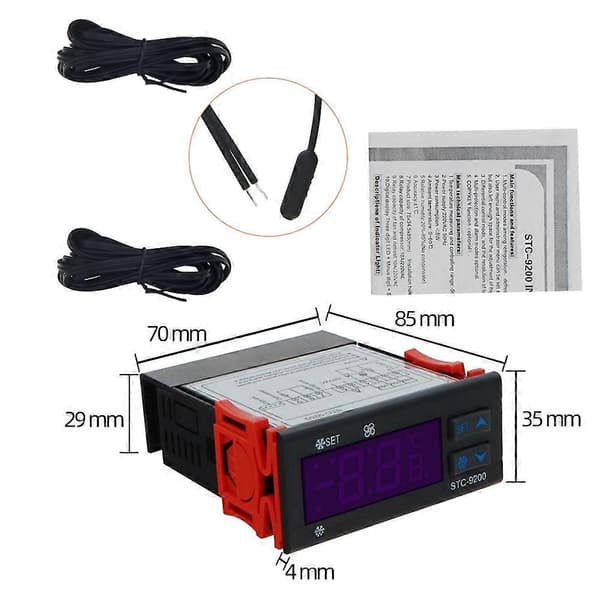

Overall dimensions: 75x34.5x85 mm

Perforation dimensions: 71 10x29 10 mm

Control: ON/OFF control

Setting: Touch switch

Front panel IP rating: IP65

Operating temperature: 0 to 55 C (32 to 131 F)

Operating humidity: 20% to 85% RH, non-condensing

Storage temperature: -25 to 75 C (-13 to 167 F)

Alias name: STC-9200 freezer temperature controller, defrost thermostat, freezer thermostat

:Temperature Controller

Display type: DIGITAL

Usage: Household

Power type: Charger

Style: Standing station

Color: Black

Material: Plastic

Package contents:

1 x STC-9200 Digital Temperature Controller

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
