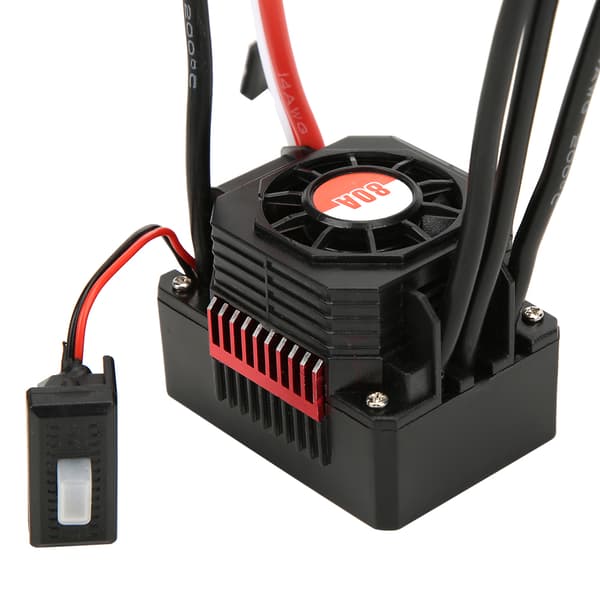

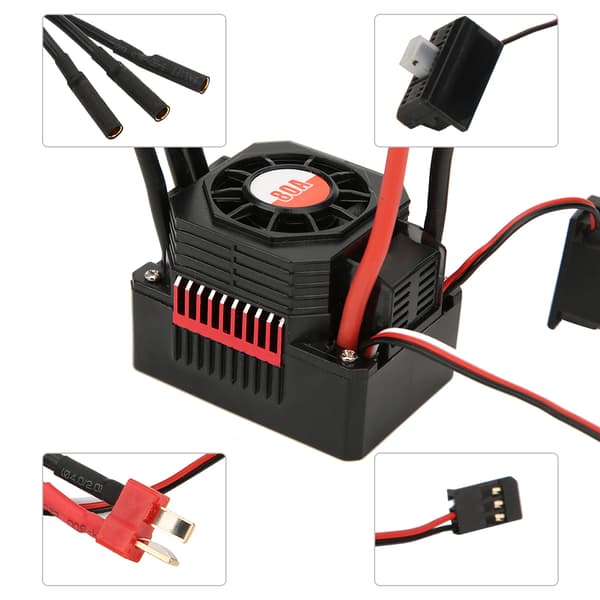

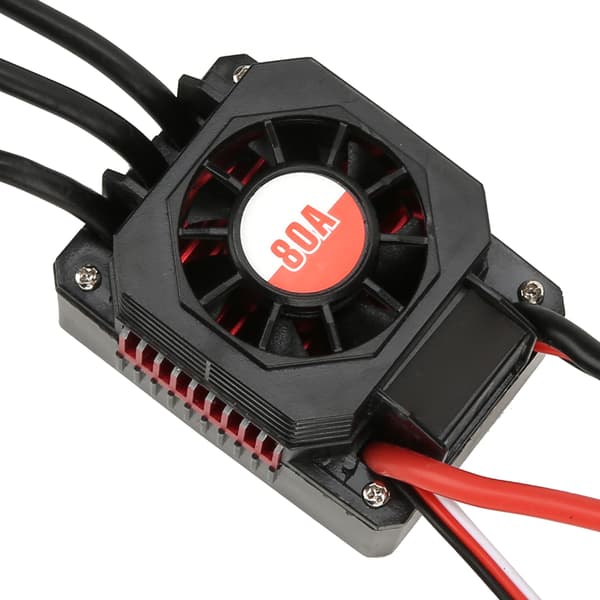

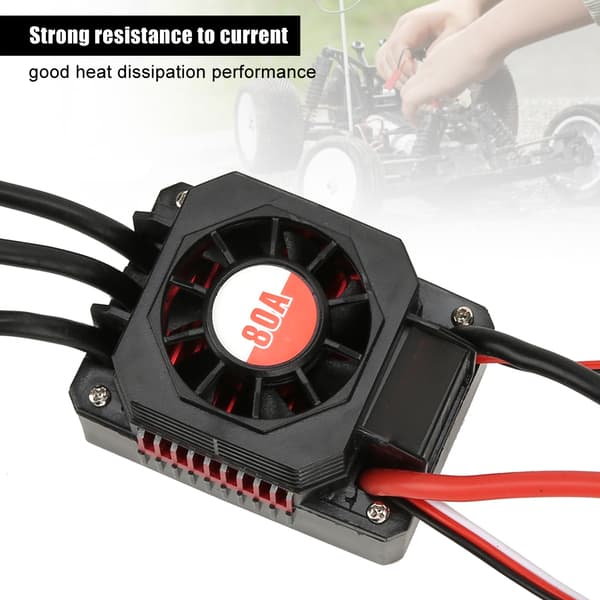

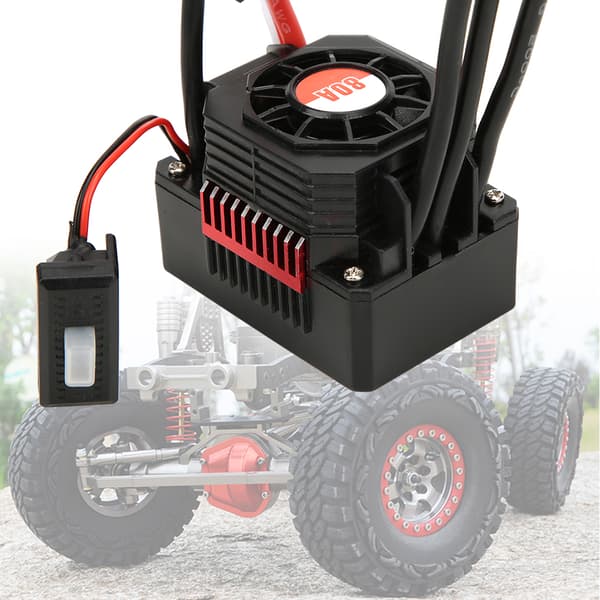

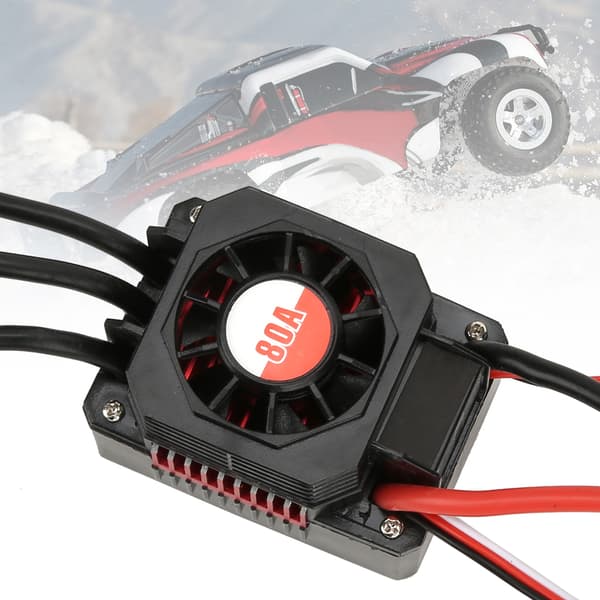

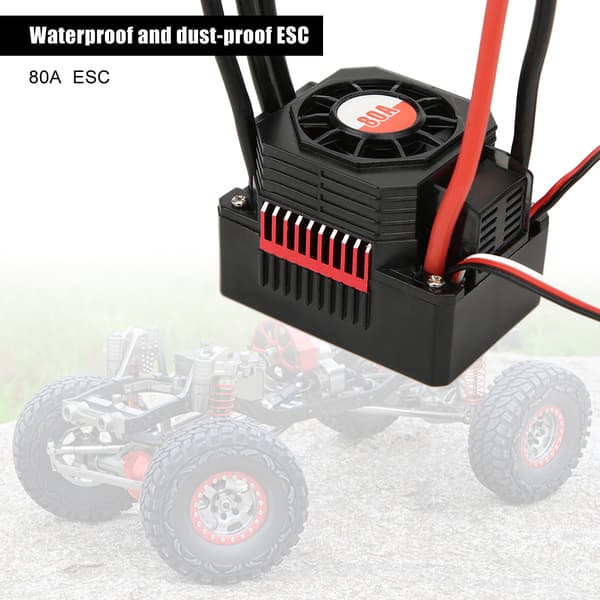

1. Waterproof and dustproof ESC, suitable for sensorless brushless motor. 2. Designed for RC models with excellent starting, acceleration, and linearity. 3. Strong resistance to current and good heat dissipation performance. 4. Multiple protection functions: low voltage cut-off protection/overheat protection/throttle signal loss protection/motor blocked protection for lithium or nickel batteries. 5. Easy to program and compatible with pocket program cards.
Cont.Current/Burst Current: 80A / 480A
Battery: 4-12 nimh batteries / 2-4s lithium batteries
Motor Type: sensorless brushless motor
For 2S Lipo or 6 cells NiMH:
Off-road/SUV/road car: motor size 3670 or smaller, KV <3000KV
For 3S Lipo or 9 cells NiMH:
1. Highway: motor size 3670 or smaller, KV <3000KV
2.
Off-road/SUV: motor 3670 or smaller, KV <2500KV
BEC output voltage: 5.8v / 3A (switch mode)
Resistance: 0.0005 ohm
Suitable for: 1:10 remote control car
Size: Approx. 51 x 40 x 40 mm / 2 x 1.6 x 1.6 inches
Weight: 84 g / 3 oz (approx)
1 x ESC
1 x Manual
