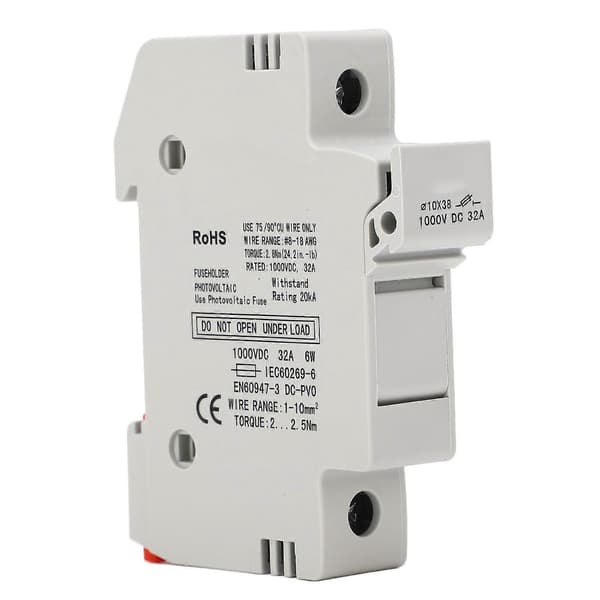

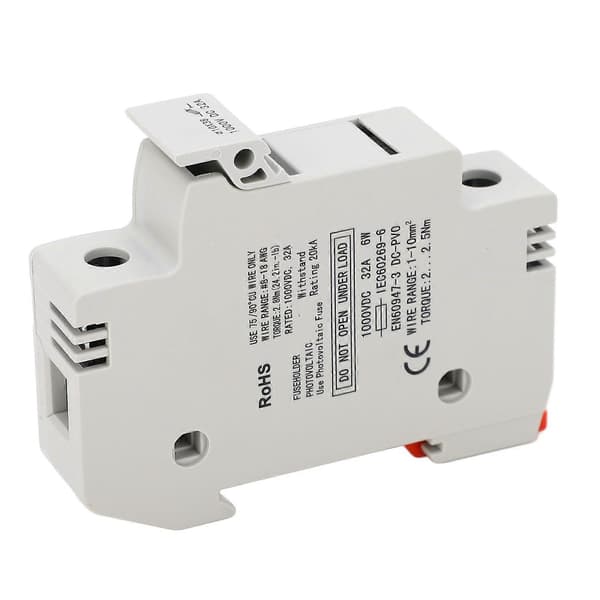

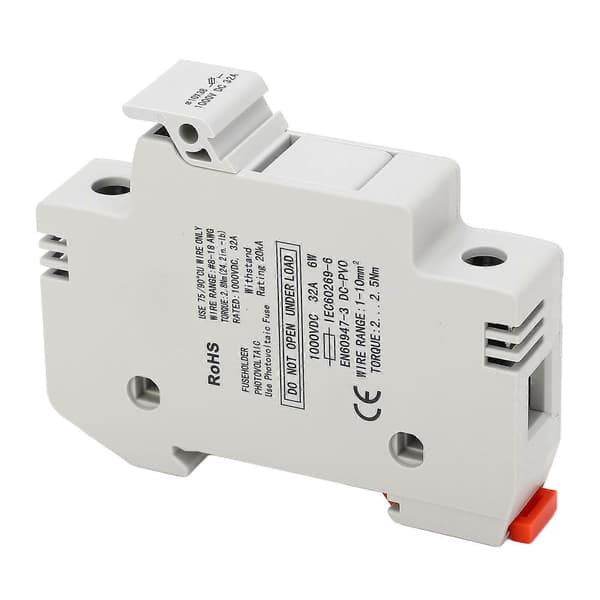

Item Type: Fuse Switch

Fuse Parameters:

Rated Current: 15A

Fuse Size: Approx. 10 x 38 mm / 0.39 x 1.5 inches

Operating L: gPV

Standard: GB/T 13539.6 IEC60269-6

Breaking Capacity: 20kA

Time Constant: 1-3ms

Fuse Parameters:

Rated Voltage: 1000 VDC

Rated Current: 32A

Applicable Fuse Core: Approx. 10 x 38 mm / 0.39 x 1.5 inches

Operating Level: gPV

Standard: GB/T 13539.6 IEC 60269-6

1Safe Protection: The circuit breaker with 20kA breaking capacity is used for short-circuit and open-circuit protection of charging converter systems.

2Wider Application: Allows flexible application in photovoltaic power plants, inverter systems, photovoltaic power generation systems and so on.

310 x 38 mm PV Fuse: The fuse tube is made of high-strength porcelain, which is filled with quartz sand and used as an arc extinguishing medium, very fast and reliable.

4Box with Contacts: The fuse base is made of pressed plastic housing with contacts, which contains fuse links and is connected by rivets, more stable in operation.

5Easy to Install: Compact in size, the lightweight fuse holder box with a neat appearance can be very conveniently installed within minutes.1 x

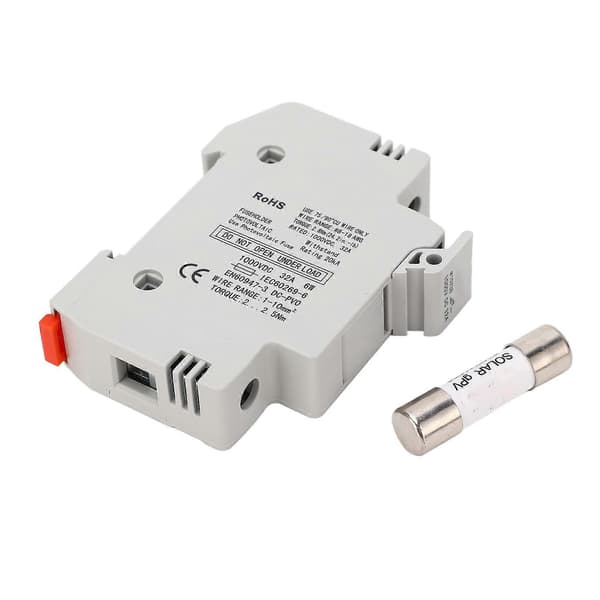

Fuse Switch Case

1 x PV Fuse
