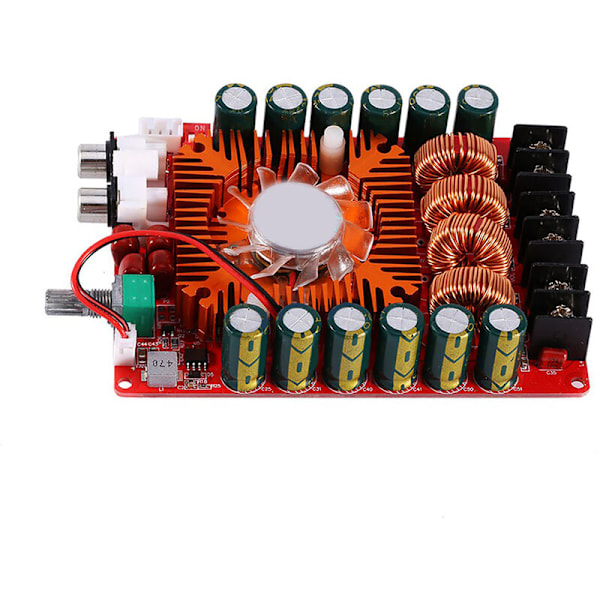

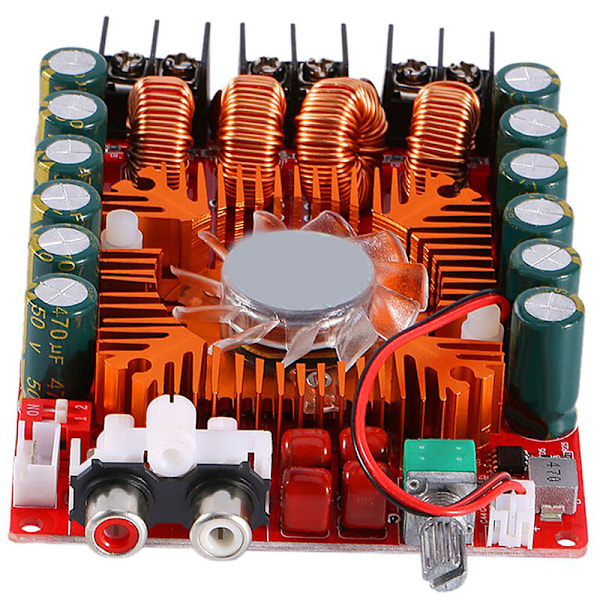

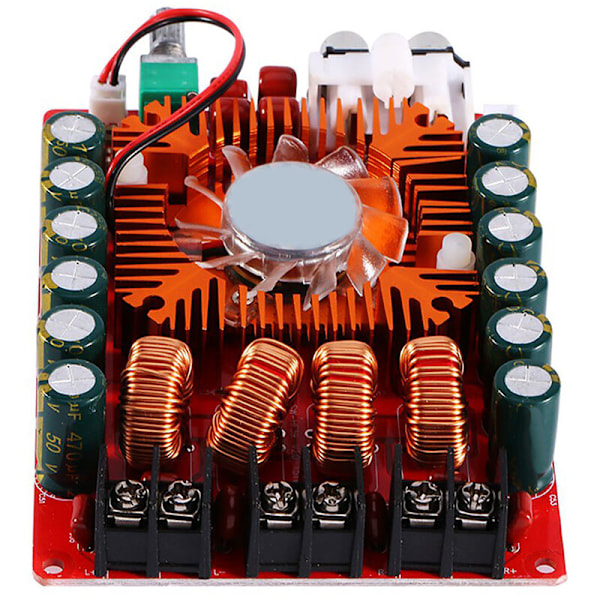

TDA7498E 160W+160W High Power Dual Channel Audio Stereo Power Amplifier Module

1. High output power digital amplifier board2. DC 15-36V power supply, with reverse polarity protection 3. When the temperature of the heat sink rises to a certain degree, the cooling fan will work4. Support BTL mode, 36V 3ohm for single channel with 220W output5. Two-channel stereo, sound quality is very good

Specification:

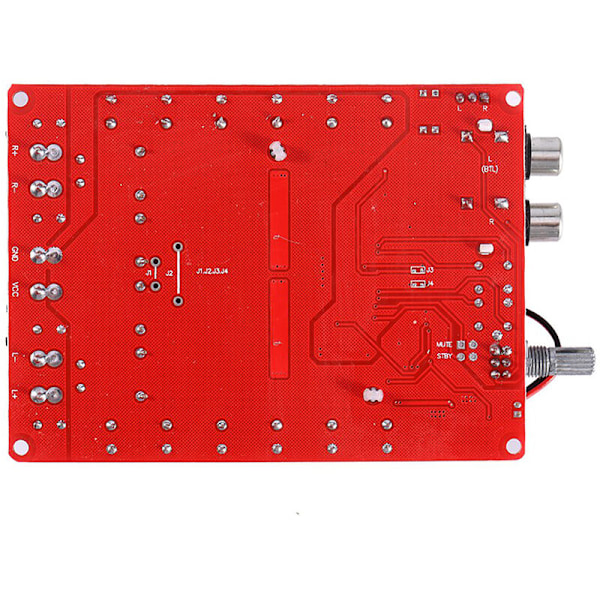

Description:The sound quality is very good, and it can drive 4/6/8 ohm speakers. It has sufficient and high output power 2 x 160W. It supports BTL mode, and when the heat sink temperature rises to a certain degree, the cooling fan will work.Features:1, High output power digital amplifier board.2, Wide voltage input, DC15-36V, with reverse polarity protection.3, When the heat sink temperature rises to a certain degree, the cooling fan will work.4, Support BTL mode ( J1, J2, J3, J4 on the back of amplifier board should be shorted), 36V 3ohm for single channel with 220W output.5, Two-channel stereo, sound quality is very good.Features:Amplifier chip: TDA7498EOperating voltage: DC 15-36V (recommended 32V, 8A)Output power: 2x160WNumber of channels: Two-channel stereoEfficiency: 85%Applicable speaker impedance: 4/6/8 ohm (8 ohm is the best)PCB board size: 108 x 78mm / 4.25 x 3.1\"Weight: 172g (approx.)Package includes:1 x Digital Amplifier Board1 Set accessoriesNote:

1. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
