Features:
Supports scanning screen code and paper code. High-performance chip, super decoding ability, can scan paper and film barcode, high reflection and low brightness screen code.

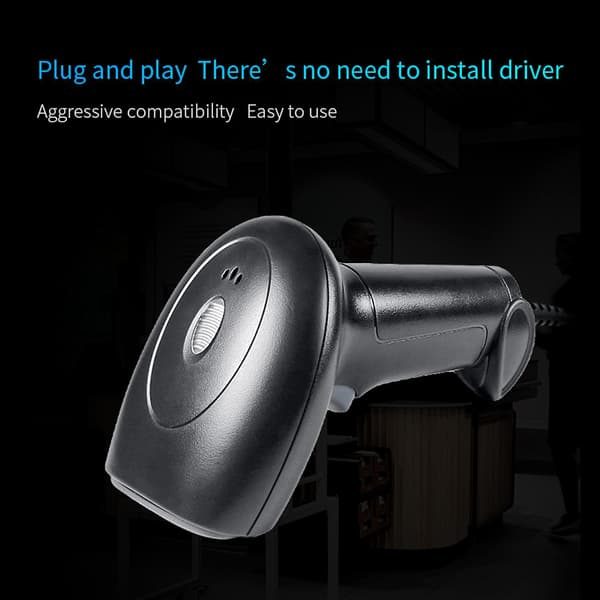

Plug and play, no driver needed, compatible with Linux, Android, Windows XP/7/8/10, MacOS.

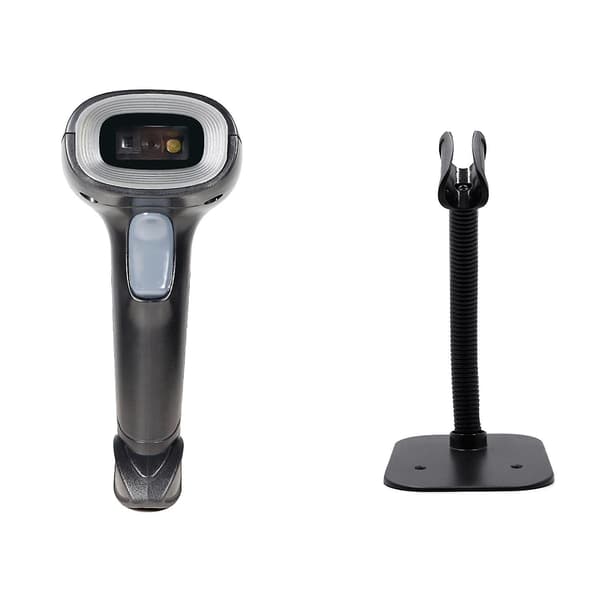

Comes with an ergonomically designed stand for hands-free scanning, flexible and adjustable, comfortable grip feeling.
Easy to install, widely used in markets, warehouses, libraries, express and logistics industry, retail, medical management, etc.
Strong decoding ability, supports 1D (Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code 128, UPC-A, UPC-E, EAN -8, EAN -13, MSI, ISSN, ISBN, GS1 DataBar) and 2D (PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix)
Specification:
Model: HS22

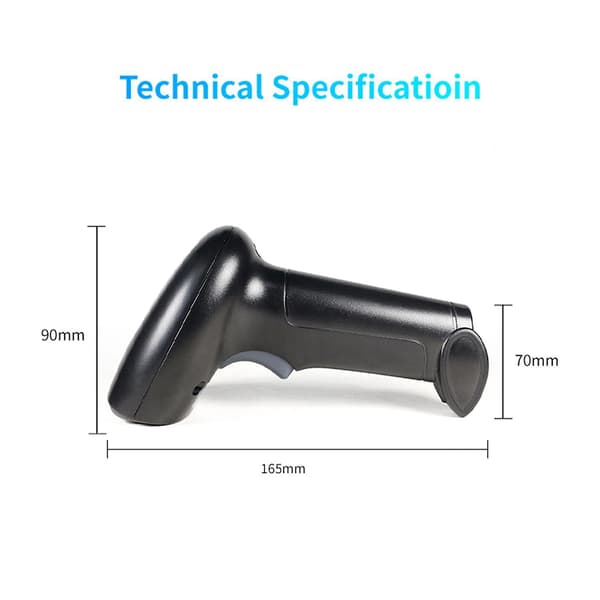

Size: 165mm(W)×70mm (D)×90mm(H)
Weight: 160g
Image Sensor: 640*480 CMOS
Illumination: White LED
Focus: Red LED
Support System: Linux，Android，Windows XP/7/8/10, MacOS
Illumination: White Led
Decoding Types:
2D: PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix
1D: Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code 128, UPC-A, UPC-E, EAN -8, EAN -13, MSI, ISSN, ISBN, GS1 DataBar
Recognition Accuracy: ≥5mil
Depth of Field:
35mm~ 190mm EAN-13 (13mil)
EAN-13 (13mil) PDF417 (6mil)
25mm~60mm Code39 (4.7mil)
20mm~75mm Data Matrix (10mil)
20mm~90mm QR Code (15mil)
Mini Print Contact: ≥20%
Scanning Angle: Tilt ±70°, Yaw ±70°, Rotate 360°
FOV: Diagonal 52.1°(D), 43.1°(H)
Interface: USB
Operating Voltage: DC 5V ±5%
Operating Temperature Range: -10℃~+60℃
Storage Temperature Range: -20℃~+70℃
Operating Humidity Range: 5%~95%
Ambient Light Intensity: 0~100,000LUX
Package Size: 188x110x85mm/7.4x4.3x3.3in
Package Weight:373g/13.1oz
Packing List:
1 x Barcode Scanner
1 x Stand
1 x USB Cable
