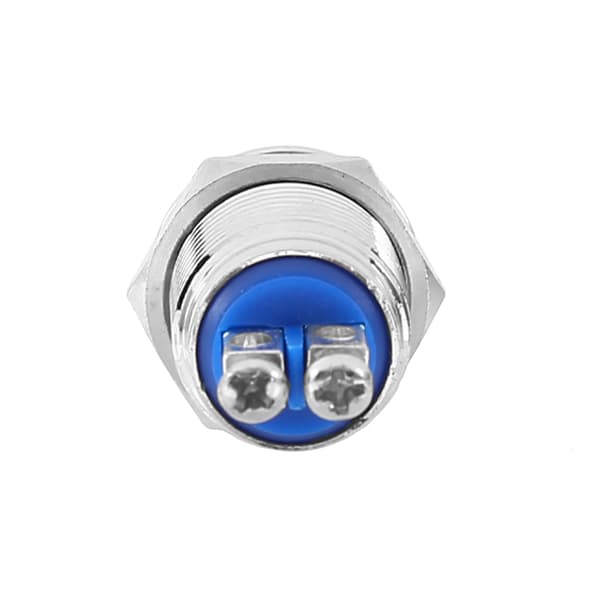

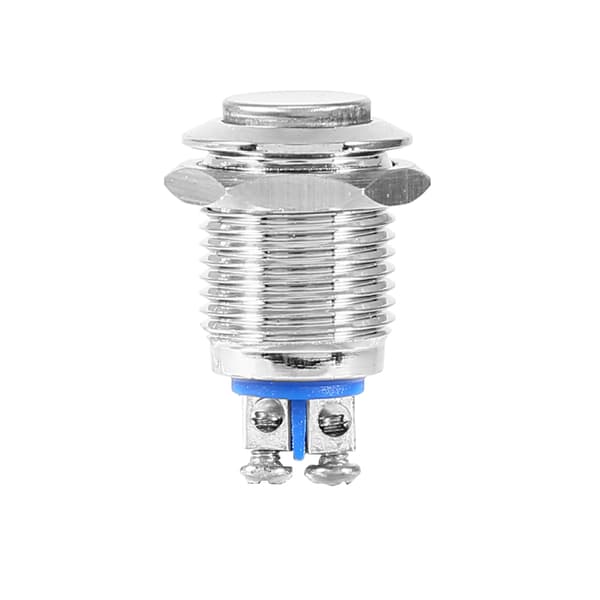

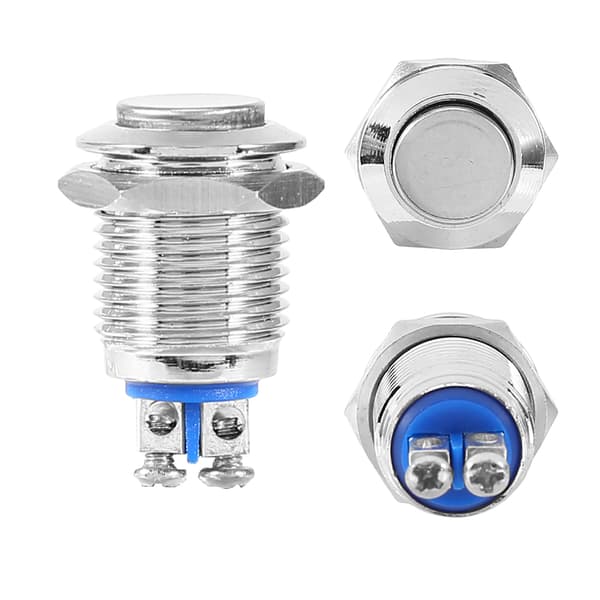

The push button is a simple switch mechanism for controlling some aspect of a machine or a process. The buttons are made of hard material, durable and reliable.
Features:
Stable and reliable performance.
The type is easy to disassemble.
Can be cleaned and maintained conveniently.
Excellent quality and long service life.
Widely used for circuit control in electromagnetic starters, contactors, relays and other electrical circuits.
Specification:
Mounting hole size: 12mm / 0.47 \"
Switch rating: 2A/36VDC
Contact configuration: 1 NO
Operation type: Momentary
The front shape: High Round
Shell material: Nickel-plated brass, Stainless steel
Protection degree: IP65, IK08
Terminal type: Pin terminal
Switch type: Two terminal break points slow moving contact
Contact resistance: ≤50mΩ
Insulation resistance: ≥1000mΩ
Dielectric strength: 2000VAC
Operating temperature: -20℃ to +55℃
Mechanical life: > 1,000,000 times
Electrical life: > 200,000 times
Operating pressure: About 4N
Contact: Alloy
Button: Stainless steel
Casing: Stainless steel / nickel-plated brass
Base: PBT
Package includes: 1 x Push Button
