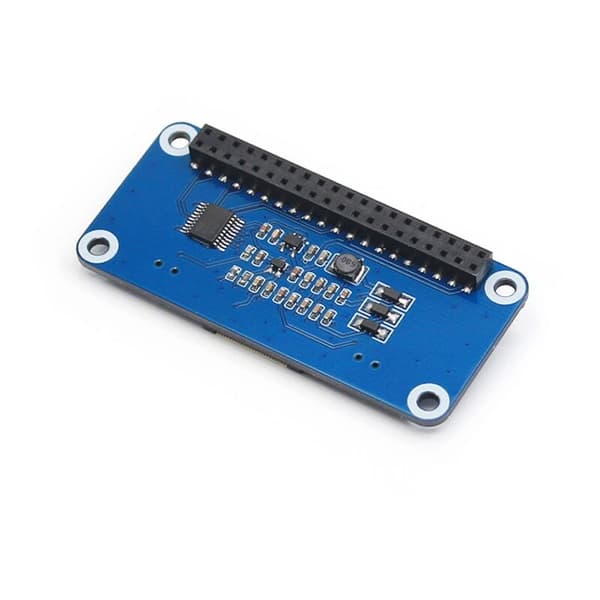

[Product Features]: Based on standard Raspberry Pi interface design, compatible and can be directly inserted into Raspberry Pi 2 Generation B / 3 Generation B / Zero / Zero W
Introduce SPI control interface, can access Raspberry / Arduino / Nucleo and other main control boards
Provide complete support information manual (example programs such as Raspberry / Arduino / STM32)

[Product Parameters]
Operating voltage: 3.3 V
Communication interface: 3-wire SPI, 4-wire SPI

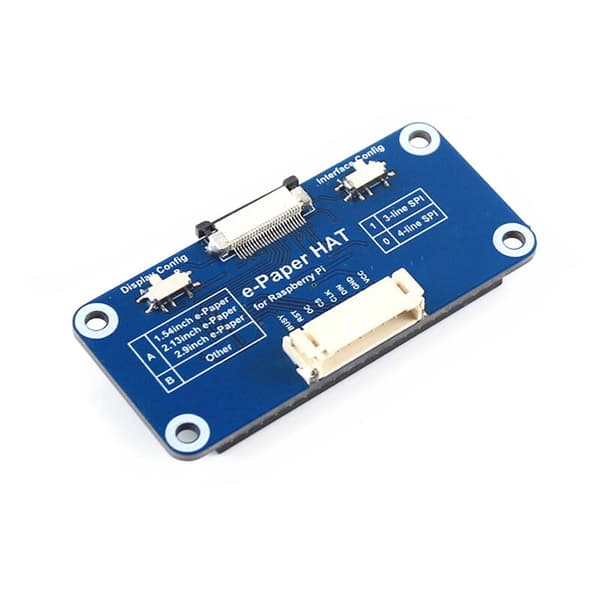

[Interface Description]
VCC: 3.3 V
GND: GND
DIN: SPI communication MOSI pin
CLK: SPI communication SCK pin
CS: SPI chip select pin (active low)
DC: Data / command control pin (high level means data, low level means command)
RST: external reset pin (low reset)
BUSY: busy status output pin (low level means busy)
Color: blue
Material: ABS
Size: 55x21x15mm

Package Contents:

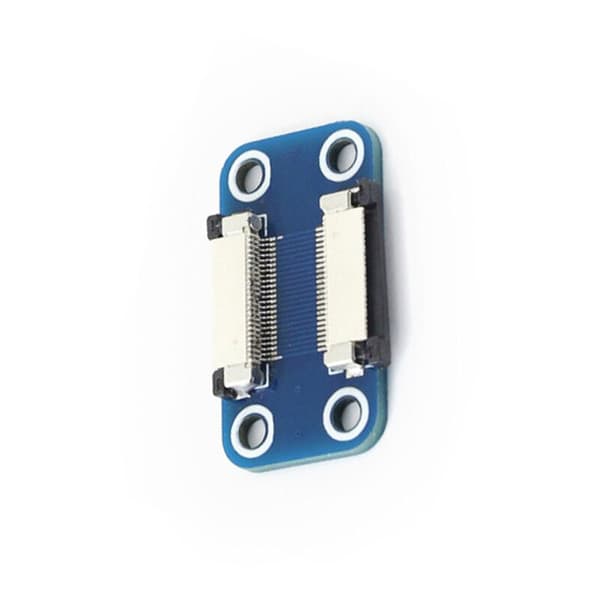

1 x Ink Screen Driver Board Module

Only the above package content, other products are not included.
