0.1 seconds (min) to 999 minutes (max) continuously adjustable.

This product is easy to use, many functions, but everyone needs to carefully read the instructions, a very useful product.

To achieve rapid on-off of the circuit, an unlimited number of switching;

The wiring and switching process produces no noise, no spark, no electromagnetic interference;

Compared with electromagnetic relays, longer service life;

The dual MOS parallel drive, lower resistance, more current, strong power; at room temperature, operating current up to 15A, power up to 400W, to meet the most use of the equipment;

Can be used to control the motor, lights, LED, DC motors, micro-pumps, solenoid valves, etc., very convenient.

Wide voltage input (5 ~ 36V), most devices can be used, very convenient;

The interface is clear and simple, powerful, easy to understand, almost meet all your needs;

Emergency stop function ( \"STOP \" button); With reverse polarity protection, reverse polarity will not burn the product.

Increase the sleep mode, if this mode is enabled, without any operation within 5 minutes, the monitor automatically turns off, any key wake-up;

You can set different OP, parameters, which are independent of each other and automatically saved;

After the module is powered off, all parameter settings are not lost.

Color: gray

Material: Electronic components + plastic

Size: 70 x 40 x 23 mm

Package Contents:

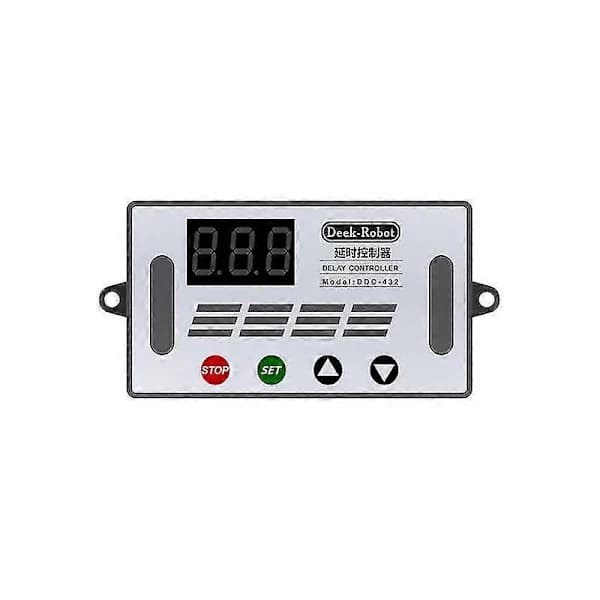

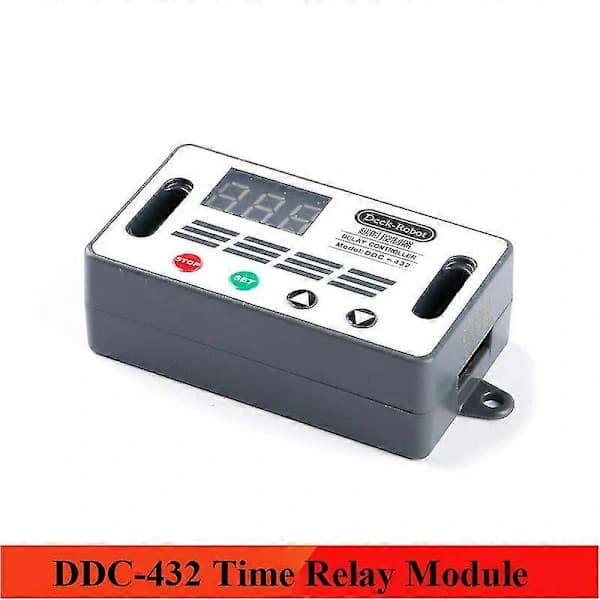

1 x DDC-432 Time Relay

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
