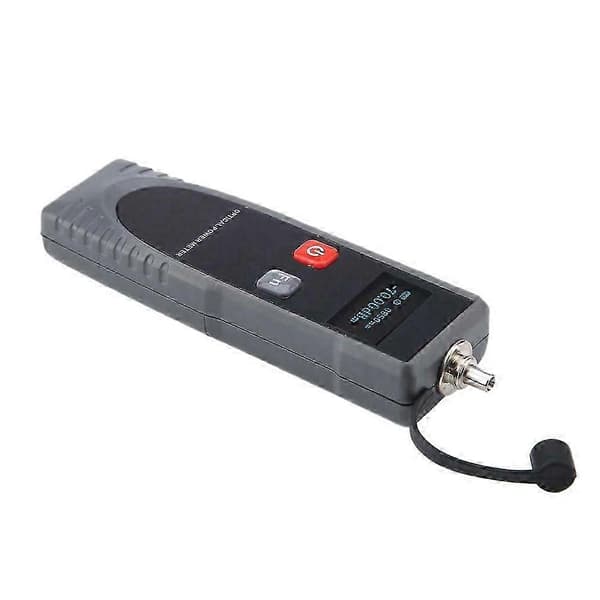

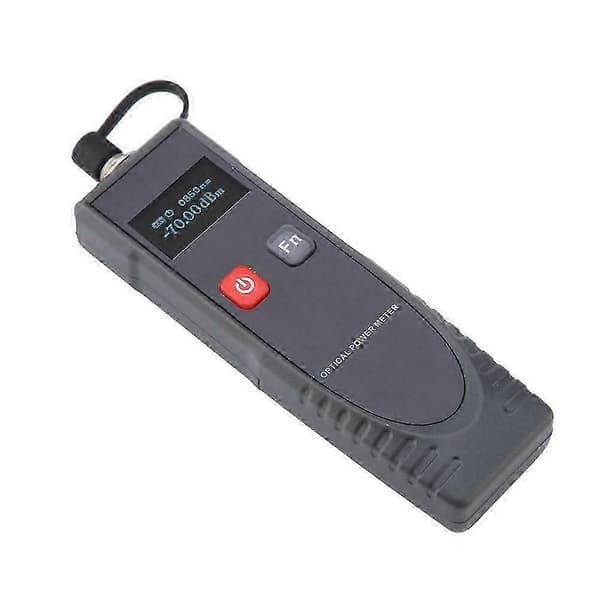

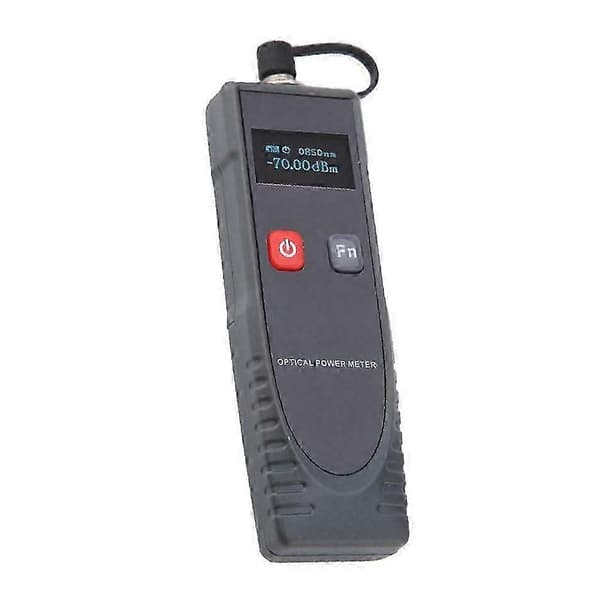

Designed to measure the power of an optical signal. It is portable and has simple user functions, designed for those who maintain fiber optic networks. This unit is often used with its 6 wavelength selections. The measurement is a real-time measurement. It is a continuous test and all changes will be recorded.
Applications: fiber optic technology and sensor research, production and research of optical elements and other fiber optic technology.
Color: dark gray
Material: ABS + electronic components
Features:
6 Optical wavelength selections --- 850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Switch between absolute power and relative power readings
Compact design, easy to carry, use and low power consumption
Large LCD screen displays test results, easy to read
Ergonomic with universal optical interface design
FC converter for FC/SC/ST interface
With automatic shutdown (optional) and battery indicator light
Measurement range: -70 ~ 6dBm
Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Resolution: 0.05
Accuracy:
or equal to -48dBm, 2dBm
Less than or equal to -48dBm, 3.5dBm
Units: dBm, dB
Operating environment: or equal to -48dBm
Temperature: 0~40C (32~104F)
Humidity: 5~95%
Operating environment: Less than or equal to 48dBm
Temperature: 0~32C (32~89.6F)
Humidity: 5~80%
Storage environment
Temperature: 0~40C (32~104F)
Humidity: 5~95%
Automatic shutdown (10 minutes inactive)
Power: 2 x 1.5V AAA battery
Weight: 59.22g (including battery)
Package contents:
1 x Optical power meter
2 x 1.5V AAA battery
1 x English user manual
Only the above package content, other products are not included.
