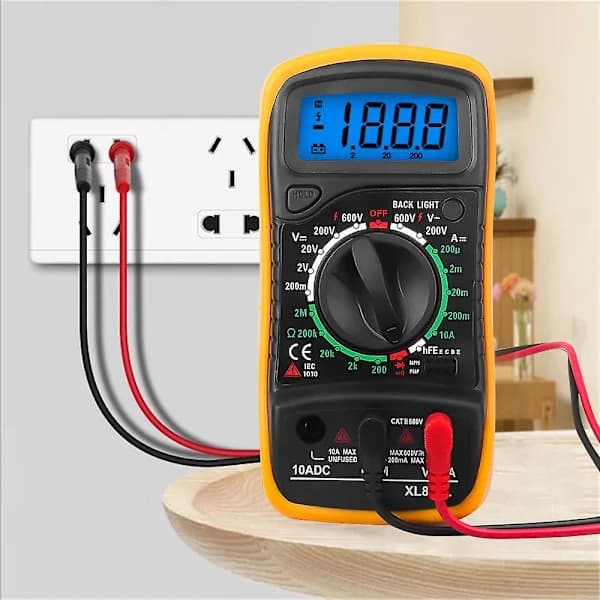

XL830L

Features:

- A digital multimeter is a practical tool for electricians.

- It is easy to operate and the readings are displayed directly on the screen.

- It can be used to check all types of circuit boards. It is also an ideal teaching tool for students.

- LCD display 15 mm high.

- Maximum display: 1999, automatic polarity display.

- Portable and compact design, overload protection on all ranges.

- Diode assembly / Transistor PN junction test / HFE transistor test.

- Continuity test with audible ringing in the circuit.

- Low battery voltage indication.

- DC voltage: 200 mV / 2 V / 20 V / 200 V ± 0.5 %, 600 V ± 0.8 %.

- AC voltage: 200 V / 600 V ± 1.2 %.

- DC current: 200 μA / 2 mA / 20 mA ± 1 %, 200 mA ± 1.5 %, 10 A ± 3 %.

- Resistance: 200-2k-20k-200k-2mΩ ± 1.0 %

- Fuse protection: F-200 mA / 250 V.

- Operating temperature: -0 to 40.

- Over-range indication: only the figure \"1 \" on the display.

- Polarity indication: \"- \" displayed for negative polarity.

- Low battery voltage indication: - / + display.

- Battery: 9 V (battery not included).

- Dimensions: 138 mm x 69 mm x 31 mm approximately.

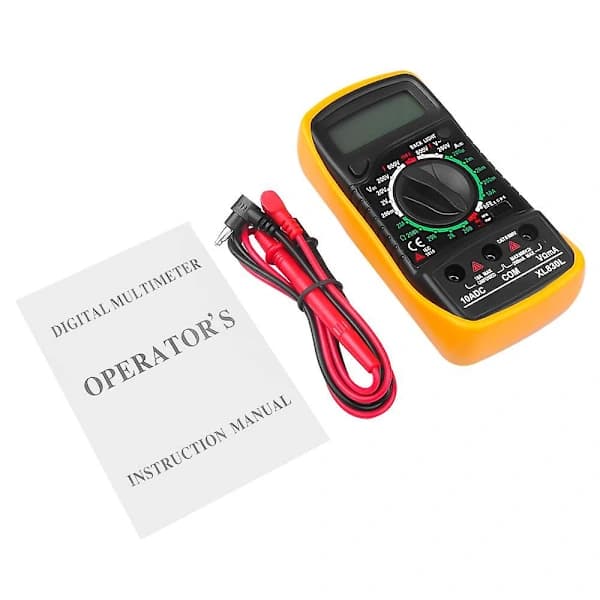

Package contents

1 x LCD digital multimeter

2 x test leads

1 x user manual



Please note that this item comes with bubble bag packaging, without retail packaging, but rest assured that we pack it well before shipping!
