1. Quickly identify the one-dimensional code and two-dimensional code on the screen
2. No plug-in required, fast invoicing
3. Non-slip and drop-resistant design
4. Large reading window
5. Integrated design of body and data cable. Compatible with multiple systems
Pixel: 640 x 480CMOS
Advantages: Scan mobile phones / tablets / Alipay / WeChat / paper barcodes
Interface type: USB / RS232 / TTL
Environment light intensity: 0-100000
Illumination lamp: no illumination mode, reading light mode, constant light mode
Code system: 1D: Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, -Plessey, GS1-DataBar (RSS), (RSS-14, RSS-Limited, RSS-Expand)
2D: PDF417, Data Matrix, QR, -QR
Reading accuracy: greater than or equal to 5mil
Typical reading depth: QR CODE (30MIL), 0-15CM
CODE 128 (10MIL), 0-12CM
Barcode sensitivity:
Tilt: +/-50 degrees@ 0 degrees Roll and 0 degrees Skew
Rotation: +/-360 degrees@ 0 degrees Pitch and 0 degrees Skew
Deflection: +/-60 degrees@ 0 degrees Roll and 0 degrees Pitch
Minimum contrast: greater than or equal to 30%
Prompt mode: buzzer, LED indicator
Working voltage: 5VDC+/-5%
Working current: 150mA+/-15mA
Standby current: 80mA+/-2mA
Maximum current: less than 200mA
Environmental parameters:
Working temperature: -20Celsius - +50Celsius
Storage temperature: -40Celsius - +70Celsius
Relative humidity: 5%-95% (no condensation)
color:White
Material:ABS
size:102 x 82 x 73mm

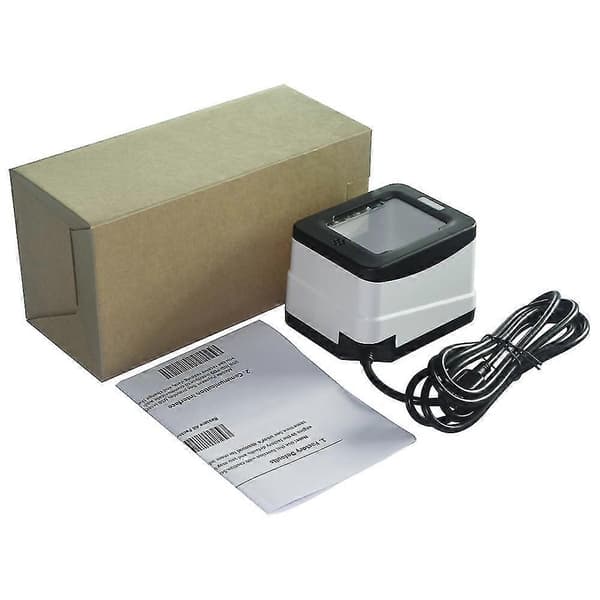

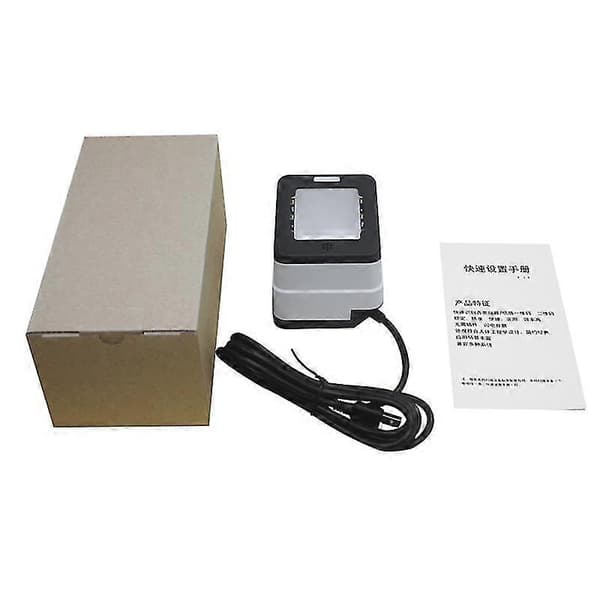

Package contents:
1 x barcode scanner
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
