General Description

This STC-3008 temperature thermostat controller is a digital device designed to manage two devices simultaneously thanks to its independent sensors and outputs. It is powered by a 12V DC power supply and can support an output relay contact capacity of up to 10A. This model offers heating and cooling modes that can be switched automatically, making it ideal for various equipment requiring temperature control.

Technical Specifications

Power Supply: DC 12V

Output Relay Contact Capacity: 10A max

Temperature Control Range: -55 ~ 100 ℃

Measurement Accuracy: ± 0.1 ℃

Temperature Control Accuracy: ± 1 ℃

Installation

This controller is easy to program, allowing you to set start and stop temperatures. It is also possible to set a delayed start time to protect refrigeration equipment and activate a low/high temperature alarm for safe operation.

Applications

The STC-3008 is suitable for a wide range of applications, including:

Seafood processing machines

HVAC compressors

Freezers

Refrigerators

Air conditioners

Fermentation chambers

Chest freezers

Water chillers

Other Information

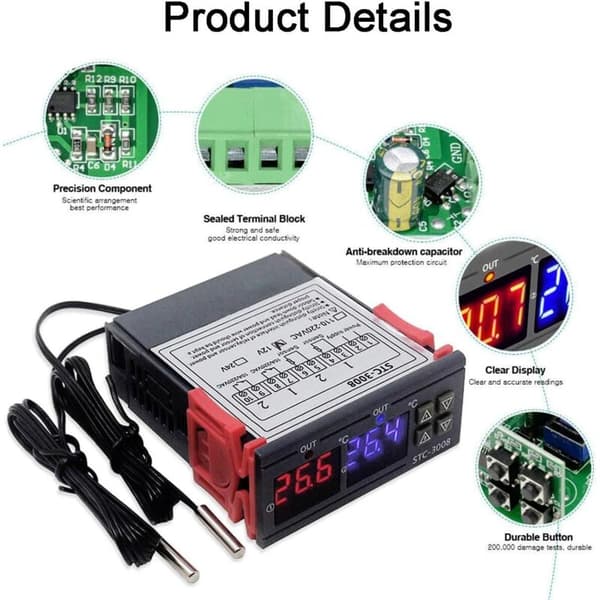

The temperature sensor is made of ABS and the plastic casing is flame retardant, offering high heat resistance and strong flame resistance, ensuring the safety of the device.
