Model: -1001B
Name: Mono 100W Bluetooth Audio Amplifier Board Module

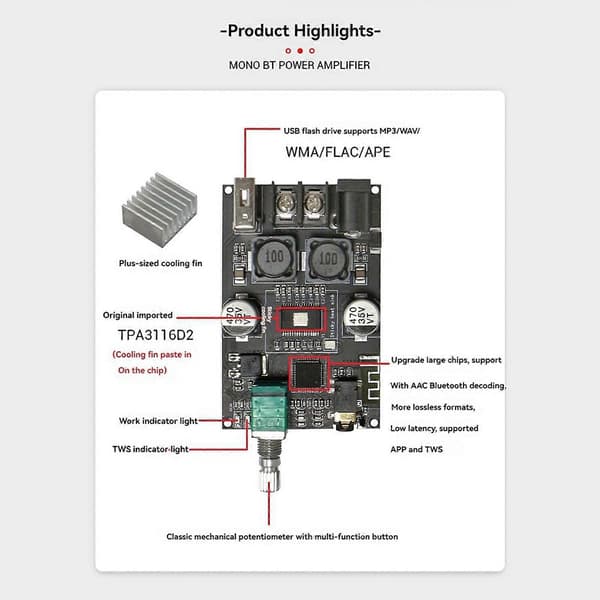

Amplifier chip: TPA3116D2
Bluetooth version: 5.1
Bluetooth transmission distance: 15 meters
Audio input: Bluetooth + AUX + U disk + USB sound card
Audio output: Mono 100W
Adaptive power supply: DC7-24V, 24A (not AC)
Adaptive speaker: 20-100W, 3-8 ohms
Volume adjustment: total volume with knob Single click: play/pause Double click: next song; triple click: enter or exit mode; long press: power off/on
Protection mechanism: input anti-reverse connection, overheating, overcurrent, short circuit, anti-static protection

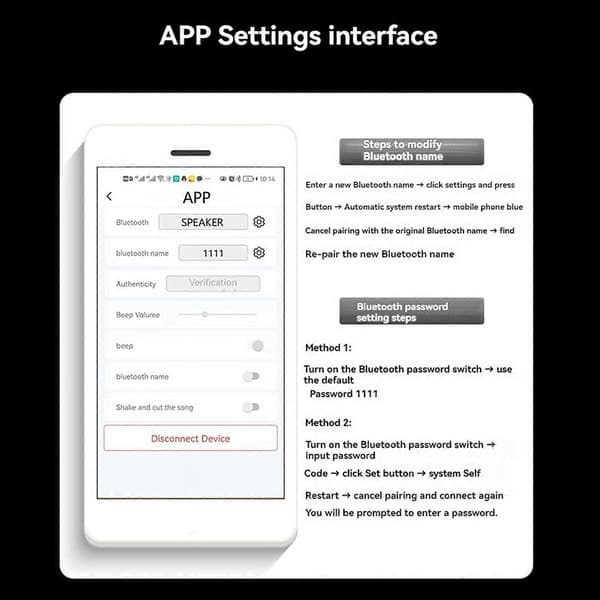

Featured function: supports APP. Change Bluetooth name, password setting, prompt volume adjustment, turn on/off prompt sound, sleep music, firmware upgrade, etc.

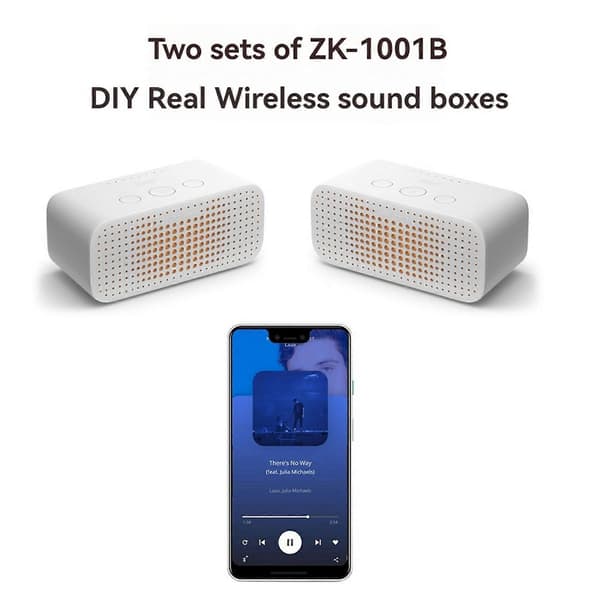

Pairing function, true wireless function allows two sets of speakers to be combined into left and right channels. Pairing, stronger spatial positioning.
Quantity: 1 set
Color: Black
Material: ABS
Package Contents:
1 * Circuit board
1 * Upper cover
1 * Lower cover
1 * Screwdriver
1 * Knob cap
1 * Heat sink
1 * Power adapter
1 * Copper package
1 * Screw package
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Upgraded large chip, supports AAC Bluetooth decoding, more lossless formats, low latency, supports APP and.
U disk playback function, open the U disk playlist, select songs at will, support shaking to switch songs.
Easily connect your audio system.
Mono Bluetooth amplifier board 100W.
5.1 chip, easier and faster connection, 15m transmission distance, more stable signal and faster transmission.
