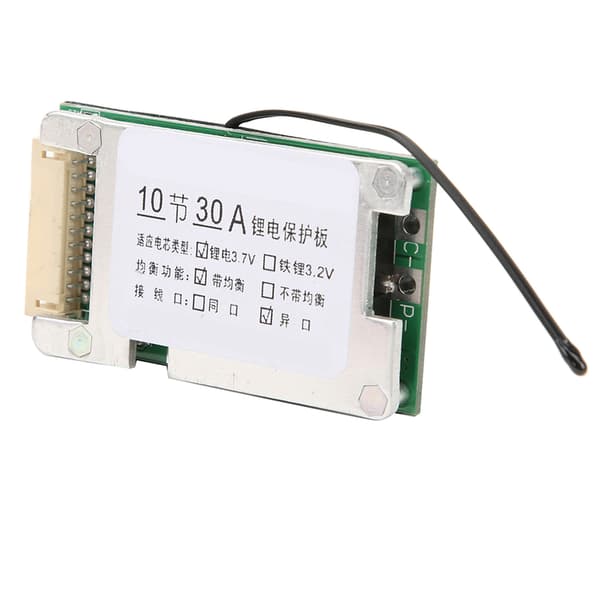

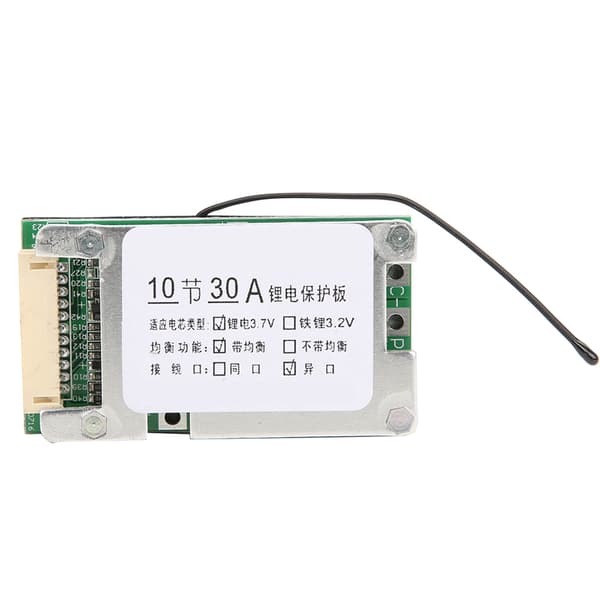

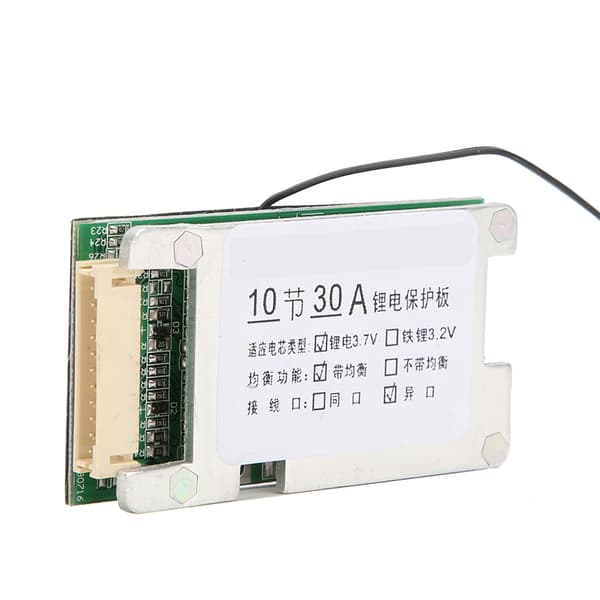

10S 36V 30A Li-ion Cell 18650 Battery Protection BMS PCB Board with Balance Function

-19 %

10S 36V 30A Li-ion Cell 18650 Battery Protection BMS PCB Board with Balance Function

Name: 10S 36V 30A Li-ion Cell 18650 Battery Protection BMS PCB Board with Balance Function
SKU: ZS-EU-0708001350
Price: 259 SEK
Availability: InStock

259 kr

Tidigare lägsta pris:

319 kr

I lager

Tis, 4 aug - mån, 10 aug

Säker betalning

Nöjd kund-löfte

30 dagars öppet köp

Produktbeskrivning

Welcome to our store!

1. The protection board is for 10 series cell Li-ion batteries, it can be used for 3.7V ternary batteries, manganese acid batteries, and cobalt acid batteries.
2. It has a balance function that ensures each battery cell is fully charged at the same time.
3. Supports overcharge protection, over-discharge protection, and short circuit protection.
4. It is suitable for electric car, electric assisted car, skateboard car, inverter, etc.
5. Suitable for multiple types of batteries, safe, reliable, and easy to use.
Features:
The protection board is for 10 series cell Li-ion batteries, it can be used for 3.7V ternary batteries, manganese acid batteries, and cobalt acid batteries.
It has a balance function that ensures each battery cell is fully charged at the same time.
Supports overcharge protection, over-discharge protection, and short circuit protection.
It is suitable for electric car, electric assisted car, skateboard car, inverter, etc.
Suitable for multiple types of batteries, safe, reliable, and easy to use.

Specifications:
Applicable voltage: 36V
Applicable power: <1000w
Maximum working current: 30A
Continuous maximum current: 20A
Over-discharge protection voltage: 2.6v
Overcharge protection voltage: 4.25v
Charging current: Maximum 10A
Balance voltage: 4.2v
Weight: 46g
BMS Protection Board Wiring Steps1. First, connect the batteries in series.2. Ensure that the voltage of each string is the same (the difference between the highest voltage and the lowest voltage is preferably within 0.1V), and the voltage range is between 3.2-4.0V.3. First, connect the distributed cable, connect according to the diagram, and insert the cable port into the board port after checking that it is correct (first connect the battery, then insert the board, the step cannot be reversed).4. Check whether the total positive voltage of the C port and P port to the battery is equal to the total voltage of the battery. If they are equal, the board works normally.5. Solder the battery's negative B- to the port marked B- on the board.6. Both the battery's output negative electrode and the charging negative electrode on the same port board are connected to the port marked C- on the board (the P port only floats).7. Separate port (different port) board, the battery's output negative pole is welded P-, and the charging negative pole is welded to the port marked C- on the board.

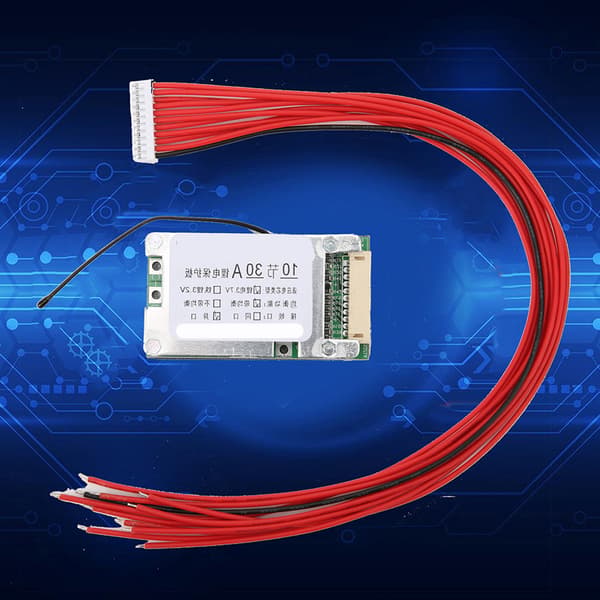

Package includes:

1 x Protection Board

1 x Cable

Note: Please note that the new type and the old type of this product will be sent randomly, and make sure you do not mind before ordering.

If you find any product problems after receiving the item, such as damage or incorrect quantity, please contact us immediately. We will do our best to provide you with satisfactory customer service.
