Features:

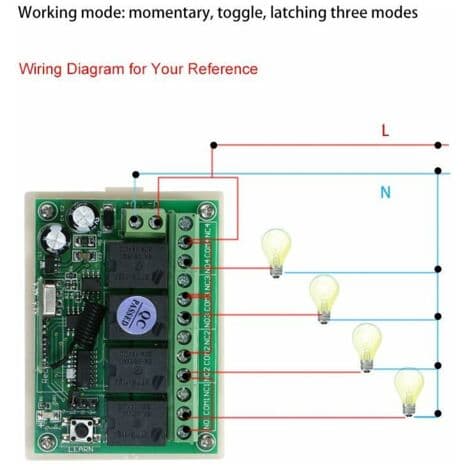

x Very easy to use, simple connection with wiring diagram.

x Supports remote control of up to 16 devices. It can connect electronic control locks, intercom doorbells, garage doors, light barriers, electrical devices, household appliances, motor controls, etc.

The door, turn off the light, open or close the curtain, etc.

x The four remote control buttons can each copy four different types of chips, which means one remote control can control four different types of installations.

x Operating mode can be changed by you: you can switch between momentary, toggle, and latching modes as needed.

x Code learning: it can work with a remote control of the same frequency, so you no longer have to worry about losing the remote control. (If the remote control is lost, buy one or two with the included card.)

Specifications:

Receiver:

Channels: 4

Input power: DC12V

Standby current: 6mA

Output current: 10A

RF frequency: 433MHz

Output power: DC / AC optional

RF operating mode: superheterodyne reception

Code system: Learning code (chip 1527); Fixed code

Receiving sensitivity: -105dBm

Decoding mode: MCU software decoding

Remote control storage: up to 16 pcs

Operating mode: Momentary, toggle, remote switch

Connection type: Fixed terminal

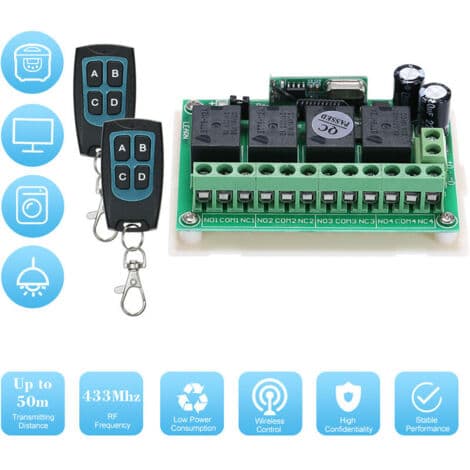

Output terminal: NO, NC, COM

Receiver board size: approx. 7.5 x 5.4 x 2.1 cm / (3 x 2.1 x 0.83)

Fuse box size: approx. 7.5 x 5.4 x 2.7 cm / (3 x 2.1 x 1.1)

Remote control:

Frequency: 433MHz

Range: 50 m (open space)

Battery: 2 x CR2016 3V (included)

Working actuator: 10mA

Shock resistance: 270K / 330K

Quantity: 1 piece

Remote control size (each): 5.8 x 3.2 x 1.2 cm

Information package:

Package size: approx. / 4.1 oz

Package list:

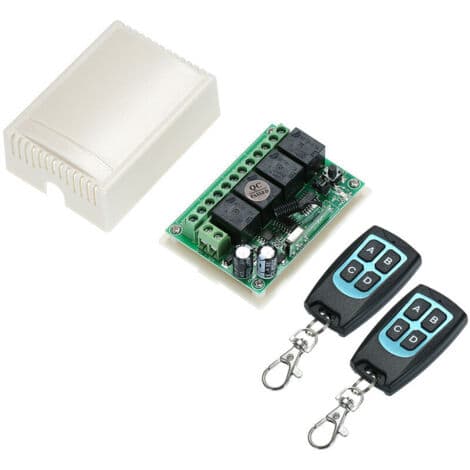

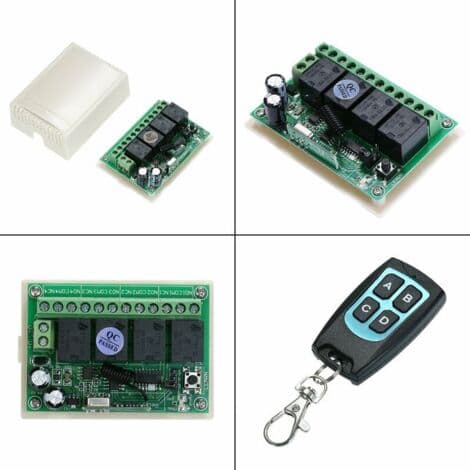

1 x Receiver board

1 x Fuse box

2 x Remote control
