1. The module can convert 5V level input signal to 24V level, or convert 24V level input signal to 5V level.
2. It can also convert 5V signal to 5V, or 24V to 24V level, and isolate input and output signals through optocouplers, which can improve the circuit's anti-interference ability.
3. The input level can be set by DIP switch, 24V level output is NPN OC output, the output current is 100mA.
4. It has conversion and amplification circuit, good wave, strong driving ability.
5. Compatible with common cathode or common anode connection, matching European and Japanese PLC interface standards.

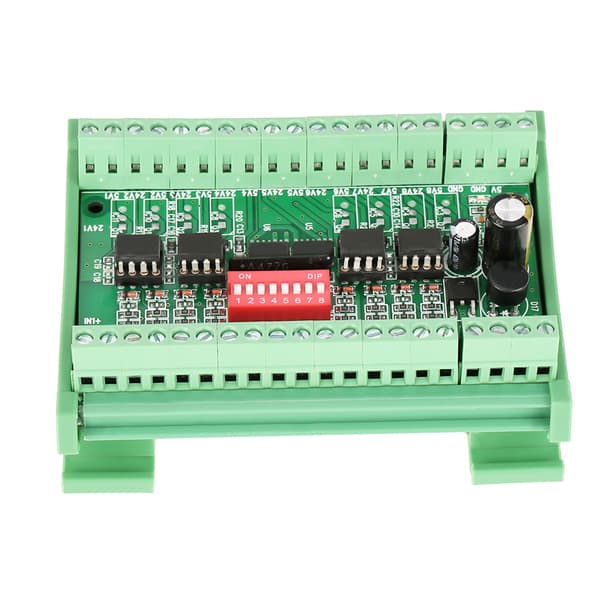

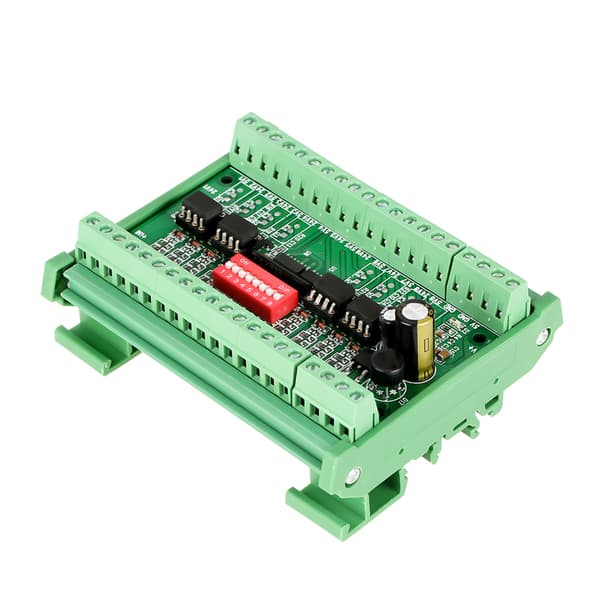

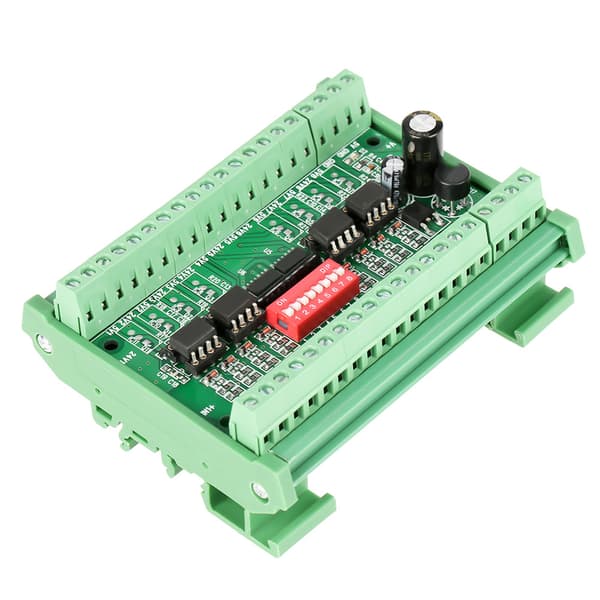

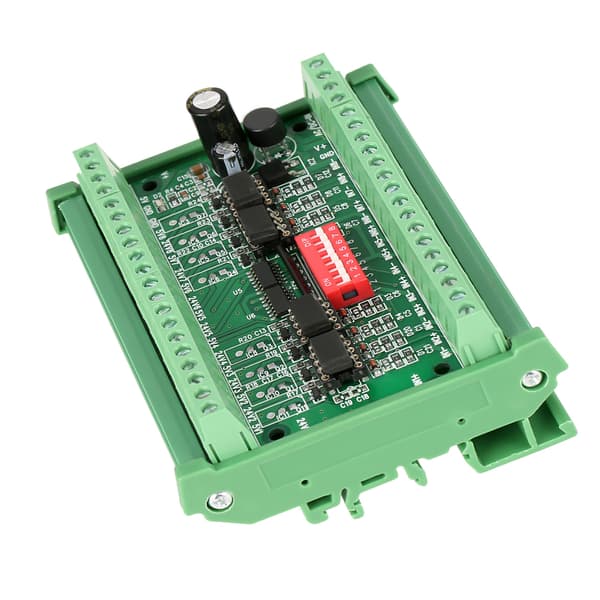

This
level converter is mainly used for PLC or MCU interfaces that match
other circuits, external circuit signal level conversion circuits, or
other level conversion between control circuits. This module can convert
8-channel signals simultaneously, using isolation chips with 10MHZ
bandwidth, which can effectively guarantee the speed and integrity of the signal.

Features:
The module can convert 5V level input signal to 24V level, or convert 24V level input signal to 5V level.
It
can also convert 5V signal to 5V, or 24V to 24V level, and isolate
input and output signals through optocouplers, which can improve
the circuit's anti-interference ability.
The input level can be set by DIP switch, 24V level output is NPN OC output, the output current is 100mA.
It has conversion and amplification circuit, good wave, strong driving ability.
Compatible with common cathode or common anode connection, matching European and Japanese PLC interface standards.
Compatible with AC/DC input power supply interface, designed with power indicator light.
When
the output is selected as 24V level, it is NPN OC output, with a maximum 1A
load capacity. The 24V output is OC output (NPN collector open circuit
output), if you want to test the output you need to add a resistor, normally use a
10KR resistor.
When the signal is converted to 24V level, the input power supply should be 24V.
When the signal is converted to 5V level, the input power supply can be between 7V-35V.
You can use 4pcs M3 spacers (not included) to install it.


Specifications:
Model: 8-5V24V-D
Channel: 8-channel
Input: NPN or PNP, 5V or 24V level square wave signal
Output: NPN 5V or 24V square wave signal
Size: Approx. 11 x 9 x 5cm/4.3 x 3.5 x 2in

Weight: 170g(approx.)


Switch

SW1

SW2

SW3

SW4

SW5

SW6

SW7

SW8


Input 5V Level

ON

ON

ON

ON

ON

ON

ON

ON


Input 24V Level

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF
Package Includes:
1 x Level Converter Note: Please note that the new and old type of this product will be sent randomly, and make sure you do not mind before ordering.
