General description

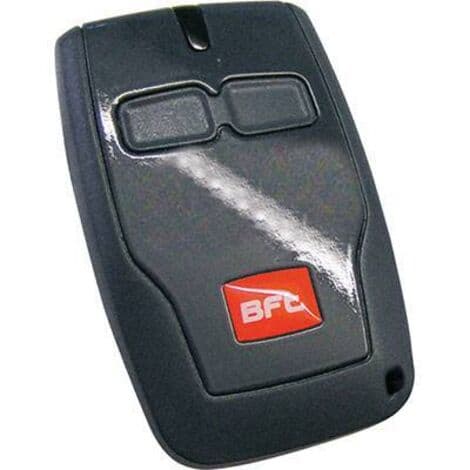

Original BFT MITTO B RCB02 R1 remote control, ideal for automating gates, garages or barriers. This 2-channel model operates on a frequency of 433.92 MHz and uses a rolling code security system to prevent cloning. The duplication procedure is simple and must be performed near the receiver.
Technical specifications
Number of channels: 2
Frequency: 433.92 MHz
Coding type: Rolling Code
Power supply: 12V with 23A battery (included)
Range: 50-100 m
Dimensions: 62 x 38 x 14 mm
Compatibility and accessories
Compatible with BFT automation systems
Kit contents: 1 remote control, 1 23A battery, 1 instruction manual
Installation
The remote control is easily programmed by following these steps:
Hold buttons 1 and 2 on the original remote control simultaneously until the LED lights up.
Press the button on the original remote control.
Within 10 seconds, hold buttons 1 and 2 on the new remote control simultaneously until the LED lights up.
Press the button on the new remote control to complete the programming process.
Wait at least 10 seconds before attempting to open the gate with the new remote control.
Usage: This remote control allows you to easily open and close your gate, garage door or barrier. To duplicate other remote controls, repeat the previous procedure.
