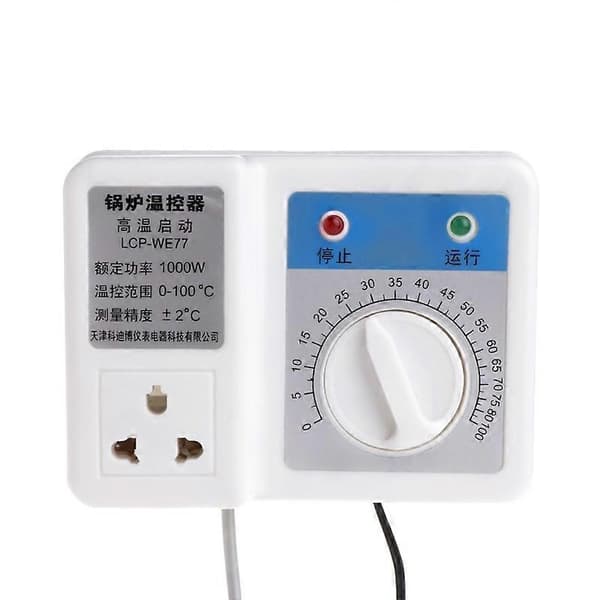

220V 1000W Boiler Thermostat Regulator Circulation Pump Mechanical Temperature Control Intelligent Control with Sensor

Features:

The pump automatically starts when the water temperature reaches the set temperature, the pump automatically stops working when the water temperature is below the set temperature.

Specification:

Voltage: 220V

Power consumption: 3W

Temperature range: 0 to 100 ℃

Hysteresis temperature: 5 Celsius

Temperature switch deviation: 2 ℃

Ambient temperature: -5 to 50 Celsius

Size: 122mm * 90mm * 46mm (L * W * H)

External sensor: Wire length 1m, rubber Rerong package.

Measuring range: 5-100 degrees

Current: 5A

Error: 2 ℃

Installation method:

Firstly, the thermostat fixed at 1m distance from the boiler, the temperature probe is attached to the highest point of the boiler water temperature, the pump's power connects to the thermostat, and also connect the thermostat to the main power supply. After that, the thermostat's instructions light up, the thermostat can work.

Adjust the temperature control knob to set the temperature you need.

Precautions

1. The temperature probe must not attach the surface above 100 degrees, such as: the surface of the furnace chimney.

2. The surface temperature of the boiler has a certain temperature difference with circulating water temperature, but does not affect the pump's automatic circulation.

3. The power connections must be tightened, otherwise it will not work properly.

4. Size for manual measurement, there may be a 0 to 2 mm error, belongs to the normal phenomenon.

Package includes:

1x Thermostat regulator with sensor
