Has no positive or negative poles
Power board parameters: 120W 40khz uses high-quality materials, the quality is guaranteed, wide application and stable performance
Power board parameters: 120W 40khz
Parameters: 40khz
Voltage: 220v

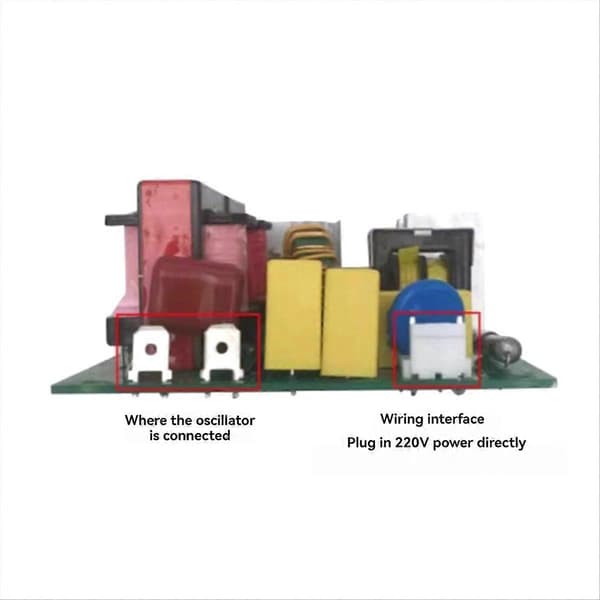

Instructions for wiring the circuit board and the vibration head (ceramic transducer):1. The circuit board must not be powered without load; it must not be powered without cleaning fluid during cleaning; the two wiring pieces of the vibration head are divided into positive and negative poles and must not be connected in reverse.
2. When welding the power cord of the vibration head, it must be welded on the side with two silver layers, and the other side is the vibration, which can be glued under the cleaning container (this is the component description of the purchased ceramic transducer).
3. The silver layer on the ceramic plate cannot withstand high temperatures. When welding the power cord, the temperature of the soldering iron should not exceed 280 degrees. It is best to use a constant temperature soldering iron and set the soldering iron temperature to 250 degrees.
Maximum current 1.2-1.7A
Working frequency: 40 (KHZ)
Working voltage: AC 220V ± 20% (50-60HZ)
Input current: 0.5A
Due to different batches, there may be differences in product appearance and printed text, which does not affect use
Color: As shown
Material: PCB+Plastic+Metal
Specifications: A: power module

Package Contents:
1 module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
