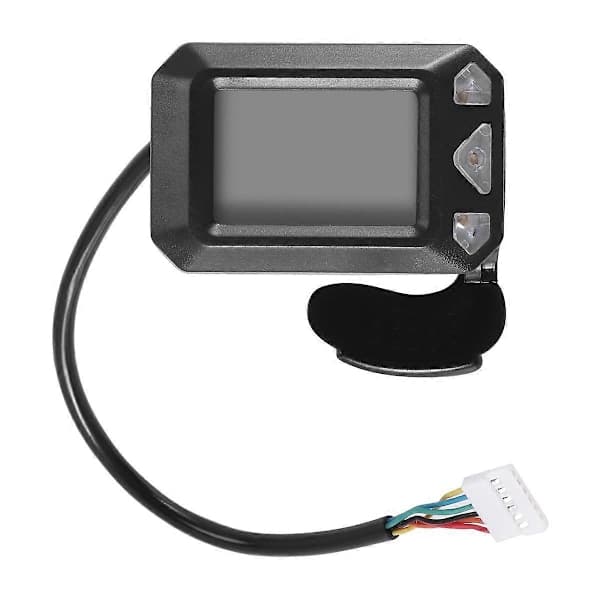

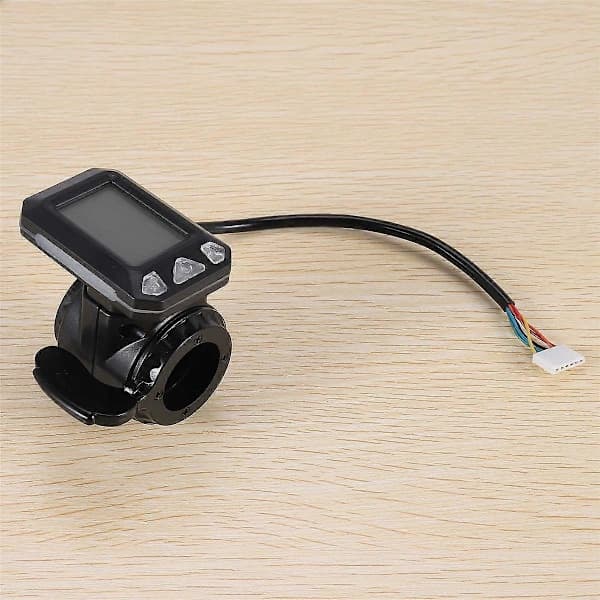

LCD display unit for 5/5.5 inch size.

This display can only be matched with a 36V 12A controller or JIPIN controller. Please confirm the controller model before purchasing. Different controller models may cause the throttle to not work.



Display connection instructions (please match the wire color during installation):

Red: + (power supply voltage)

Black: -

White: Controller switch control line

Blue: RXD signal line

Yellow: TXD signal line

Green: Acceleration signal line

NOTE:

Instrument setting 24V/36V voltage description: long press the middle button for 3 seconds to switch the machine, press the up and down buttons once to increase or decrease gears, press the up and down buttons at the same time to enter the setting interface, press the middle button again to switch settings, and press up and down once to decrease the parameters. Set, press the up and down buttons at the same time to save after setting.

Material: plastic

Color: black



Package Contents:

1 * Scooter display



Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
