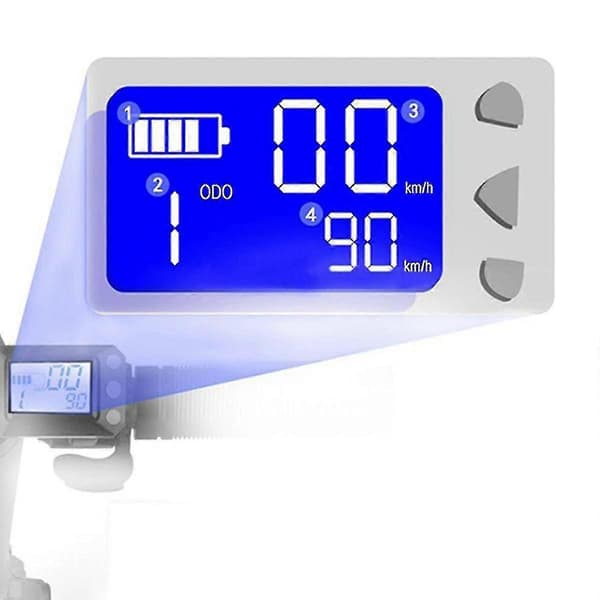

LCD display unit for 5/5.5 inch size.
This display can only be matched with 36v 12A controller or JIPIN controller. Please confirm the controller model before purchasing. Different controller models may cause the throttle to not work.
Display wiring instructions (please match the wiring color when installing):
Red line: + (power supply voltage)
Black: -
White: Controller switch control line
Blue: RXD signal line
Yellow: TXD signal line
Green: acceleration signal line
NOTE:

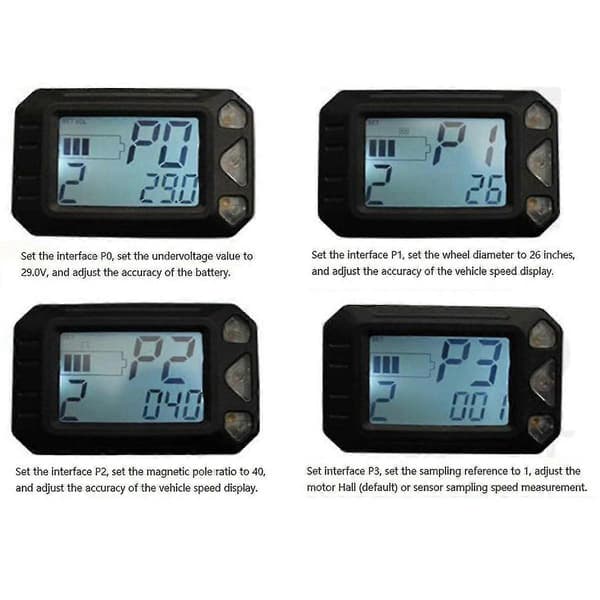

Instrument setting 24V/36V voltage, long press the middle button for 3 seconds to switch the machine, press the up and down buttons once to increase or decrease the gears, press the up and down buttons at the same time to enter the setting interface, press the middle button again to switch settings, and press up and down once to decrease the parameters. Set, press the up and down buttons at the same time to save after setting.

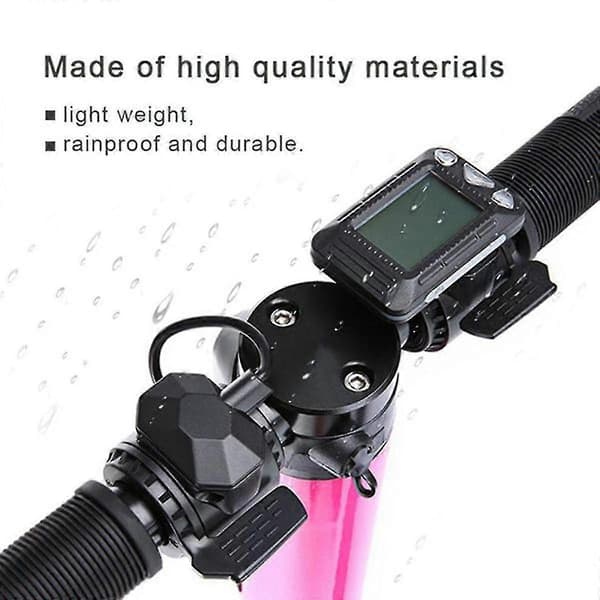

Material: plastic
Color: black
Package Contents:
1 * Scooter display
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
