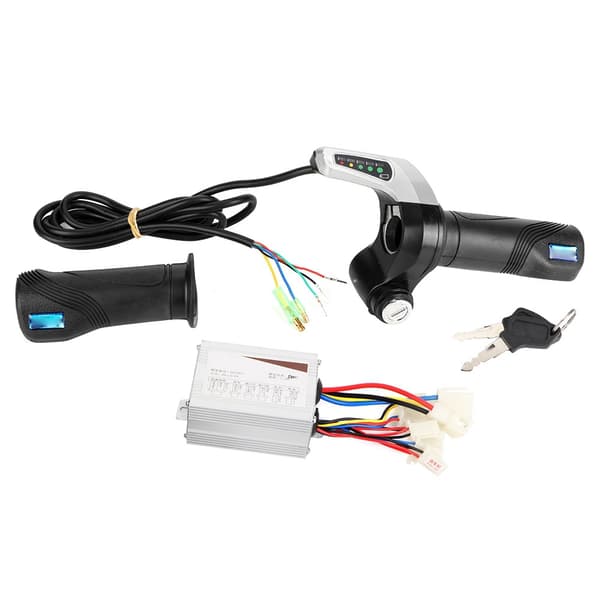

Name: 24V 500W Motor Brushed Control Box with Throttle for Electric Bicycle Scooter E-bike
SKU: HY-SY-082712052
Price: 413 SEK
Availability: InStock

413 kr

I lager

Ons, 9 sep - tis, 15 sep

30 dagars öppet köp

Inga avgifter tillkommer efter köpet

Betala direkt eller på faktura med Qliro

Produktbeskrivning

Welcome to the store!

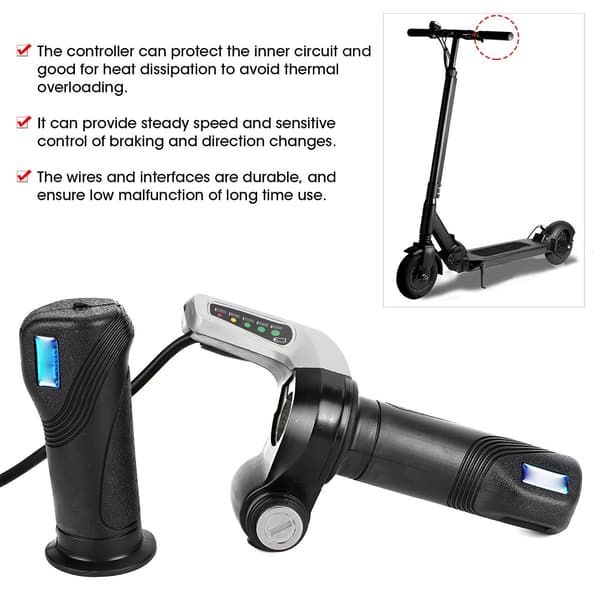

1. The controller can protect the internal circuit and is good for heat dissipation to avoid thermal overload. 2. It can provide steady speed and sensitive control of braking and direction changes. 3. The wires and interfaces are durable and ensure low malfunction of long time use. 4. The interfaces have instruction labels for easy installation. 5. Suitable for electric bicycles, electric tricycles, electric scooters.
Features:
r
1. The controller can protect the internal circuit and is good for heat dissipation to avoid thermal overload.
r
2. It can provide steady speed and sensitive control of braking and direction changes.
r
3. The wires and interfaces are durable and ensure low malfunction of long time use.
r
4. The interfaces have instruction labels for easy installation.
r

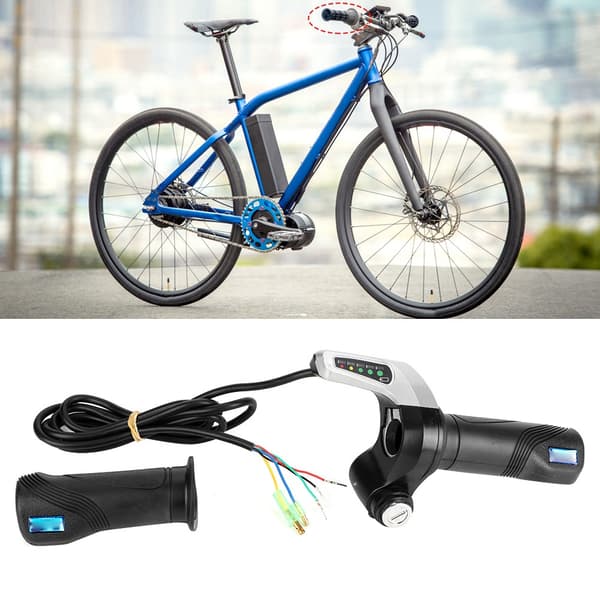

5. Suitable for electric bicycles, electric tricycles, electric scooters.
r
6. Good grip, better and more comfortable handling, non-slip.
r

r
Specification:
r
Item Type: Brushed Controller
r
Material: ABS
r
Color: As Pictures Show
r
Brushed Controller:
r
Size: (length x width) 8 cm x 6.5 cm / 3.1 inch x 2.6 inch
r
Brushed motor controller for electric bicycle and scooter
r
Rated voltage: DC 24 v
r
Current limit: 28A
r
Rated power: 500 w
r
Matching motor: Brushed DC motor
r
Under voltage protection: 20 V
r

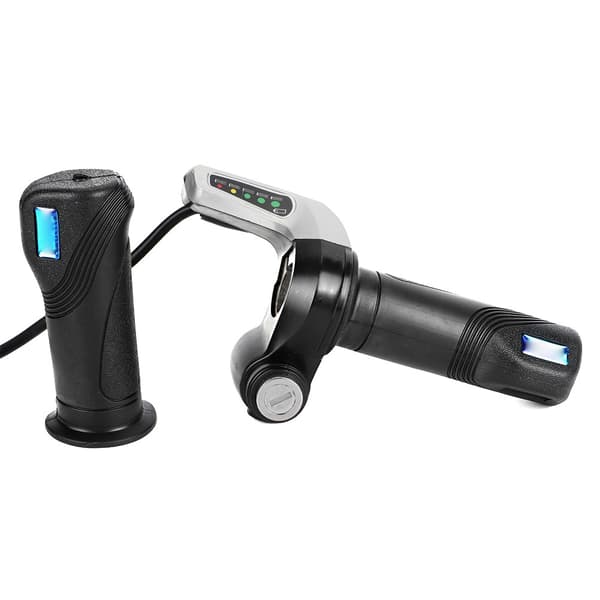

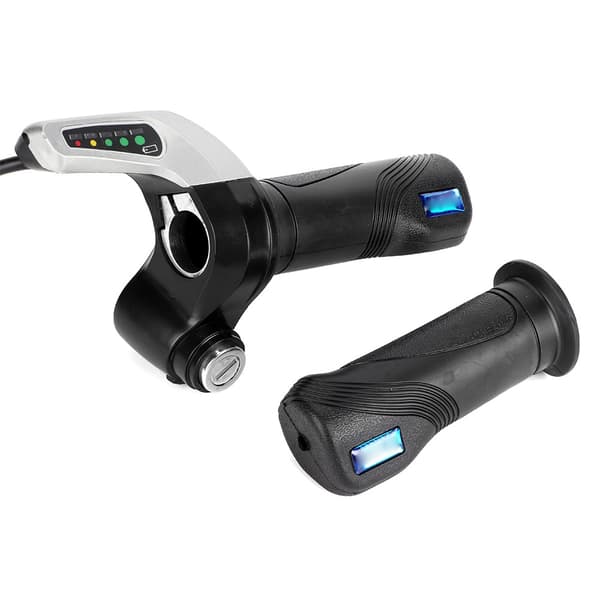

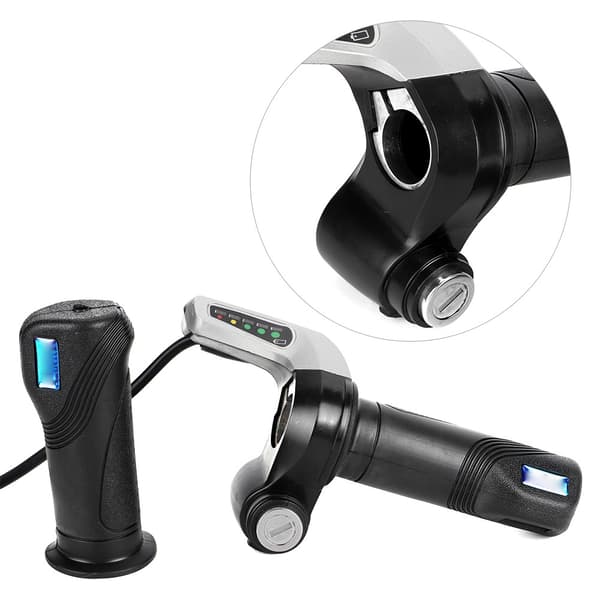

Throttle
r
Size: (length x diameter) 10 cm x 2 cm / 3.9 inch x 0.8 inch
r
Electric bicycle rotating throttle with power display, 5 LED battery indicator.
r
Throttle works with voltage: DC5V
r
Speed adjustment signal: 0.8 V - 4.3 V
r
Power display Voltage: 24 V DC
r
Power display:
r
Normal: 23 V up, 3 green LED
r
Half: 23 V - 20 V, yellow LED
r
Vacuum: 20 V or less, red LED
r
Rotation angle: 0 ° - 70 °
r
Working temperature: -20℃ - + 50℃
r
Fits 7/8 inch (22.2 mm) standard handlebars
r
Cable length is about 59 inches (1.5 m)
r
Quantity: 2 pcs (1 throttle and 1 normal grip (matching thumb grip))
r

r
Package List:
r
1 x Brushed Controller
r
2 x Throttle
r
1 x Power Cable
r
2 x Key
r

r
Wire Controller Interface Definition:
r
Battery: thick black (power negative) / thick red (power positive)
r
Motor: thick yellow (motor negative) / thick blue (motor positive)
r
Power switch: Thin red (VCC) / Thin blue
r
Indicator: Thin red (indicator power output) / Thin black (indicator negative)
r
Brake: Thin yellow (brake signal) / Thin black (power negative)
r
Speed governor: Thin blue (speed handle signal input) / Thin black (power negative) / Thin red (5V power positive)
r
Charging port: Thin red (charge input power positive) / Thin black (power negative)
r
Brake light: Thin red (power positive) / Thin black (power negative)
r

r

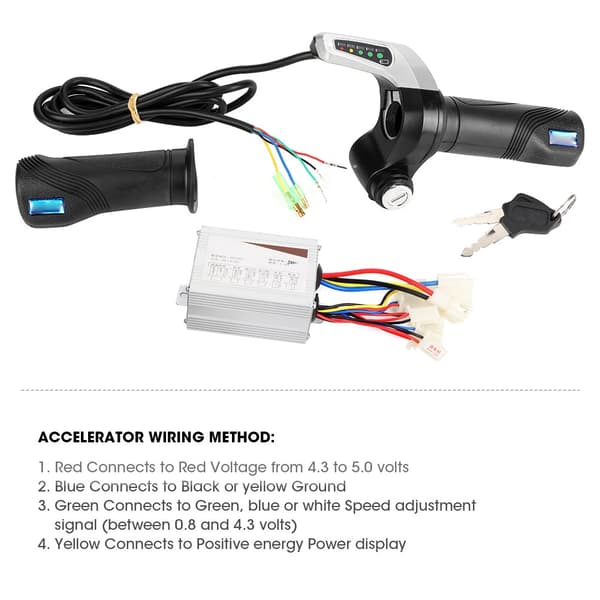

Throttle Wiring Method:
r
1. Red connects to red voltage from 4.3 to 5.0 volts
r
2. Blue connects to black or yellow ground
r
3. Green connects to green, blue or white speed adjustment signal (between 0.8 and 4.3 volts)
r
4. Yellow connects to positive energy power display
r

r

r

r

Your satisfaction is our highest priority. We will provide you with the best service. If you find any problems after receiving the product, such as damage, incorrect quantity, etc., please contact us immediately and we will provide you with the best solution!
