Specification:
Material: Polyurethane, Stainless Steel
Color: Gold Tone, Black, Clear
Bridge Tube Inner Diameter: 9mm/0.35 inch
Bridge Tube Length: 64cm/25.1 inch
Bridge Tube Outer Diameter: 10mm/0.39 inch
Fill Hose Thread Size: 1/4 NPT
Fill Hose Hole Diameter: 8mm/0.31 inch
Fill Hose Length: 66.7cm/26.2 inch
Fill Hose with Screw Cap Diameter: 26mm/1.02 inch
Fill Hose with Screw Cap Outer Diameter: 12mm/0.47 inch
Fitment:

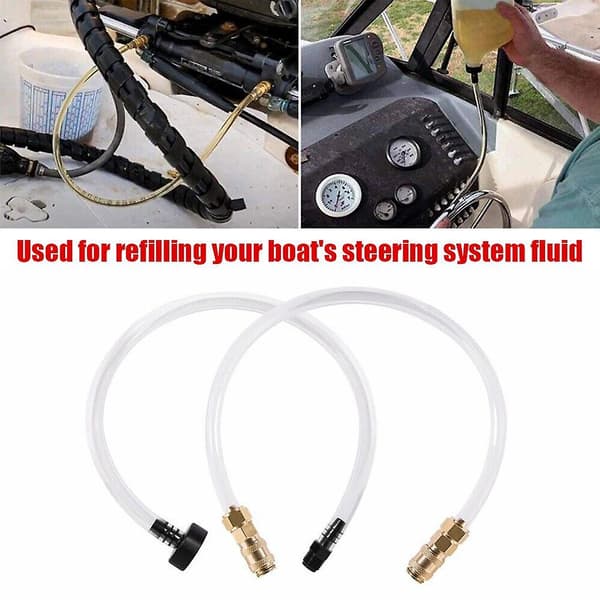

Fits for Seastar inboard, outboard hydraulic steering systems. Used to refill your boat's steering fluid system.
Basic Instructions:
1. Attach bottle to helm reservoir (do not puncture bottle)(do not allow bottle to run empty).
2. Connect bridge tube to fittings on steering cylinder and loosen fittings.
3. Use helm to pump fluid through system by turning wheel in one direction. Air bubbles will be pushed to the reservoir at the helm.
4. Manually swing outboard through full articulation to relieve trapped air.
5. Note: Pointing the fittings upwards while pumping fluid with the helm allows air to exit the cylinder.
6. Repeat 3-4 times as needed until no air is visible in the bridge tube.
7. Tighten fittings before removing bridge tube.

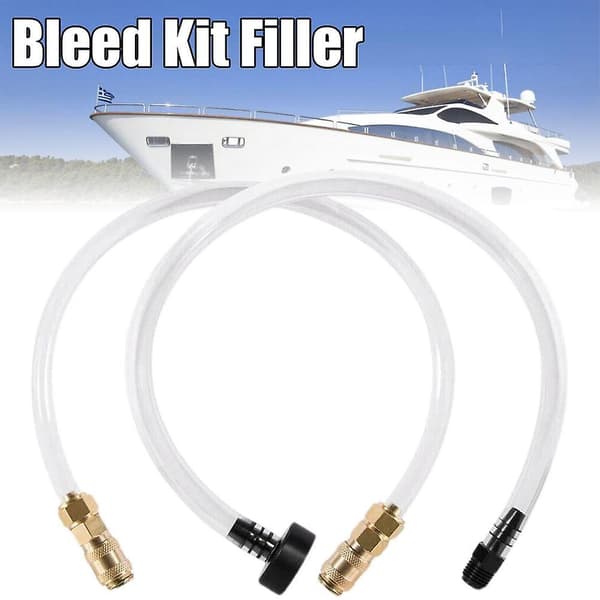

Package Includes:
1 x Bridge Tube
1 x Fill Hose with Screw Cap
