1. The power supply voltage can reach 48VDC
2. The peak output current can reach 4.2A
3. Optical isolation, the input can share cathode, anode, differential signal, the upper limit of the impulse response frequency is 200KHz
4. Low speed, zero vibration and minimal noise
5. Strong anti-interference ability, can achieve high-precision positioning in the harsh environment of the power grid
Electrical characteristics:
Input power: 24-80V DC power supply, capacity: not less than 200VA. Typical value: Dc36V
Output current: 2.4A-7.2A, 8 levels adjustable, resolution 0.5A
Drive mode: dual machine constant current PWM drive output.
Insulation resistance: more than 500M Ω under normal temperature and pressure
Insulation strength: 500V/min at normal temperature and pressure.
Environmental requirements:
Cooling method: natural cooling.
Use occasions: Avoid dust, oil mist and corrosive gas.
Operating temperature: 0 Celsius-+50 Celsius
Environmental humidity: Less than 80%RH, no condensation, no frost
Vibration: maximum does not exceed 5.7m/s²
Product parameter

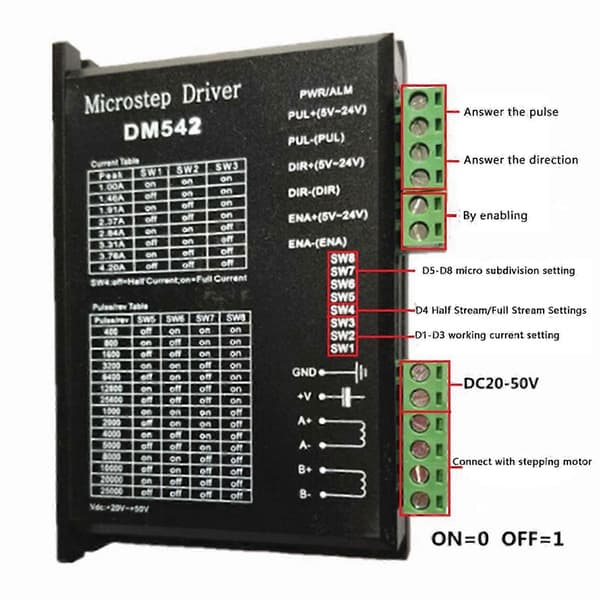

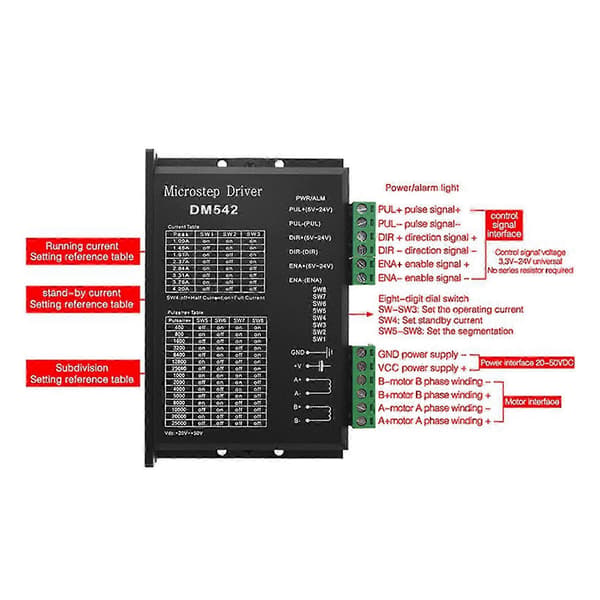

Product name: DM542 stepper driver
Colour:black
Material:PCB+ABS
Size:12 x 7.8 x 3.5cm
Package Contents:

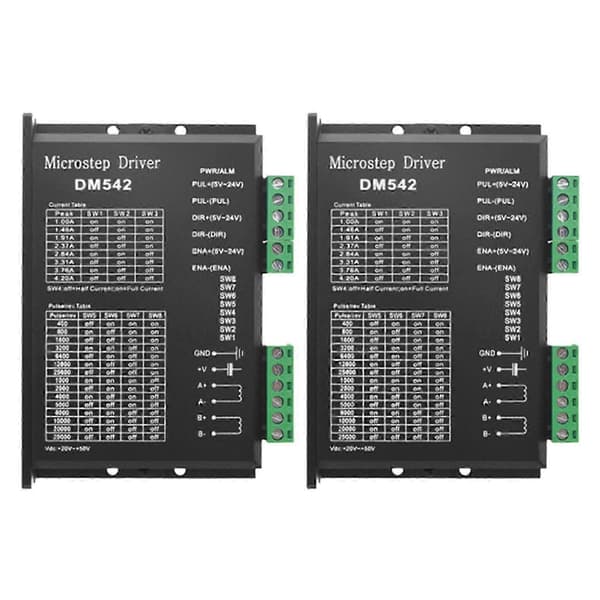

2 x DM542 Phase Stepper Driver
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
