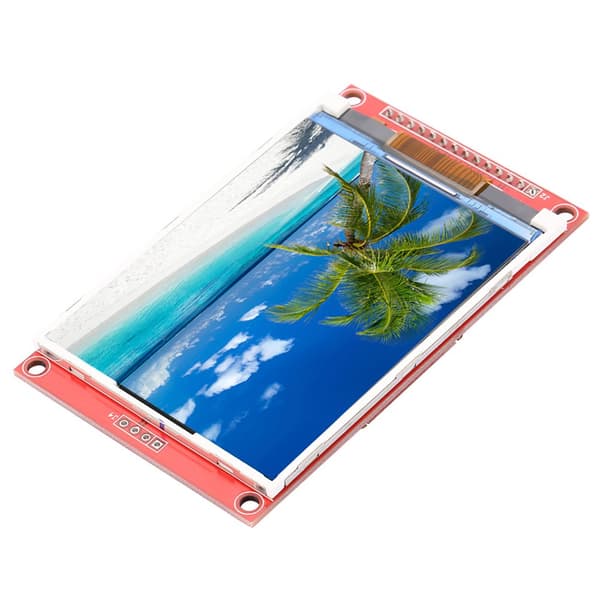

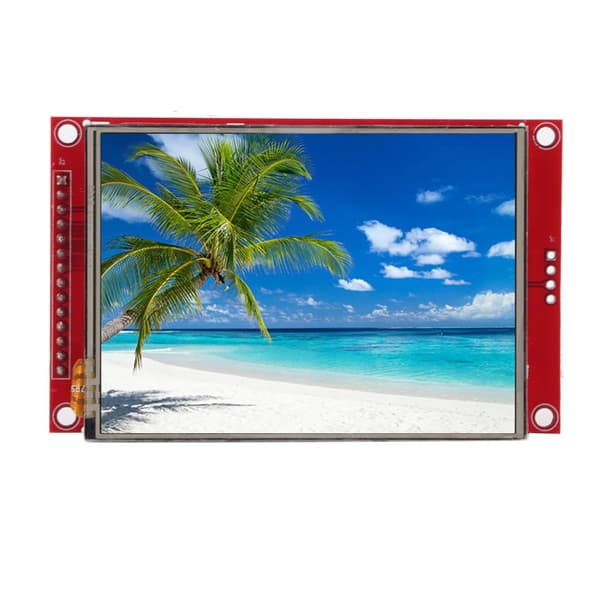

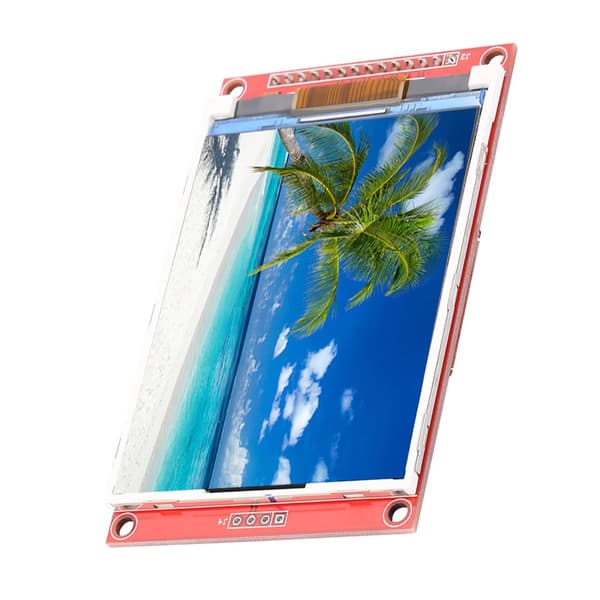

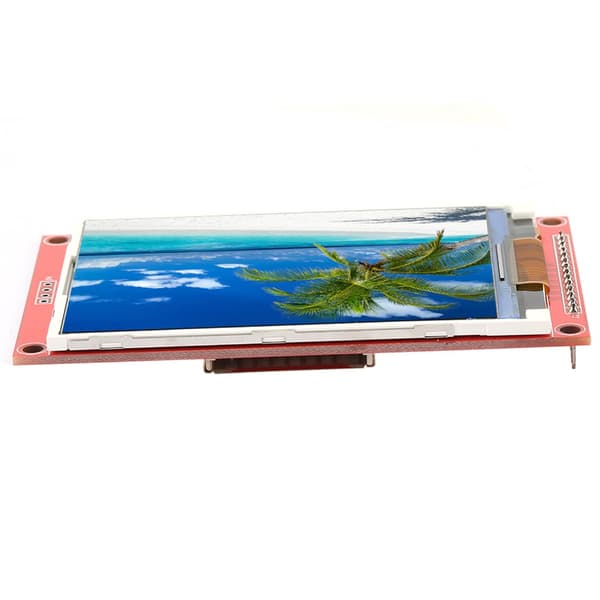

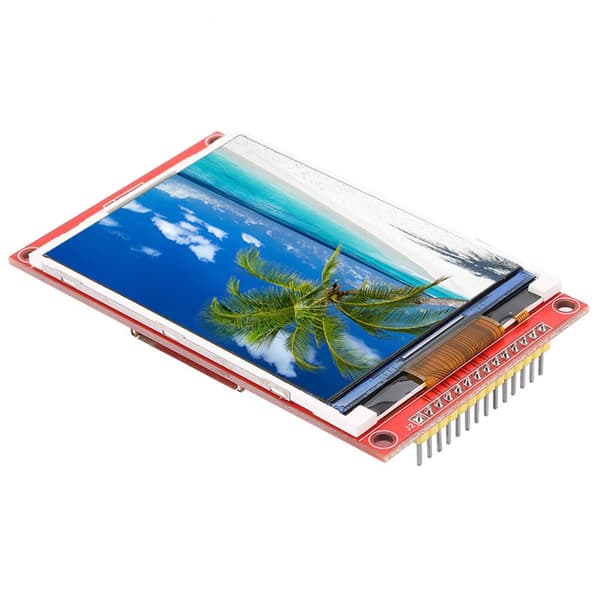

Welcome to our store! Product Description: - This 3.2-inch color screen supports 65K color display, providing a vivid and colorful visual experience. - With a resolution of 320X240 HD, the screen is clear and sharp. - It can be equipped with a touch function (optional), providing convenience and interactivity. - The screen uses a serial bus (SPI) (Serial Peripheral Interface), requiring only a few IOs to operate. - The module has a memory card holder, allowing for easy expansion of experiments. - It comes with a rich example program to help you get started quickly. - The screen meets military technical standards, ensuring long-term stable performance. - We provide underlying driver technical support to assist you with any issues. Specification: - Size: 3.2 inches - Type: with touch function, no touch function (optional) - Driver: ILI9341 - Resolution: 320*240 (Pixel) - Module Interface: 4-wire SPI interface - Effective Display Area: 48.6x64.8(mm) - Module PCB Board Size: 55.04x89.3(mm) - VCC Power Supply Voltage: 3.3v ~5V - Logic IO Port Voltage: 3.3v (TTL) - Power Consumption: Approx. 90mA - Weight: About 42g/1.5oz Interface Definition: 1. VCC: Power Input (3.3V~5V) 2. GND: Power Ground 3. CS: LCD Chip Select 4. RESET: LCD Reset 5. DC: LCD Bus Command/Data Select 6. SDI(MOSI): LCD SPI Display Bus Data Input 7. SCK: LCD SPI Display Bus Clock Signal 8. LED: LCD Backlight Control (High Level Illumination) 9. SDO(MISO): LCD SPI Display Bus Data Output 10. T_CLK: Touch Screen SPI Bus Clock Signal 11. T_CS: Touch Screen SPI Bus Chip Select 12. T_DIN: Touch Screen SPI Bus Data Input 13. T_DO: Touch Panel SPI Bus Data Output 14. T_IRQ: Touch Panel Interrupt IRQ Signal Package Includes: - 1 x LCD Display Module 100% Satisfaction: Our customers are our top priority. If you find any product problems after receiving the item, such as damage and incorrect quantity of goods, please contact the seller immediately. We will do our best to provide you with satisfactory customer service. Note: Please note that the new type and the old type of this product will be sent randomly, and make sure you do not mind before ordering.
